Elite/Eclat Parts Manual -- Section BB

ELITE/ECLAT PARTS MANUAL

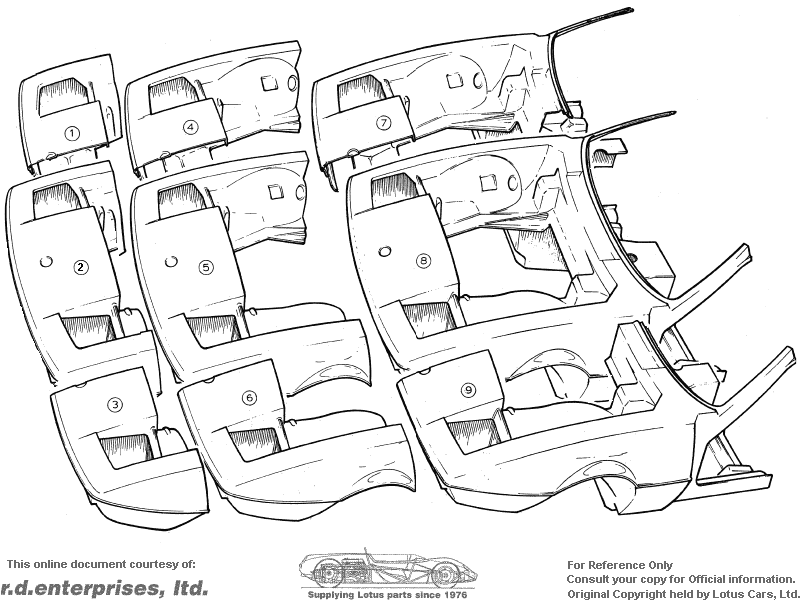

Section BB -- Body -- Fiberglass (Front)


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
													Elite S1, Stage 1 Bodies up to & inc. 1599A, 16? 1602A, 1604A to 1610A? 1612A to 1625A, 0515B,? 0237C, 0102K & 0109L,? Elite S1, Stage 2 Bodies were interspersed with S? 1 bodies & are identified? the spare wheel being accessible from inside the luggage compartment. Elite S1, Stage 3 Bodies 1626A on, 0516B on, 02? on, 0103K on & 0110L?
BB1	Half Short Nose, RH	A075B6045S	*				*	*	1				Stage 1 Body.
	Half Short Nose, RH	AX75B6100K	*				*	*	1				Stage 2 Body.
	Half Short Nose, RH	A075B6180K	*				*	*	1				Stage 3 Body.
	Half Short Nose, RH	A083B6202K			*	*	*	*		1
	Half Short Nose, RH	A083B6203K			*	*	*	*			1
	Half Short Nose, RH	A083B6204K			*	*	*	*				1
	Half Short Nose, RH	A076B6043K		*					1
BB 2	Short Nose	A075B6046S	*				*	*	1				Stage 1 Body.
	Short Nose	AX75B6101K	*				*	*	1				Stage 2 Body.
	Short Nose	A075B6182K	*				*	*	1				Stage 3 Body.
	Short Nose	A083B6205K			*	*	*	*		1
	Short Nose	A083B6206K			*	*	*	*			1
	Short Nose	A083B6207K			*	*	*	*				1
	Short Nose	A076B6044K		*			*	*	1
BB 3	Half Short Nose, LH	A075B6047S	*				*	*	1				Stage 1 Body.
	Half Short Nose, LH	AX75B6102K	*				*	*	1				Stage 2 Body.
	Half Short Nose, LH	A075B6181K	*				*	*	1				Stage 3 Body.
	Half Short Nose, LH	A083B6208K			*	*	*	*		1
	Half Short Nose, LH	A083B6209K			*	*	*	*			1
	Half Short Nose, LH	A083B6201K			*	*	*	*				1
	Half Short Nose, LH	A076B6045K		*			*	*	1
BB 4	Half Mid Nose, RH	A075B6048S	*				*	*	1				Stage 1 Body.
	Half Mid Nose, RH	AX75B6103K	*				*	*	1				Stage 2 Body.
	Half Mid Nose, RH	A075B6184K	*				*	*	1				Stage 3 Body.
	Half Mid Nose, RH	A083B6211K			*	*	*	*		1
	Half Mid Nose, RH	A083B6212K			*	*	*	*			1
	Half Mid Nose, RH	A083B6213K			*	*	*	*				1
	Half Mid Nose, RH	A076B6046K		*			*	*	1
BB 5	Mid Nose	A075B6049S	*				*	*	1				Stage 1 Body.
	Mid Nose	AX75B6104K	*				*	*	1				Stage 2 Body.
	Mid Nose	A075B6183K	*				*	*	1				Stage 3 Body.
	Mid Nose	A083B6214K			*	*	*	*		1
	Mid Nose	A083B6215K			*	*	*	*			1
	Mid Nose	A083B6216K			*	*	*	*				1
	Mid Nose	A076B6047K		*			*	*	1
BB 6	Half Mid Nose, LH	A075B6050S	*				*	*	1				Stage 1 Body.
	Half Mid Nose, LH	AX75B6105K	*				*	*	1				Stage 2 Body.
	Half Mid Nose, LH	A075B6185K	*				*	*	1				Stage 3 Body.
	Half Mid Nose, LH	A083B6217K			*	*	*	*		1
	Half Mid Nose, LH	A083B6218K			*	*	*	*			1
	Half Mid Nose, LH	A083B6219K			*	*	*	*				1
	Half Mid Nose, LH	A076B 6048K		*			*	*	1
BB7	Half Full Nose, RH	A075B6051S	*				*	*	1				Stage1 Body.
	Half Full Nose, RH	AX75B6106K	*				*	*	1				Stage 2 Body.
	Half Full Nose, RH	A075B6186K	*				*	*	1				Stage 3 Body.
	Half Full Nose, RH	A083B6220K			*	*	*	*		1
	Half Full Nose, RH	A083B6221K			*	*	*	*			1
	Half Full Nose, RH	A083B6222K			*	*	*	*				1
	Half Full Nose, RH	A076B6049K		*			*	*	1
BB 8	Full Nose	A075B6052S	*				*	*	1				Stage 1 Body.
	Full Nose	AX75B6108K	*				*	*	1				Stage 2 Body.
	Full Nose	A075B6188K	*				*	*	1				Stage 3 Body.
	Full Nose	A083B6223K			*	*	*	*		1
	Full Nose	A083B6224K			*	*	*	*			1
	Full Nose	A083B6225K			*	*	*	*				1
	Full Nose	A076B6050K		*			*	*	1
BB 9	Half Full Nose, LH	A075B6053S	*				*	*	1				Stage 1 Body.
	Half Full Nose, LH	AX75B6107K	*				*	*	1				Stage 2 Body.
	Half Full Nose, LH	A075B6187K	*				*	*	1				Stage 3 Body.
	Half Full Nose, LH	A083B6226K			*	*	*	*		1
	Half Full Nose, LH	A083B6227K			*	*	*	*			1
	Half Full Nose, LH	A083B6228K			*	*	*	*				1
	Half Full Nose, LH	A076B6051K		*			*	*	1
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
