Elite/Eclat Parts Manual -- Section BF

ELITE/ECLAT PARTS MANUAL

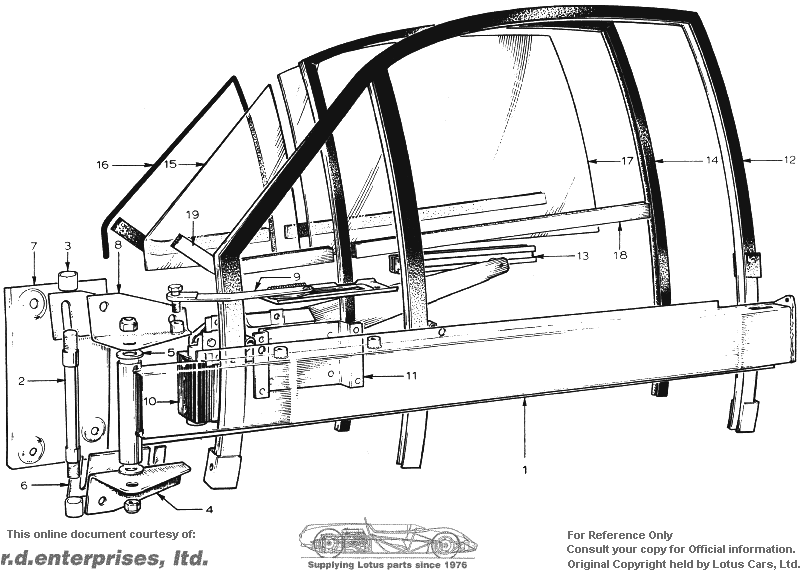

Section BF -- Body -- Door Glass & Hinges


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
BF 1	Door Beam Assy, LH	A076U0717K	*	*	*	*	*	*		1	1		Rep. E075U0309Z on Elite
	Door Beam Assy, RH	A076U0718K	*	*	*	*	*	*		1	1		Rep. E075U0310Z on Elite
	Door Beam Assy, LH	E075U0311WJ	*	*	*	*	*	*				1	Also Australia.
	Door Beam Assy, RH	E075U0312WC	*	*	*	*	*	*				1	Also Australla.
BF 2	Hinge Pin	A075U0279Z	*	*	*	*	*	*	2
	Nut	A075W3005ZG	*	*	*	*	*	*	2
BF 3	Bush, Hinge Pin	A075U0280ZB	*	*	*	*	*	*	4
BF 4	Hinge Assy, Lower, LH	F075U0239ZD	*	*	*	*	*	*	1
	Hinge Assy, Lower, RH	F075U0240ZJ	*	*	*	*	*	*	1
	Bolt	A075W2064ZH	*	*	*	*	*	*	8				Hinge Bracket to Body
	Nut	A075W3011ZD	*	*	*	*	*	*	8				Hinge Bracket to Body
	Washers	A075W4027ZD	*	*	*	*	*	*	36				Hinge Bracket to Body
BF 5	Spacer, 2.00 mm, Door Hinge/Brkt.	B075U0410ZL	*	*	*	*	*	*	12
	Spacer, 1.00 mmr Door Hinge/Brkt.	B075U0411ZE	*	*	*	*	*	*	4
	Spacer, 0.25 mm, Door Hinge/Brkt.	B075U0412ZK	*	*	*	*	*	*	4
BF 6	Shim, Door Hinge, 1.00 mm	A075U0329ZG	*	*	*	*	*	*	4
	Shim, Door Hinge, 4.00 mm	A075U0403ZE	*	*	*	*	*	*	4
	Shim, Abrasive, Door Hinge	A075U0407ZC	*	*	*	*	*	*	2
BF 7	Reinforcement Plate, LH	E075U0195ZJ	*	*	*	*	*	*	1
	Reinforcement Plate, RH	E075U0196ZC	*	*	*	*	*	*	1
BF 8	Door Hinge, Upper Bracket, LH	B075U0463WL	*	*	*	*	*	*	1
	Door Hinge, Upper Bracket, RH	B075U0464WE	*	*	*	*	*	*	1
BF 9	Check Strap Assy, LH	A075U0709WL	*	*	*	*	*	*	1
	Check Strap Assy, RH	A075U0708WF	*	*	*	*	*	*	1
	Bar, Strap/Hinge	A075U0459ZK	*	*	*	*	*	*	2
	Bolt, Strap/Door	A075W1027ZB	*	*	*	*	*	*	4
	Washer	A075W4046ZL	*	*	*	*	*	*	4
	Spacer	A075U0462ZC	*	*	*	*	*	*	4
BF 10	Window Motor, LH	A075M6091WG	*	*	*	*	*	*	1
	Window Motor, RH	A075M6090WB	*	*	*	*	*	*	1
	Set Screw, Ľ" UNF	A075W1018F	*	*	*	*	*	*	8
	Washer	A075W4065ZG	*	*	*	*	*	*	8
BF 11	Bracket, Window Motor	B075U0289ZG	*	*	*	*	*	*	2
	Bolt	A075W1008ZF	*	*	*	*	*	*	8
	Washer	A075W4013ZL	*	*	*	*	*	*	8
	Washer, Shakeproof	A075W4046ZL	*	*	*	*	*	*	8
BF 12	Window Frame Assy, LH	D075U0701W	*		*	*	*	*	1
	Window Frame Assy, LH	B076U0715ZH		*			*	*	1
	Window Frame Assy, RH	D075U0700W	*		*	*	*	*	1
	Window Frame Assyr RH	B076U0716ZB		*			*	*	1
	Tube, Frame Assy.	B076U1033K	*	*	*	*	*	*	10
	Spacer, Door to Frame	A075W4015ZK	*	*	*	*	*	*	AR
	Spacer, Beam to Frame	A075U0405Z	*		*	*	*	*	2
	Spacer, Beam to Frame	A076U1035F		*			*	*	2
	Set Screw, 6 x 40 mm	A075W1034ZD	*	*	*	*	*	*	10
	Washer, M6	A075W4013ZL	*	*	*	*	*	*	16
	Washer, Shakeproof	A075W4046ZL	*	*	*	*	*	*	16
BF 13	Lift Channel	A075U1106F	*	*	*	*	*	*	2
	Solbit, 10 mm	A075B6121V	*	*	*	*	*	*	1				2M long
	Solbit Primer	A075B6012ZJ	*	*	*	*	*	*	AR
BF 14	Silent Channel	E075U0330Z	*	*	*	*	*	*	2
BF 15	Qtr. Light Glass, RH, Clear	A075U0232ZD	*	*	*	*	*	*	1
	Qtr. Light Glass, LH, Clear	A075U0233ZJ	*	*	*	*	*	*	1
	Qtr. Light Glass, RH, Tinted	A075U0234ZC	*	*	*	*	*	*	1
	Qtr. Light Glass, LH, Tinted	A075Y0235ZH	*	*	*	*	*	*	1
BF 16	Solbit, 8mm	A075B6007Z	*	*	*	*	*	*	2				Rear Edge.
	Solbit, 10mm	A075B6006Z	*	*	*	*	*	*	2				Top & Fwd. Edges
	Solbit Primer	A075B6012ZJ	*	*	*	*	*	*	AR
BF 17	Door Glass, RH, Clear	A075U0228ZF	*	*	*	*	*	*	1
	Door Glass, LH, Clear	A075U0229ZL	*	*	*	*	*	*	1
	Door Glass, RH, Tinted	A075U0230ZE	*	*	*	*	*	*	1
	Door Glass, LH, Tinted	A075U0231ZK	*	*	*	*	*	*	1
BF 18	Wipe Seal, Door, 582 mm	A075U0414ZE	*	*	*	*	*	*	4
BF 19	Wipe Seal, Door, 380 mm	A075U0415ZK	*	*	*	*	*	*	4
	Clip	A075W6054ZA	*	*	*	*	*	*	AR				Seal to Finisher.
