Elite/Eclat Parts Manual -- Section BG

ELITE/ECLAT PARTS MANUAL

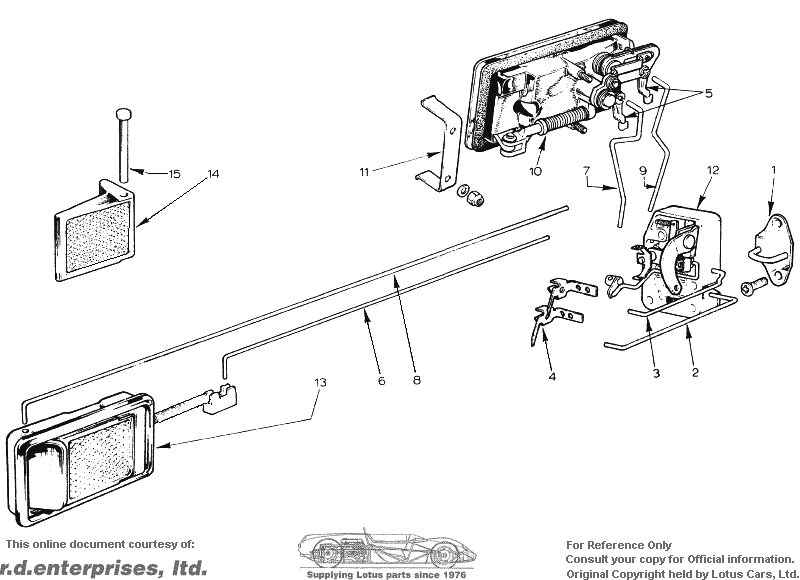

Section BG -- Body -- Door Latches


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
	The following part numbers are applicable to unit numbers as indlcated in the remarks column.									Up to 1061A & I063, ? 1069A, 1071A, 1073 ? 1076A, 1078A to 1085A ? 1089A, I091A, 1093A, ? inc. Up to 0491B, inc. Up to 0189C, inc. Up to 0405D & 0408D, ? 0416D, 0418D, 0419D, ? to 0429D inc. Up to 0268E, 0270E to ? 0279E, 0280E, 0282E t? 0306E, inc. Up to 0138F & 0140F, *? Inc.
BG 1	Striker Plate	A075U6022ZK	*	*			*	*	2
	Allen Bolt	A075WT003ZG	*	*			*	*	4
	Shim, Abrasive	A075U0656ZJ	*	*			*	*	2
	Tapping Plate	A075U0333ZJ	*	*			*	*	2
BG 2	Rod, Latch to Adjuster Clip	A075U0441ZH	*	*			*	*	2
BG 3	Rod, Lock to Adiuster Clip	AO75UO442ZB	*	*			*	*	2
BG 4	Adjuster Clip	A075W6064ZA	*	*			*	*	4
BG 5	Bush & Clip Assy.	AO75U6033ZK	*	*
BG 6	Rod, Interior Release to Cllp, LH	A075U0437ZK	*	*			*	*	1
	Rod, Interior Release to Clip, RH	A075U0438ZD	*	*			*	*	1
BG 7	Rod, Lock to Exterior Lock	B075U0261ZK	*	*			*	*	2
BG 8	Rod, Interior Lock to Clip, LH	B075U0439ZB	*	*			*	*	1
	Rod, Interior Lock to Cllp, RH	B075U0440ZG	*	*			*	*	1
BG 9	Rod, Exterior Release to Latch, LH	B075UO263ZJ	*	*			*	*	1
	Rod, Exterior Release to Latch, RH	B075U0262ZD	*	*			*	*	1
BG l0	Door Handle, Exterior, LH	A075U6019ZF	*	*			*	*	1
	Door Handle, Exterior, RH	A075U6018ZA	*	*			*	*	1
BG 11	Mounting Bracket	B075U0259ZL	*	*			*	*	2
	Nut	A075W3000ZD	*	*			*	*	4
BG 12	Door Lock, LH	A075U6021ZE	*	*			*	*	1
	Surround	A075U0379ZD	*	*			*	*	1
	Door Lock, RH	A075U6020ZL	*	*			*	*	1
	Surround	A075U0380ZJ	*	*			*	*	1
	Allen Screw	A075WT000ZC	*	*			*	*	8
	Adjuster Cip	B075U0260ZE	*	*			*	*	2	"U" Clip.
	Bush, Adjuster Clip	A075W6042ZG	*	*			*	*	2
BG 13	Door Handle, Interior, LH	A075U1075KK	*	*			*	*	1
	Door Handle, Interior, RH	A075U1076KD	*	*			*	*	1
	Bezel, Interior Door Handle	X054B6059ZC	*	*			*	*	2
BG 14	Operating Flap, Door Handle	A036B6256ZC	*	*			*	*	2
	Pivot Pin, Door Handle	A036B6257ZH	*	*			*	*	2
	Tapping Plate, Door Handle	A075U0461ZJ	*	*			*	*	2
	Screw	A075W5059ZG	*	*			*	*	6
	The following part numbers are applicable to unit numbers as indicated in the remarks column.									From 1062A, 1064A to 1 ? 1O70A, 1092A, 1077A, ? 1088A, 1090A, 1092A & ? on, inc. From0492B on, inc. From0190C on, inc. From0406D, 0407D, 04 ? 0414D, 0417D, 0420D t? 0430D on, inc. From 0269E, 0277E, 027? 0281 E, 0307E, on, inc.
BG 1	Striker Plate	A075U6022ZK	*	*	*	*	*	*	2	From0139F & 0142 on, inc.
	Allen Bolt	A075WT003ZG	*	*	*	*	*	*	4
	Shim, Abrasive	A075U0656ZJ	*	*	*	*	*	*	2
	Tapping Plate	A075U0333ZJ	*	*	*	*	*	*	2
BG 5	Bush and Cllp Assy.	A075U6033ZK	*	*	*	*	*	*	2
BG 7	Rod, Lock to Exterior Lock	B075UO261ZK	*	*	*	*	*	*	2
BG 9	Rod, Exterior Release to Latch, LH	A075U1119F	*	*	*	*	*	*	1
	Rod, Exterior Release to Latch, RH	A075Ul120F	*	*	*	*	*	*	1
Not Illus.	Rod, interior Lock to Lock, LH	A075U1114F	*	*	*	*	*	*	1
Not Illus.	Rod, interior Lock to Lock, RH	A075U1115F	*	*	*	*	*	*	1
Not Illus.	Rod, Interior Release to Lock, LH	A075U1117F	*	*	*	*	*	*	1
Not Illus.	Rod, Interior Release to Lock, RH	A075U1118F	*	*	*	*	*	*	1
Not Illus.	Clip, Push-on	A075W6022F	*	*	*	*	*	*	2
BG 10	Door Handle, Exterior, LH	A075U6019ZF	*	*	*	*	*	*	1	Black & Chrome.
	Door Handle, Exterior, LH	B075U6019F	*	*	*	*	*	*	1	Black.
	Door Handle, Exterior, RH	A075U6018ZA	*	*	*	*	*	*	1	Black & Chrome.
	Door Handle, Exterior, RH	B075U6018F	*	*	*	*	*	*	1	Black.
BG 11	Mounting Bracket	B075U0259ZL	*	*	*	*	*	*	2
	Nut	A075W3000ZD	*	*	*	*	*	*	4
BG 12	Door Lock, LH	A075U6021ZE	*	*	*	*	*	*	1
	Surround	A075U0379ZD	*		*		*	*	1
	Door Lock, RH	A075U6020ZL	*	*	*	*	*	*	1
	Surround	A075U0380ZJ	*		*		*	*	1
	Allen Screw	A075W7000ZC	*	*	*	*	*	*	8
	Adjuster Clip	B075U0260ZE	*	*	*	*	*	*	2	"U" Clip.
	Bush, Adjuster Clip	A075W6042ZG	*	*	*	*	*	*	2
Not Illus.	Trunnion, Door Lock Release Lever	A075Ull16F	*	*	*	*	*	*	2
Not Illus.	Bracket, Door Lock Linkage	A075UI121F	*	*	*	*	*	*	2
Not Illus.	Clip, Push-on	A075W6022F	*	*	*	*	*	*	2
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
