ELITE/ECLAT PARTS MANUAL

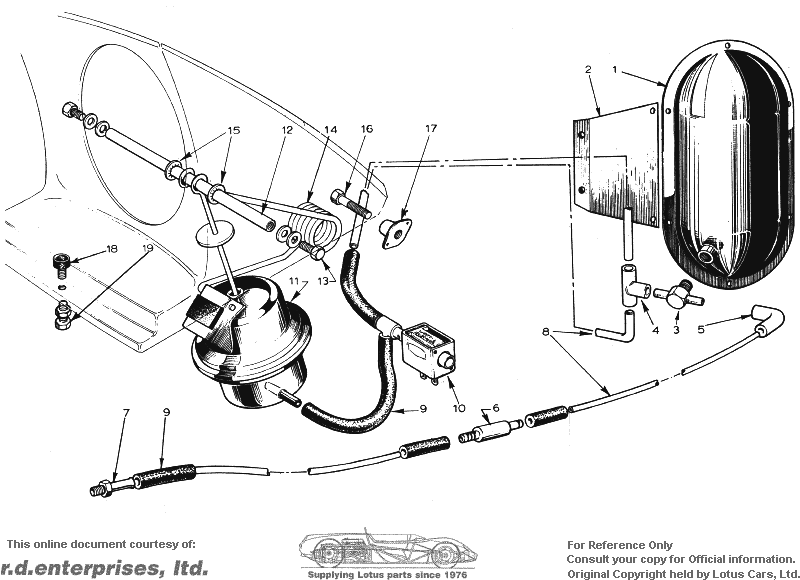

Section BJ -- Body -- Vacuum Headlights


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
BJ 1	Vacuum Tank	A075U0187ZH	*	*			*	*	1**
BJ 2	Mounting Bracket	A075U0186ZC	*	*			*	*	1**
	Screw	A075W1027ZB	*	*			*	*	2**
	Washer	A075W4046ZL	*	*			*	*	2**
BJ 3	Adaptor Vacuum Tank	A075U0416ZD	*	*			*	*	1**	Up to 0745A, 0747A to 0 ? 0796A to 0847A, 0853A ? 0856A, inc. Up to 0455B, 0457B to 0 *? inc. Up to 0155C, inc.
	Adaptor, Vacuum Tank	A075P0109ZB	*	*			*	*	1**	Nos. 0746A, 0T/3A to 0 ? 0848A to 0850A & 0857A ? inc. Nos. 0456B & 0467B on, ? Nos. 0116C on, inc. Nos. 0147D, 0170D & 0 ? on. Nos. 0114E on. Nos. 0105F on. Nos. 0100K, 0100P & 01 *? on.
BJ 4	Tee Piece	A036L6017Z	*	*			*	*	1**
BJ 5	Elbow	A036J0135Z	*	*			*	*	1**
BJ 6	Valve, Non-Return	A075U0561ZF	*	*			*	*	1**
BJ 7	Union	A026E0367ZJ	*	*			*	*	1**	** = Double Quantities on air conditioned cars.
BJ 8	Tubing	A026B0130ZC	*	*			*	*	AR
BJ 9	Connection Tube	A036B6181ZL	*	*			*	*	AR
BJ 10	Solenoid Valve	A075M6230F	*	*			*	*	2	Eclat 522, 523, 524.
	Solenoid Valve	A075M6230F	*	*			*	*	1	520 & 521.
BJ 11	Vacuum Cylinder	A075U0182ZF	*	*			*	*	2
BJ 12	Actuating Bar	D075U0181ZA	*	*			*	*	2
BJ 13	Bolt	A075W1026ZH	*	*			*	*	4
	Washer	A075W4013Z	*	*			*	*	8
BJ 14	Spring	X036B0118ZD	*	*			*	*	2
BJ 15	Retainer Spring	A075W6017ZC	*	*			*	*	4
BJ 16	Bolt	A075W1082Z	*	*			*	*	4
	Washer	A075W4013ZL	*	*			*	*	8
BJ 17	Bobbin, Headlamp Pod Pivot Bolt	A075B2205ZL	*	*			*	*	4
	Backing Plate	A075B2206ZE	*	*			*	*	4
	Stop Rubber	X046B6113Z	*	*			*	*	2
BJ 19	Bolt	X026E6042ZK	*	*			*	*	2
	Nut	A026E6012Z	*	*			*	*	2
	Motor, Headlamp	A079M6047F			*	*	*	*	2
	Motor Support Bracket	A083U1234K			*	*	*	*	2
	Rotary Link	C079M4055K			*	*	*	*	2
	Set Screw, Rotary Link Rod End M6 x 30	A075W3038F			*	*	*	*	2
	Nut, Nyloc, M6	A075W3009ZE			*	*	*	*	2
	Rod End	AO79U6031F			*	*	*	*	2
	Locknut, Ľ UNF, Rod End	A075W3038F			*	*	*	*	2
	Connecting Link	A083U1245F			*	*	*	*	2
	Washer, 6mm x 12	A075W4013ZL			*	*	*	*	4
	Washer, 6mm x 25	A075W4017ZJ			*	*	*	*	2
	Washer, Nylon	AO36BO433ZA			*	*	*	*	2
	Washer, 3,/16" x 1"	A075W4004ZK			*	*	*	*	2
	Nyloc Nut, M5	A075W3003ZL			*	*	*	*	2
	Compression Spring	A083U6108F			*	*	*	*	2
	Grommet, Nylon (Link/Actuating Bar)	AO76W6160F			*	*	*	*	2
	Actuating Bar (Pod)	A083U1243F			*	*	*	*	2
	Set Screw, Thin Head (Bar/Pod)	A075W1082Z			*	*	*	*	2
	Washer, 6mm x 12	A075W4013ZL			*	*	*	*	AR
	Screw, S/T, No. 6 x ˝"	A075W6016ZA			*	*	*	*	2
	Nut, Spire	A075W6014Z			*	*	*	*	2
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
