Elite/Eclat Parts Manual -- Section BK

ELITE/ECLAT PARTS MANUAL

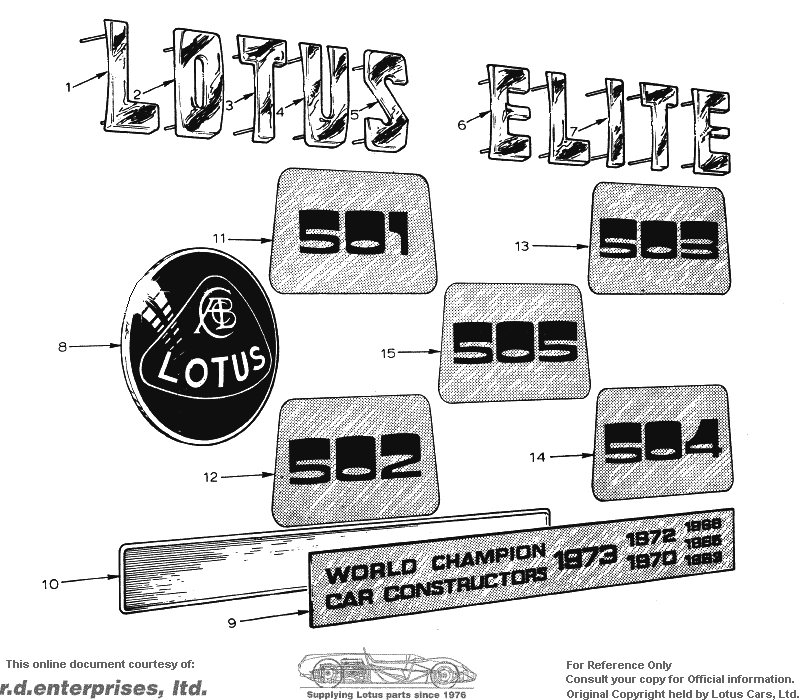

Section BK -- Body -- Badges


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
BK 1	Letter 'L'	X036B0544ZH	*	*	*		*	*	2		1 on Eclat, 1 on S.2.
BK 2	Letter 'O'	X036B0545ZB	*	*			*	*	2		1 on Eclat.
BK 3	Letter 'T'	X036B0546ZG	*	*	*		*	*	2		1 on Eclat, 1 on S.2.
BK 4	Letter 'U'	X036B0547ZA	*	*			*	*	1
BK 5	Letter 'S'	X036B0548ZF	*	*			*	*	1
BK 6	Letter 'E'	A075U0377ZE	*		*		*	*	2
BK 7	Letter 'I'	A075U0378ZK	*	*	*		*	*	1
	Wing Clips	A075W6056ZL	*	*	*		*	*	AR
BK 8	Black 'Lotus' Nose Badge	B036B0269F	*	*	*	*	*	*	1
	Rawlnut	B075W6029Z	*	*	*	*	*	*	2
BK 9	'World Champion' Badge, 1973	A050U0579ZH	*	*			*	*	1
	'World Champion' Badge, No Dates	A079U4518F	*	*			*	*	1
	'World Champion' Badge, 1978	A075U1160F	*	*			*	*	1
Not Illus.	'World Champion' Badge, BC Post	A083U1198F			*	*	*	*	2
	Wing Clips	A075W6056ZL	*	*	*	*	*	*	AR
	Double Sided Tape	A074B6010VF	*	*	*	*	*	*	AR
Not Illus.	Badge, 'Automatic'	A075U6081F	*	*	*	*	*	*	1
	Badge, 'Automatic'	A083U1197F			*			*	1
	Badge Base (Auto & Elite 2.2)	A036B6342ZF			*		*	*	1
	Name Badge, 'Eclat'	A076U1079F		*			*	*	1		Black.
	Name Badge, 'Eclat'	A076U1129F		*			*	*	1		White.
	Name Badge, 'Eclat'	A076U1156F		*			*	*	1		Gold.
	Badge, 'Sprint'	A076U1123F		*			*	*		1	White.
	Badge, 'Sprint'	A076U1124F		*			*	*		1	Black.
	Badge, 'Sprint'	A076U1157F		*			*	*		1	Gold.
	Badge, Sprint, 'Union Flag'	A076U1125F		*			*	*		1
	Decal Front Wing, RH	A076Ul130K		*			*	*		1	Sprint only.
	Decal Front Wing, LH	A076Ul131K		*			*	*		1	Sprint only.
	Decal Door	A076U1132K		*			*	*		2	Sprint only.
	Decal Rear Wing, Fwd, RH	A076U1134K		*			*	*		1	Sprint only.
	Decal Rear Wing, Fwd, LH	A076U1133K		*			*	*		1	Sprint only.
	Decal Rear Wing, Rear, RH	A076U1136K		*			*	*		1	Sprint only.
	Decal Rear Wing, Rear, LH	A076U1135K		*			*	*		1	Sprint only.
	Decal Nose	A076U1137K		*			*	*		1	Sprint only.
	Decal Bonnet	A076U1138K		*			*	*		1	Sprint only.
	Decal Strip - 50mm	A076U6019F		*			*	*		1	5.2m Length, Bulk.
	Decal Strip- 190mm	A076U6020F		*			*	*		1	1.8m Length, Bulk.
BK 11	Badge, Insert, '501'	B075UO682F	*				*	*	AR
BK 12	Badge, Insert, '502'	B075U0683F	*				*	*	AR
BK 13	Badge, Insert, '503'	B075U0684F	*				*	*	AR
BK 14	Badge, Insert, '504'	B075U0685F	*				*	*	AR
	Badge, Insert, '520'	B076U1084F		*			*	*	AR
	Badge, Insert, '521'	B076U1085F		*			*	*	AR
	Badge, Insert, '522'	B076U1086F		*			*	*	AR
	Badge, Insert, '523'	B076U1087F		*			*	*	AR
	Badge, Insert, '524'	BO76U1088F		*			*	*	AR
	Badge, Insert, 'S'	X050B0285ZD		*			*	*		AR	Sprint Only.
	Badge Base	A036B6188ZB	*	*			*	*	2
	Fixing Clips	A075W6056ZL	*	*			*	*	AR
	Twin Pin Stripe, Gold	A079U6034V	*	*			*	*	1		12.5m Length
	Twin Pin Stripe, Black	A079U6035V	*	*			*	*	1		12.5m Length
	Badge, Insert, Elite 2.2	A083U1196F			*		*	*	1
	Badge, 'S2'	X054B1425ZH			*		*	*	2
	Badge, Facia, 'Elite 2.2'	A083UI207F			*		*	*	1
	Badge, Facia, 'Eclat 2.2'	A084U1206F			*		*	*	1
	Decal, 'Lotus Eclat 2.2'	A084U1188F				*	*	*	1		Black.
	Decal, 'Lotus Eclat 2.2'	A084U1189F				*	*	*	1		White.
	Decal, 'Lotus Eclat 2.2'	A084U1190E				*	*	*	1		Gold.
	Decal, Nose, 'Eclat 2.2'	A084U1191F				*	*	*	1		Black.
	Decal, Nose, 'Eclat 2.2'	A084Ul192F				*	*	*	1		White.
	Decal, Nose, 'Eclat 2.2'	A084Ul193F				*	*	*	1		Gold.
	Decal, Rear Qtr, 'Eclat 2.2'	A084U1201F				*	*	*	2		Black.
	Decal, Rear Qtr, 'Eclat 2.2'	A084U1202F				*	*	*	2		White.
	Decal, Rear Qtr, 'Eclat 2.2'	A084U1203F				*	*	*	2		Gold.
	Decal, 'S2'	A079U4539F				*	*	*	2		Black.
	Decal, 'S2'	A079U4540F				*	*	*	2		White.
	Decal, 'S2'	A079U4564F				*	*	*	2		Gold.
	Side Stripe, 1.90M	A083U6096V			*	*	*	*	2		Black.
	Side Stripe, 1.90M	A083U6097V			*	*	*	*	2		White.
	Side Stripe, 1.90M	A083U6098V			*	*	*	*	2		Gold.
	Pin Stripes	A079U6034V			*	*	*	*	1		12.5m Length, Gold.
	Pin Stripes	A079U6035V			*	*	*	*	1		12.5m Length, Black.
