Elite/Eclat Parts Manual -- Section JC

ELITE/ECLAT PARTS MANUAL

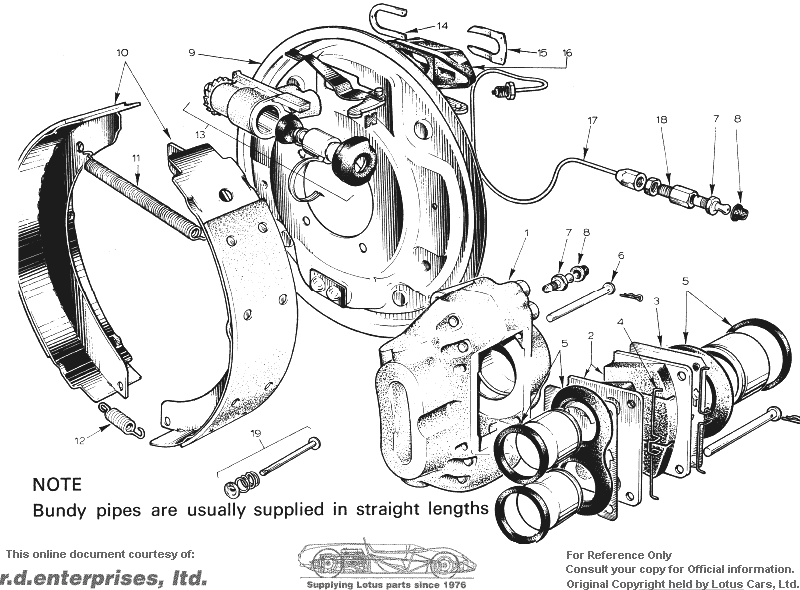

Section JC -- Brakes -- Front Calipers & Rear Drums


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
JC 1	Caliper Assembly, LH	B075J0765S	*	*	*	*	*	*	1		Use with Alloy Wheels
	Caliper Assembly, RH	B075J0766S	*	*	*	*	*	*	1		Use with Alloy Wheels
	Bolt, Caliper to Mounting	A075J0299Z	*	*	*	*	*	*	4		Use with Alloy Wheels
	Caliper Assembly, LH	A075J6023F		*			*		1		Use with Steel Wheels
	Caliper Assembly, RH	A075J6024F		*			*		1		Use with Steel Wheels
	Bolt Caliper to Mounting	A076J6008ZF		*			*		1		Use with Steel Wheels
JC 2	Pad Set	A075J6076ZE	*	*	*	*	*	*	1		Use with Alloy Wheels replaces A075J6045Z
	Pad Set	A075J6030H		*			*		1		Use with Steel Wheels
JC 3	Squeal Deterrent Kit	A075J6049SG	*	*	*	*	*	*	2
JC 4	Clips, Anti Rattle	A075J6056SJ	*	*	*	*	*	*	4		Use with Alloy Wheels
JC 5	Service Kit	A075J6053ZL	*	*	*	*	*	*	1		Use with Alloy Wheels
	Service Kit	X050J6081ZB		*			*		1		Use with Steel Wheels
JC 6	Pin, Pad Retaining	A075J6054SK	*	*	*	*	*	*	4		Use with Alloy Wheels
	Pin, Pad Retaining	A036J6032ZL		*			*		4		Use with Steel Wheels
	Clip, Pin Retaining	A075J6055SD	*	*	*	*	*	*	4		Use with Alloy Wheels
	Clip, Pin Retaining	X036J6033ZE		*			*				Use with Steel Wheels
JC 7	Bleed Nipple	A075J6057SH	*	*	*	*	*	*	3/4
JC 9	Backplate Assembly, LH, inc. Cylinders and Shoes	A075J6041W	*		*		*		1
	Backplate Assembly, RH, inc. Cylinders and Shoes	A075J6042W	*		*		*		1
	Backplate Assembly, LH, inc. Cylinders and Shoes	A076J0761F	*	*	*	*	*	*	1		Elite Automatic only
	Backplate Assembly, RH, inc. Cylinders and Shoes	A076J0762F	*	*	*	*	*	*	1		Elite Automatic only
JC 10	Shoe Assembly, (Pairs)	A075J6058SH	*	*	*	*	*	*	2
JC 11	Spring, Shoe Return	A075J6059SB	*	*	*	*	*	*	2		Cyllnder End
JC 12	Spring, Shoe Return	A075J6060SG	*	*	*	*	*	*	2		Abutment End
JC 13	Wheel Cylinder Assembly, 0.875"	A075J6061SA	*		*		*		2
	Wheel Cylinder Assembly, 0.750"	A076J6004SA	*	*	*	*	*	*	2		Elite Automatic only
JC 14	Retaining Plate	A075J6063SL	*	*	*	*	*	*	2
JC 15	Spring Plate	A075J6062SF	*	*	*	*	*	*	2
JC 16	Dust Cover	A075J6067SJ	*	*	*	*	*	*	2
	Adjuster Assembly, Wheel Cylinder LH	A075J6069SH	*	*	*	*	*	*	1
	Adjuster Assembly, Wheel Cylinder RH	A075J6070SB	*	*	*	*	*	*	1
	Support Plate	A075J6068SC	*	*	*	*	*	*	2		Between Shoe & H/Brake Lever
JC 17	Bundy Pipe, Remote Bleed	A075J0335F	*	*	*	*	*	*	2
	Locknut	A075W3015ZB	*	*	*	*	*	*	2
JC 18	Adaptor, Male/Female	A075J6040ZA	*	*	*	*	*	*	2
JC 19	Steady Rest Assembly	A075J6065SK	*	*	*	*	*	*	2
	Drum, Rear Brake	E075J0256P	*	*	*	*	*	*	2
	Service Kit, 0.875" Wheel Cylinder	A075J6066SD	*		*		*		AR
	Service Kit, 0.750" Wheel Cylinder	*	*	*	*	*	*	AR		A076J6005SF	Elite Automatic Only
