Elite/Eclat Parts Manual -- Section MA

ELITE/ECLAT PARTS MANUAL

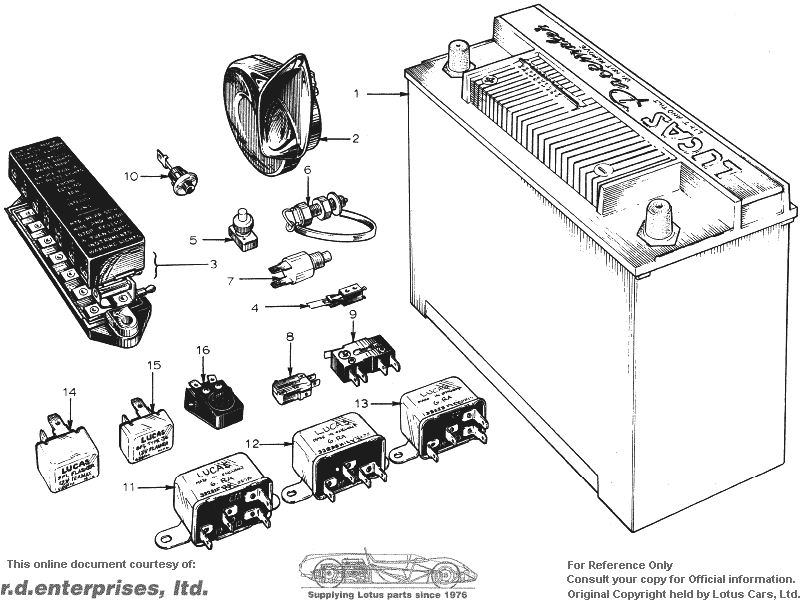

Section MA -- Electrical - Battery, Looms, Relays & Horns


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
MA 1	Battery	A075M6036ZH	*		*	*	*	*	1
	Battery 44 A/Hr.	A076M6004F		*			*	*		1
	Battery 55 A/Hr.	A076M6008F		*			*	*			1	1	Replaced by A076M6004F 44 *? 44A/Hr
	Battery Screw	A075W1040Z	*		*	*	*	*	2
	Battery Nut	A075W3026Z	*		*	*	*	*	2
	Battery, Washer	A075W4020Z	*		*	*	*	*	2
	Battery Clamp 44 A/Hr.	A076M0307K		*			*	*		1
	Battery Clamp 55 A/Hr.	A076M0313K		*			*	*			1	1	See remark above
	Rod, Battery Clamp	A075U0325Z	*		*	*	*	*	2
	Clamp Tube, Battery Retaining	B075U0326Z	*		*	*	*	*	1
	Wing Nut, M6	A075W3033Z	*		*	*	*	*	2
	Battery +VE Lead	A075M0235Z	*		*	*	*	*	1
	Battery -VE Lead	A075MO236Z	*		*	*	*	*	1
	Battery +VE Lead, LHD	A076M0311F		*			*	*			1	1
	Battery -VE Lead, LHD	A076M0305F		*			*	*			1	1
	Battery +VE Lead, RHD	A076M0304F		*			*	*		1
	Battery -VE Lead, RHD	A076M0312F		*			*	*		1
	Bolt, M8x 40, -VE Lead/Chassis	A075W2039Z			*	*	*	*	1
	Penny Washer, -VE Lead/Chassis	A075W4022Z			*	*	*	*	1
	Washer, 8mm, -VE Lead/Chassis	A075W4020Z			*	*	*	*	2
	Nut, 0p. Type, M8 -VE Lead/Chassis	A075W3010Z			*	*	*	*	1
MA 2	Horn, High Note	A075M6062Z	*	*	*	*	*	*	1
	Horn, Low Note	A075M6063Z	*	*			*	*	1
	Bracket, Horn	A075M6078Z	*	*			*	*	1
	Setscrew, Horn Bracket	A075W1028Z	*	*			*	*	2
	Jacknut	A075W3031Z	*	*			*	*	2
	Horn, High Note	A079M6087F	*	*			*	*	1				Stritone (long trumpet)
	Horn, Low Note	A079M6086F	*	*			*	*	1				Stritone (long trumpet)
	Air Horn Kit	A083M6219F			*	*	*	*	1
	Bracket, Horns	A083M0358F			*	*	*	*	1
	Setscrew, M6 x 16 Bracket/Bracket	A075W1028Z			*	*	*	*	2
	Washer, Flat, Bracket/Bracket	A075W4013Z			*	*	*	*	2
	Setscrew, M6 x 30 Bracket/Body	A075W1032Z			*	*	*	*	2
	Penny Washer, Bracket/Body	A075W4016Z			*	*	*	*	2
	Nut, Nyloc, M6	A075W3009Z			*	*	*	*	4
	Setscrew, M8 x 35, Camp/Body	A075W1041Z			*	*	*	*	2
	Washer	A075W4003Z			*	*	*	*	4
	Nut 'P' Type	A075W3010Z			*	*	*	*	2
	'P' Clip, Comp Pipes	A075W6004Z			*	*	*	*	2
	Screw, s/t No. 6 x ½"	A075WS016Z			*	*	*	*	2
MA 3	Fuse Box Assembly	A075M6034W	*	*			*	*	1				Comprising the following 5 *? items.
	Fuse Box Base	A075M6079Z	*	*			*	*	1
	Fuse Box Lid	C075M0248Z	*	*			*	*	1
	Fuse, 25 amp	A075M6081Z	*	*			*	*	2
	Fuse, 16 amp	A075M6082Z	*	*			*	*	1
	Fuse, 8 amp	A075M6083Z	*	*			*	*	2
	Fuse Box Set Screw	A075W5039Z	*	*			*	*	2
	Fuse Box Spire Nut	A075W6011Z	*	*			*	*	2
	Fuse Box, Front	A083M6272F			*	*	*	*		2	2
	Gasket, Fuse Box	A083M0394F			*	*	*	*		2	2
	Setscrew, 10 UNF x 5/8" Fusebox Fix	A075W10017			*	*	*	*		4	4
	Washer 3/16"	A075W4000Z			*	*	*	*		4	4
	Nut, Nyloc, 10 UNF	A075W3000Z			*	*	*	*		4	4
	Fuse Box, Rear	A083M6274F			*	*	*	*		1	1
	Screw s/t No. 8 x 1" Fusebox Fix	A075WS039F			*	*	*	*		2	2
	Fuse 4 amp	A083M6286F			*	*	*	*		3	3
	Fuse 5 amp	A083M6287F			*	*	*	*		4	4
	Fuse 25 amp	A083M6288F			*	*	*	*		3	3
	Fuse 17 amp	A036M6019F			*	*	*	*		4	4
	Fuse 10 amp	A083M6302F			*	*	*	*		5	5
MA 4	Micro Switch, Boot Light (leaf type)	A075M6114Z	*				*	*	1
	Mounting Bracket	A075M0253Z	*				*	*	1
	Rivet	A075W6065Z	*				*	*	2
	Micro Switch, Boot Light (plunger type)	X050M6006Z	*				*	*	1
	Micro Switch, Boot Light	A075M6000Z		*			*	*	1				R/B X050M6006Z
	Micro Switch, Boot Light	X050M6006Z		*			*	*	1				Up to Unit No. 279D, 18 *? and 117F
	Micro Switch, Boot Light	A083M6240F			*	*	*	*	1
	Micro Switch, Glavebax Light	A083M6241F			*	*	*	*	1
MA 5	Micro Switch, Bonnet Light	A075M6024Z	*				*	*	1
MA 6	Reverse Light Switch	A036F6304Z	*	*			*		1				5 Speed Gearbox
	Reverse Light Switch	A076P6044F		*			*		1				4 Speed Gearbox
	Reverse Light Switch	A083F6127F			*	*	*		1
MA 7	Brake Light Switch	A036M6154Z	*	*	*	*	*	*	1
	Spacer Washer	A075W4057Z	*	*	*	*	*	*	1
MA 8	Hand Brake Warning Light Switch	B075M6084Z	*	*	*	*	*	*		1	1
	Switch Set Screws	A075W5009Z	*	*	*	*	*	*		2	2	2
	Switch Set Screws	A075W5029Z	*	*			*	*		2	2
MA 9	Hand Brake Warning Light Switch	A075M6093Z	*	*			*	*				1
MA 10	Courtesy Light Switch	A075M6044Z	*	*	*	*	*	*	2			4
	Spacer	A075W4057Z	*	*	*	*	*	*	AR
	Screw, Switch Fixing	A075W5015Z	*	*	*	*	*	*	2
	Nut, Spire, No 6	A075W6013Z	*	*	*	*	*	*	2
MA 11	Relay, Int Fan, Ignition	A075M6057Z	*	*			*	*		1	1	2	Up to Unit Nos:- 0727A,0729A to 0745A, 0 ? to 0772A, 0796A to 0805A ? (Heaters) & 0847A (Air Co ? 0853A to 0856A (Air Cond ? 0455B, 0457B to 0466B. ? 0115C. 0145D, 0182D to 0190D ? 0124E, 0127E 0105F
MA 12	Relay, Engine Fan	A075M6041Z	*	*			*	*	1				Up to Unit Nos:- 0727A,0729A to 0745A, 0 ? to 0772A, 0796A to 0805A ? (Heaters) & 0847A (Air Co ? 0853A to 0856A (Air Cond ? 0455B, 0457B to 0466B. ? 0115C. 0145D, 0182D to 0190D ? 0124E, 0127E 0105F
MA 13	Relay, Rear Screen Overide	A075M6047Z	*	*			*	*	1				Up to Unit Nos:- 0727A,0729A to 0745A, 0 ? to 0772A, 0796A to 0805A ? (Heaters) & 0847A (Air Co ? 0853A to 0856A (Air Cond ? 0455B, 0457B to 0466B. ? 0115C. 0145D, 0182D to 0190D ? 0124E, 0127E 0105F
	Relay, 28RA, Headlamp Elevation, HRS, Radiator Fans	AO79M6141F			*	*	*	*	5				4 only if fitted with Ornage 'Cartier' radiator Fan Relay
	Relay, Double Pole, Ornage Body Radiator Fans	A083M6218F			*	*	*	*	1				Until replaced by A079M614 *?
	Fan Failure Module with Air Conditioning	A083M6257F			*	*	*	*	1
	Fan Failure Module, Heater only	A083M6285F			*	*	*	*	1
	Delay Unit Front Wiper	A079M6126F			*	*	*	*	1
	Screw, No. 6 x ¾" Delay Unit Fix	A075W5027F			*	*	*	*	2
	Washer, Delay Unit Fix	A075W4001F			*	*	*	*	1
	Delay Unit, Rear Wiper	A083M6234F			*		*	*	1
	Delay Unit, Interior Light	A082M6143F			*	*	*	*	1
	Relay c/o, Overide	A075M6170F	*	*			*	*	1				Air Cond. Only - Unit Nos:- ? 0746A, 0773A to 0795A, ? 0848A to 0850A and 0859A * onwards. 0456B and 0467B onwards. 0116C onwards. 0147D, 0170D and 0173D *? onwards 0114E onwards. 0105F onwards. All Nos Inclusive.
	Relay n/o, Rear Screen & Engine Fan	A075M6171F	*	*			*	*	2				Unit Nos. 0728A, 0746A, 0773A to 07 ? 0797A, 0806A and all heater ? onwards 0848A to 0850A and ? 0859A onwards 0456B and ? 0467B onwards 0116C onwards 0146D to 0181D, and 0191D onwards 0125E, 0126E and 0128E onwards 0105F & 0107F onwards All Nos Inclusive
	Buzzer, Seat Belt Warning	A076M6005F			*	*	*	*				1
	Screw, No. 6 x 3/8", Buzzer Fix	A075W5011Z			*	*	*	*				2
MA 14	Hazard Warning Flasher Unit	A007M4124Z	*	*			*	*	1
MA 15	Flasher Unit	X036M6300Z	*	*			*	*	1
	Flasher Unit	A075M6192F	*	*			*	*				1	Japan only
	Clip	X036M6301Z	*	*			*	*	2				Hazard Warning and Flasher Unit
	Flasher Unit	A083M6303F			*	*	*	*	1
MA 16	Thermal Interrupter	B050M6221Z			*	*	*	*				1
	Diode, Headlamps	A075M6141Z			*	*	*	*				1	Lucas 83225A replaced by *?
	Diode, Headlamps	B075M6141Z			*	*	*	*				1	Pektron A75/294
	Rear Loom	C075M0238W	*				*	*	1
	Fuse Holder	A075M6190F	*				*	*	1				For Rear Wiper Motor
	Rear Loom	B076M0281Z		*			*	*	1
	Rear Loom	B083M0351F			*		*	*		1	1
	Rear Loom	B084M0352F				*	*	*		1	1
	Engine Bay Loom	C075M0233W	*				*	*	1				All Air Cond. Chrysler 60A Up to Unit Nos:- 0723A, 04 *? 0432B and 0094C, inclusive.
	Engine Bay Loom	D075M0233W	*	*			*	*	1				All Air Cond. Motorola 55A From Unit Nos:- 0724A, 04 *? 0431B and 0433B inclusive. 0095C
	Relay	A075M6170F	*	*		*0	*	*	1				Replaced diode in Headlam *? Circuit
	Jumper Lead	A075M0324F	*	*			*	*	1
	Extension Lead	A075M0325F	*	*			*	*	1
	Engine Bay Loom	E075M0233W	*	*			*	*	1				Air Cond. Unit Nos:- 0746A ? 0773A to 0795A, 0848A to ? 0850A and 0895A onwards. ? 0456B and 0467B onwards. ? 0116C onwards. 0147D, 0170D and 0173D ? onwards 0113E onwards. 0105F onwards. All Nos ? Inclusive
	Engine Bay Loom	C075M0237W	*	*			*	*		1	1		Heater, Up to Unit Nos:- 0727A, 0729A to 0771A, 07 *? to 0805A 0114C 0145D and 0182D to 0190D 0124E and 0127E 0106F All Nos Inclusive
	Engine Bay Loom	E075M0237W		*			*	*				1	Heater, Up to Unit Nos:- 0727A, 0729A to 0771A, 07 *? to 0805A 0114C 0145D and 0182D to 0190D 0124E and 0127E 0106F All Nos Inclusive
	Engine Bay Loom	F075M0237W	*	*			*	*	1				Heater, From Unit Nos:- 0728A, 0772A to 0797A, ? and 0806A onwards 0115C onwards. 0134D, 0146D to 0181D and ? 0191D onwards. 0125E, 0126E and 0128E *? onwards. 0107F onwards.All Nos Inclusive
	Engine Bay Loom	C083M0348F			*	*	*	*	1
	Rubber Boot, Start. Solenoid Term.	A075M6174F	*	*			*	*	1
	Door Loom	A075M0241Z	*	*			*	*	2
	Door Loom	A083M0353F			*	*	*	*		2	2
	Otter Switch Connector	A036M6415Z	*	*			*	*	2
	Facia Loom, (with Smith Seat Belt Control A075M6151Z)	C075M0231W	*				*	*				1	Unit Nos Up to 0455B and *? 0457B to 0466B
	Facia Loom (with Pektron Seat Belt Interlock A076M6005)	D075M0231W	*				*	*				1
	Facia Loom	A075M0232W	*				*	*		1			Unit Nos Up to 0727A, 07 ? to 0745A o 0747A to 0771A ? 0798A to 0805A (Heaters) *? 0847A, 0851A to 0858A (Air Cond.).
	Facia Loom	A075M0243W	*				*	*			1		Unit Nos Up to 0115C *?
	Facia Loom	B075M0232W	*				*	*		1			Unit Nos 0728A, 0746A, 0 ? to 0797A~ 0806A and all ? Heaters onwards. 0848A to ? 0850A and 0859A onwards ?
	Facia Loom	E075M0231W	*				*	*			1	1	Unit Nos 0456B ond 0467A, ? onwards and 0116C onward ?
	Facia Loom	C076M0293W		*			*	*		1			Heater - Unit Nos. Up to ? 0133D, 0135D to 0145D an ? 0182D to 0190D
	Facia Loom	B076M0294W		*			*	*			1	1	Heater or Air Cond: Unit Nos *? Up to 0113E, Air Cond 0124E & 0127E Heater Up to 0104F Air Cond & 0106F Heater.
	Facia Loom RHD	D076M0293F		*			*	*		1			Unit Nos 0134D, 0146D to 0181D and 0191D onwards.
	Facia Loom LHD	C076M0294F		*			*	*			1		Unit Nos 0125E, 0126E & 0128E onwards. 107F onwards
	Facia Loom RHD	A083M0350F			*	*	*	*		1
	Facla Loom LHD	A083M0349F			*	*	*	*			1
	Resistor, Control Ilium Lamp	A075M6155Z	*	*			*	*	1				5w 50 OHM
	Jumper Loom. 4 Speed Gearbox	A076M0303W		*			*		1
	Jumper Loom. Auto Gearbox	B075M0302W	*	*	*	*		*	1
	Jumper Loom. Auto Gearbox Tunnel	A074M0226Z	*	*	*	*		*	1
	Jumper Loom. Heater	A076M0308Z	*	*			*	*	1				Unit Nos 0547A to 0727A, 0729A to 0771A, 0798A to 0805A inc. 0075C to 0114C inc. Up to 0133D, 0135D to 0145D ? 0182D to 0190D. Up to 0124E and 0127E Up to 0106F. All Nos ? incluslve.
	Diode Link, Compressor Clutch	A083M0386K			*	*	*	*	1				With Air Conditioning
	Diode	A075M6141Z			*	*	*	*	1				With Air Conditioning
	Screw, s/t, Diode Earth	A075W5031F			*	*	*	*	1				With Air Conditioning
	Jumper Loom, Heater (Lotus)	A075M0318F	*	*			*	*	1				Unit Nos. 0728A, 0772A to ? 0797A & 0806A onwards. 0330B onwards. 0115C onwards. 0146D to 0181D, 0191D onw ? 0125E, 0126E & 0128E onw *? 0107F onwards.
	Inertia Switch	A075M6161F	*	*			*	*				1	1976 Spec. Replace by A079M6133F
	Inertia Switch	A079M6133F	*	*	*	*	*	*				1
	Jumper Loom, Inertia Switch	A075M0317F	*	*			*	*				1	1976 Spec.
	Flying Lead, Inertia Switch	A036M0142Z	*	*			*	*				1	When Inertia Switch is in B *?
	Flowlock Extension Lead	B075M0288Z	*	*			*	*	1
	Carburettor Earth Lead	B079M4050F	*	*			*	*	1
	Electric Door Mirror Control Loom	A079M4095F	*	*			*	*	1
	Electric Door Mirror Toggle Switch	A079M6111F	*	*			*	*	1
	Electric Door Mirror Change Over Switch	A079M6112F	*	*			*	*	1				Lever Type R/B A075M0339 *?
	Bezel, Change-Over Switch	A079U4521F	*	*			*	*	1
	Electric Door Mirror Change Over Switch	A075M0339F	*	*	*	*	*	*	1				Rocker Type
	Jumper Loom, Interior Lamp	A076MO403F				*	*	*	1				"Riviera" only
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
