Elite/Eclat Parts Manual -- Section ME

ELITE/ECLAT PARTS MANUAL

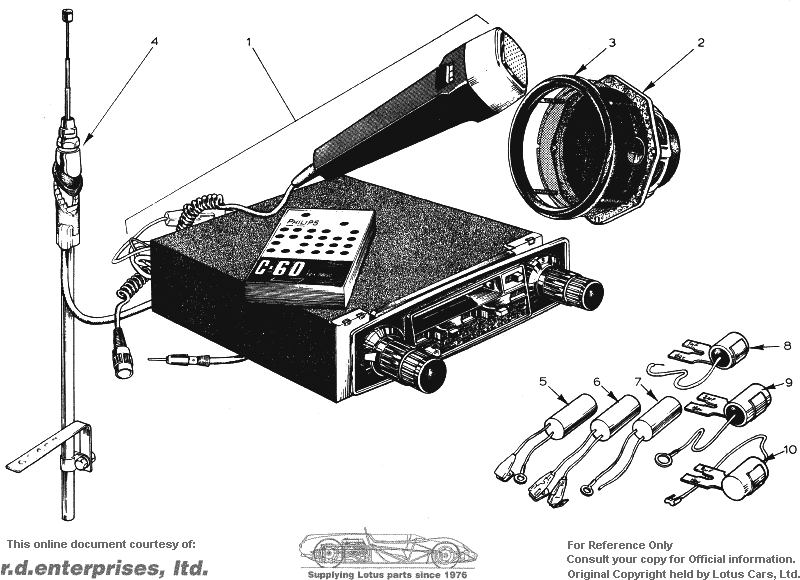

PLATE Ref. No.	DESCRIPTION	PART NO.										REMARKS
ME 1	Radio/Player (Pioneer KP 9300)	A075M6204F	*	*			*	*	1
	Radio (Motorola LT 558)	B075M6177F	*	*			*	*	1
ME 2	Speaker & Grille Assembly	B075M6196F	*	*			*	*	2
	Bass Speaker	A079M6120F			*	*	*	*	1
	Spacer, Bass Speaker	A079M4089K			*	*	*	*	2
	Tweeter	A079M6119F			*	*	*	*	2
	Grille, Black, Tweeter	A082M4104F			*	*	*	*	2
	Bezel, Tweeter	A079M4080K			*	*	*	*	2
	Rear Speaker & Grille	A083M6245F			*	*	*	*	2
	Crossover Unit	A079M6121P			*	*	*	*	1
	Cover, Crossover Unit	A079M4098F			*	*	*	*	1
ME 4	Aerial, Manual	A075M6003Z	*				*	*	1
	Aerial, Manual	A076M6001F		*			*	*	1
	Aerial, Electric	A076M6010F	*				*	*	1
	Aerial, Electric	A076M6014F		*		*	*	*	1
	Relay, Electric Aerial	A076M6048P		*		*	*	*	1
	Aerial, Electric	A083M6233F			*		*	*	1
	Relay, Electric Aerial	A083M6321F			*		*	*	1
	Earth Lead, Aerial	A075M0255Z	*	*			*	*	1
	Extension Lead, Aerial	A075M6005Z	*	*	*	*	*	*	1
	+ ve Lead, Electric Aerial	A076M0794F		*			*	*	1
	+ ve Lead, Electric Aerial RHD	A075M0795F	*				*	*		1		0
	+ ve Lead, Electric Aerial LHD	A075M0796F	*				*	*		1	1
	- ve Lead, Electric Aerial	A075M0797F	*	*			*	*	1
	Trigger Lead, Electrlc Aerial	A075M0798F	*	*			*	*	1
	Radlo/Player (Nat. Pan. 663)	A083M6222F			*	*	*	*	1
	Radlo/Player (Nat. Pan. 583)	A084M6035F			*	*	*	*	1
	Foil, Underbonnet Screen	A065M6008V	*	*	*	*	*	*	1
	Bond, Bonnet to Engine	B075M0254Z	*	*	*	*	*	*	1
	Suppression Kit	A075M0259W	*	*			*	*	1
ME 5	Capacitor, Voltage Stabilizer	A075M6100Z	*	*	*	*	*	*	1
ME 6	Capacitor, Clock	A075M6101Z	*	*			*	*	1
ME 7	Capacitor, Rear Wiper Motor	A075M6099Z	*	*	*	*	*	*	1
	Capacitor, Front Wiper Motor	A075M6099Z	*	*			*	*	1
ME 8	Capacitor, Fuel Pump	A075M6097Z	*	*	*	*	*	*	1
ME 9	Capacitor, Alternator	A075M6095Z	*	*			*	*	1
ME 10	Capacitor, Coil	A075M6096Z	*	*	*	*	*	*	1
