| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |

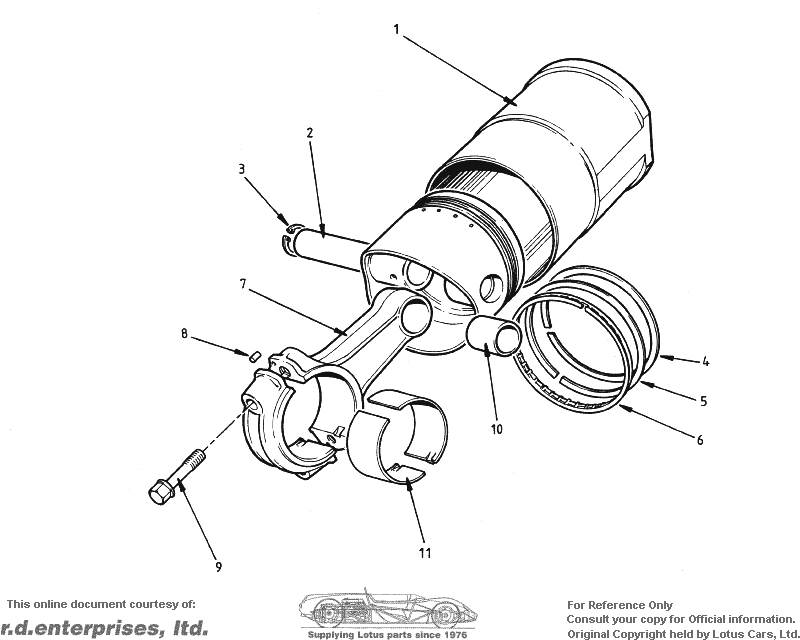

| EE 1 | Piston and Liner Assembly | A911E0777F | 4 | 4 | Includes Items EE2 to EE6 inclusive |
| Hylomar, Cylinder Liner/Block | | AR | AR | |
| EE 2 | Gudgeon Pin | B907E0405H | 4 | 4 | |
| EE 3 | Circlip, Gudgeon Pin | A907E6022H | 8 | 8 | |
| EE 4 | Compression Ring, Top | A911E0401H | 4 | 4 | |
| EE 5 | Compression Ring, Second | A911E0402H | 4 | 4 | |
| EE 6 | Oil Control Ring | B907EO404H | 4 | 4 | |
| EE 7 | Con Rod Assembly | A907E0714F | 4 | 4 | Includes Items EE8 fo EE10 Inclusive |
| EE 8 | Dowel, Cap to Rod | A907E0339H | 8 | 8 | |
| EE 9 | Bolt, Cap to Rod | A907E0344H | 8 | 8 | |
| EE 10 | Bush, Small End | A907E0357H | 4 | 4 | |
| EE 11 | Bearing Shell, Std | A907E0342F | 8 | 8 | |
| Bearing Shell, 0.010" U/S | A907E0540F | 8 | 8 | |
| Bearng Shell, 0.020" U/S | A907E0541F | 8 | 8 | |
