ELITE/ECLAT PARTS MANUAL

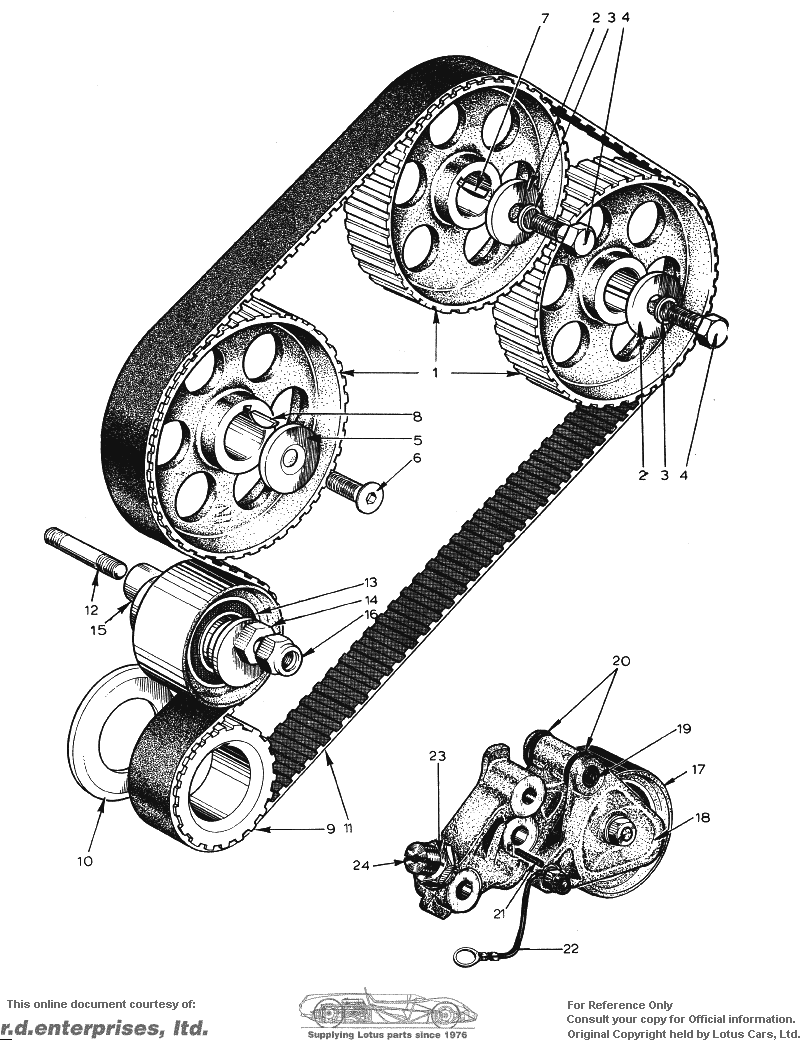

Section EF -- Engine (907) - Timing Belt & Pulleys


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
EF 1	Toothed Pulley	H907E0309Y	*	*	*	*	3				100А/110А Valve Timing. Red D ? 110А - Blue Dot 100А. Replacem ? for all previous pulleys.
	Toothed Pulley	J907E0309Y	*	*	*	*		3	3		102НА/102НА Valve Timlng, Yellow *?
EF 2	Washer, Plain	A907E6026ZG	*	*	*	*	2
EF 3	Washer, Spring	A075W2037ZE	*	*	*	*	2
EF 4	Bolt	A075W2051ZJ	*	*	*	*	2
EF 5	Washer, Special	A907E0576ZB	*	*	*	*	1
EF 6	Screw	A075W7018ZE	*	*	*	*	1
EF 7	Woodruff Key, Camshaft Pulley	A907E6025ZB	*	*	*	*	2
EF 8	Woodruff Key, Jackshaft Pulley	A907E6025ZB	*	*	*	*	1
EF 9	Toothed Pulley, Crankshaft	D907E0095ZH	*	*	*	*	1
EF 10	Flange	A907E0096ZA	*	*	*	*	1
EF 11	Toothed Belt, 133 Teeth	A907E0191ZE	*	*	*	*	1				Except Fed. with Air Injection Pu *?
	Toothed Belt, 137 Teeth	B907E1050FL	*	*	*	*				1	With Air Injection Pump.
EF 12	Stud, Belt Tensioner (Man & Auto)	B907E0504ZJ	*	*	*	*	1				Except Fed. with Air Injection & ? Manual Tensioner. Heater cars o ?
	Stud, Idler Pulley	A907E1034FD	*	*	*	*				1	With Air Injection & not Aut. Ter *?
	Bolt, Auto Tensioner	A075W2058ZL	*	*	*	*	1				2 on Air Cond. Cars.
EF 13	Pulley/Bearing	A907E6249FA	*	*	*	*	1
EF 14	Hub, Eccentric	B907E0684FB	*	*	*	*	1				Except Fed. with Air Injection.
	Belt Tensioner Assy. (Man)	D907E0758J	*	*	*	*	1				Except Fed. with Air Injection.
EF 15	Eccentric Spindle	A907E0639ZL	*	*	*	*	1
	Concentric Spindle	A907E1033FK	*	*	*	*				1	With Air Injection.
	Washer Plain	A075W4024ZL	*	*	*	*	2
EF 16	Nut, 10mm, Shouldered	A907El127F	*	*	*	*	1
	Nut, 10mm, Nyloc	A075W3011ZD	*	*	*	*	1
	Automatic Tensioner Assy.	A907E0893K	*	*	*	*	1				Replaces C907E0855K.
EF 17	Pulley/Bearing	A907E6249FA	*	*	*	*	1
EF 18	Yoke, Front	B907E1141F	*	*	*	*	1				Use only Shouldered Bushes B907E1163F with these Yokes w *? replace those with "A" prefix.
	Yoke, Rear	B907E1142F	*	*	*	*	1				Use only Shouldered Bushes B907E1163F with these Yokes w *? replace those with "A" prefix.
EF 19	Bush, Shouldered	B907E1163F	*	*	*	*	2				Use only with "B" prefix Yokes.
EF 20	Rubber, Washer	A907E1148F	*	*	*	*	2
EF 21	Locking Pin	A907E1195F	*	*	*	*	1				4mm - Diameter.
EF 22	Earth Strap	A075M0329F	*	*	*	*	1
EF 23	Locknut	A907E1149F	*	*	*	*	1
EF 24	Spring Seat (Adjuster)	B907E1146F	*	*	*	*	1
Not Illus.	Piston, Nylatron	A907E1245F	*	*	*	*	1
Not Illus.	Jackshaft Snubber, Toothed Belt	A907E1140F	*	*	*	*	1
Not Illus.	Spacer- Snubber/Auto Tens. 6.3mm	A907EI139F	*	*	*	*	2
Not Illus.	Spacer- Auto Tens/AIt. Strap, 5mm	A907E1137F	*	*	*	*	1
