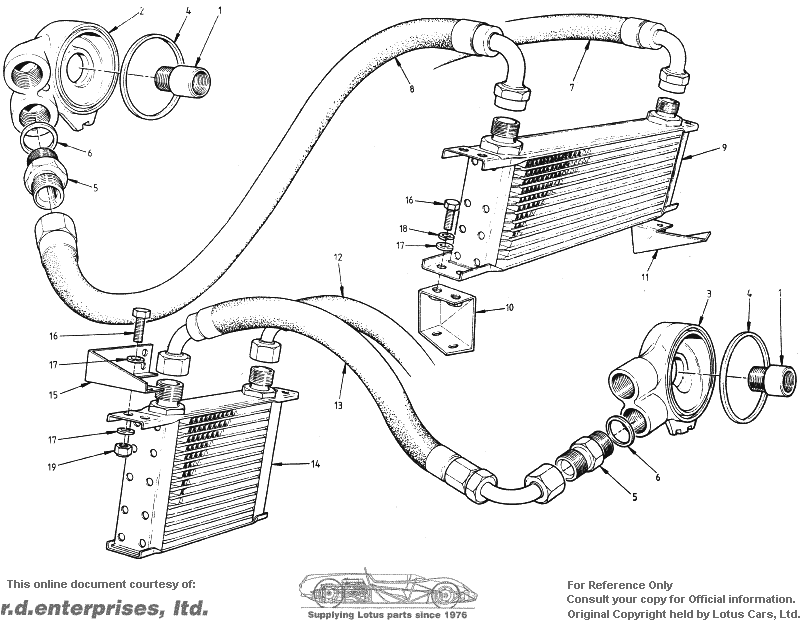

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EJ 1 | Extension, Oil Filter Union | A907E0571F | 1 | 1 | |
| EJ 2 | Adaptor, Oil Cooler | A907E0579Z | 1 | | |
| EJ 3 | Adaptor, Oil Cooler | A907E1248K | | 1 | |
| EJ 4 | Sealing Ring, Adaptor to Housing | A907E6167H | 1 | 1 | |
| EJ 5 | Union, O11 Cooler Pipes | A907E6300F | 2 | 2 | |
| EJ 6 | Washer, Oil Cooler Union | B907E6301F | 2 | 2 | |
| EJ 7 | Pipe, Oil Cooler Feed | B907E1222F | 1 | | |
| EJ 8 | Pipe, Oil Cooler Return | B907E1223F | 1 | | |
| EJ 9 | Oil Cooler | A907E1219F | 1 | | |
| EJ 10 | Mounting Bracket, Oil Cooler RH | A907E1220F | 1 | | |
| EJ 11 | Mounting Bracket, Oil Cooler LH | A907E1221F | 1 | | |
| EJ 12 | Pipe, Oil Cooler Feed | B907E1257F | | 1 | |
| EJ 13 | Pipe, Oil Cooler Return | B907E1258F | | 1 | |
| EJ 14 | Oil Cooler | A907E6297F | | 1 | |
| EJ 15 | Mounting Bracket, Oil Cooler | A085U4812K | | 2 | |
| EJ 16 | Setscrew, M6 x 18, Oil Cooler Mounting | A075W1028F | 8 | 8 | |
| EJ 17 | Washer, Flat, 6 mm | A075W4013F | 8 | 16 | |
| EJ 18 | Washer, Spring, 6ram | A075W4035F | 4 | | |
| EJ 19 | Nut, Nyloc, M6 | A075W3009F | 4 | 8 | |
