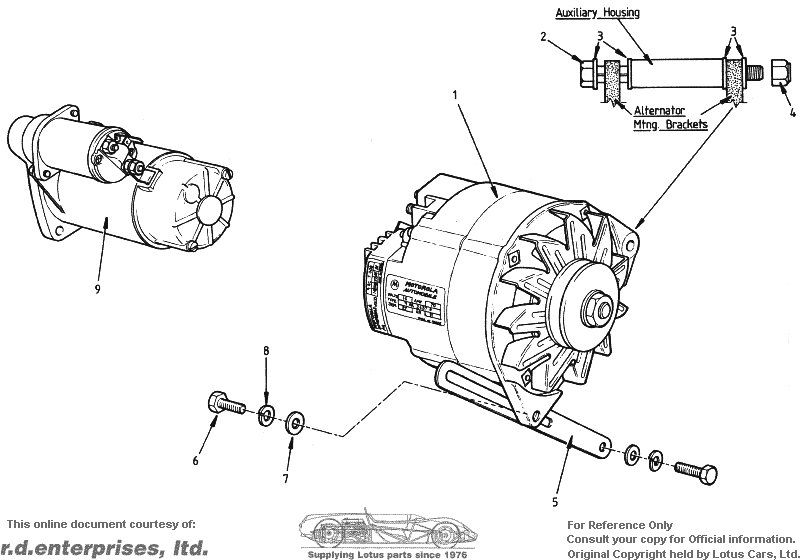

| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |
| EQ 1 | Alternator and Pulley Assembly | A907E6320F | 1 | 1 | |
| EQ 2 | Bolt M8 x 127 Air. To Aux. Housing | A075W2050Z | 1 | 1 | |
| EQ 3 | Washer, M8, AIt. to Aux. Housing | A075W4020Z | 4 | 4 | |
| EQ 4 | Nut, Nyloc, M8 | A075W3010Z | 1 | 1 | |
| EQ 5 | Strap, Alternator Adjusting | A907E1189F | 1 | 1 | Except Esprit with Air Conditioning |
| Strap, Alternator Adjusting | B907E1238F | | 1 | With Air Conditioning |
| Spacer, 5mm, Strap to Englne | A907E1137Z | 1 | 1 | |
| Stud, Strap to Engine | A907E1194Z | 1 | | With Air Conditioning |
| Nut, Nyloc, M10 | A075W3011Z | 1 | | With Air Conditioning |
| Setscrew, M10 x 25, Strap to Engine | A075W1048Z | | 1 | With Air Conditioning |
| Washer, Plain, M10 | A075W4024Z | 1 | 1 | With Air Conditioning |
| Washer, Spring, M10 | A075W4037Z | 1 | 1 | With Air Conditioning |
| EQ 6 | Setscrew, M8 x 20, Strap to Alternator | A075W1038Z | 1 | 1 | |
| EQ 7 | Washer, Plain, M8 | A075W4020Z | 1 | 1 | |
| EQ 8 | Washer, Spring, M8 | A075W4036Z | 1 | 1 | |
| EQ 9 | Starter Motor | B907E6179W | 1 | 1 | |
| Rubber Boot, Terminal | A075M6174F | 2 | 2 | Alternator & Starter Motor |
