| PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |

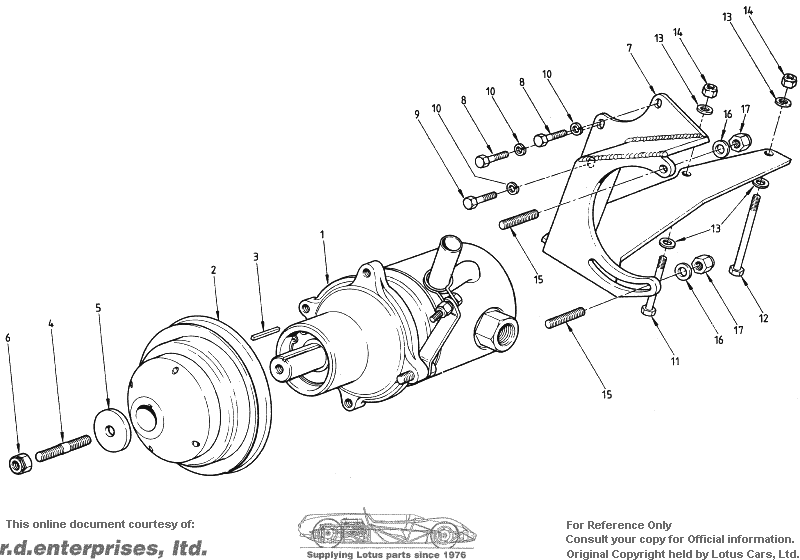

| ET 1 | Power Steering Pump (Less Pulley Assy) | A075H0736W | 1 | | |
| ET 2 | Pump Pulley Assembly | A907E0887J | 1 | | |
| ET 3 | Key, Pulley Assembly to Shaft | A907E1013Z | 1 | | |
| ET 4 | Stud, Pulley to Pump Shaft | A907E1027F | 1 | | |
| Avdelbond 115 Thread Lock | | 2cc | | |
| ET 5 | Washer, Special, Pulley Ret. | A075W4022Z | 1 | | |
| ET 6 | Nut, Locking, Pulley Retention | A075W3035Z | 1 | | |
| ET 7 | Bracket, Power Steering Pump | A912E0668F | 1 | | |
| ET 8 | Bolt, M6, Bracket,/Water Pump/Block | A075W2028Z | 2 | | |
| ET 9 | Bolt, M6, Bracket to Block | A075W2928Z | 1 | | |
| ET 10 | Washer, Spring, M6 | A075W4035Z | 3 | | |
| ET 11 | Bolt, Sump/MBH/Pump Bracket, M8 | A075W2044Z | 1 | | |
| ET 12 | Bolt, Sump/MBH/Pump Bracket, M8 | A075W2048Z | 1 | | |
| ET 13 | Washer, Plain, 8mm | A075W4020Z | 4 | | |
| ET 14 | Nut, Nyloc, M8 | A075W3010Z | 2 | | |
| ET 15 | Stud, MS, Pump to Bracket | A907E1012Z | 2 | | |
| ET 16 | Washer, Plain, 8mm | A075W4020Z | 2 | | |
| ET 17 | Nut, Nyloc, M8 | A075W3010Z | 2 | | |
