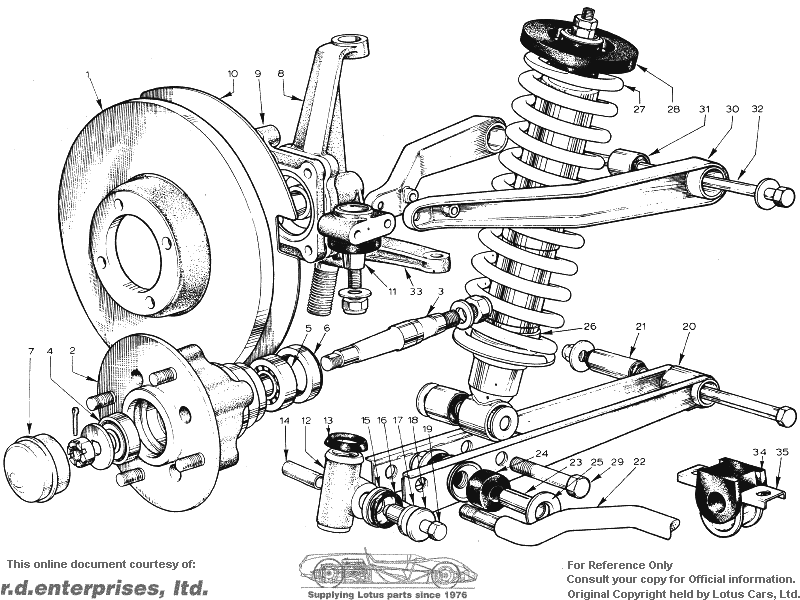

ELITE/ECLAT PARTS MANUAL

Section CA -- Front Suspension


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
CA 1	Disc, Front	A075J0297ZK	*	*	*	*	*	*	2				Eclat S1 with Alloy Wheels
	Disc, Front	A050J6098ZF		*			*		2				Use with Steel Wheels
	Bolt	X036J6009ZF	*	*	*	*	*	*	8				Disc/Hub Fixing.
	Washer	X036J6010ZL	*	*	*	*	*	*	8				Disc/Hub Fixing.
CA 2	Front Hub Assy.	A075C0124WC	*	*	*	*	*	*	2				Eclat S1 with Alloy Wheels
	Front Hub Assy.	A076C0151JH		*			*		2				Use with Steel Wheels
	Front Hub Assy.	A082CA018F				*	*	*	2				Use with Speedline Wheels
	Stud, Wheel	A075C6003ZF	*	*	*		*	*	8
	Stud, Wheel	A079D6002F				*	*	*	8
CA 3	Stub Axle	A036C6040Z	*	*	*	*	*	*	2
	Nut	A036C6033ZH	*	*	*	*	*	*	2
	Washer	A036C6034Z	*	*	*	*	*	*	2
CA 4	Bearing, Outer	A036C6041Z	*	*	*	*	*	*	2
CA 5	Bearing, Inner	A036C6042Z	*	*	*	*	*	*	2
	Slotted Nut	A036C6010Z	*	*	*	*	*	*	2				Hub to Stub Axle.
	Split Pin	A050C6001Z	*	*	*	*	*	*	2				Hub to Stub Axle.
	Washer "D"	A050C6000Z	*	*	*	*	*	*	2				Hub to Stub Axle.
CA 6	Oil Seal Assy.	A050C6002Z	*	*	*	*	*	*	2
CA 7	Hub Cap	A075C6004ZL	*	*	*	*	*	*	2
CA 8	Vertical Link, RH	A036C6044Z	*	*	*	*	*	*	1
	Vertical Link, LH	A036C6043Z	*	*	*	*	*	*	1
	Plug, Vertical Link	A036C6035Z	*	*	*	*	*	*	2
	Sealing Ring	X050C6019ZC	*	*	*	*	*	*	2				Cal. Mtg. Plate/Vert Li *?
CA 9	Caliper Mounting Plate, RH	A075C0138ZH	*	*	*	*	*	*	1				S.1 Eclat with Alloy Wheels
	Caliper Mounting Plate, LH	A075C0137ZC	*	*	*	*	*	*	1				S.1 Eclat with Alloy Wheels
	Caliper Mounting Plate, RH	A050C6007Z		*			*		1				Use with Steel Wheels
	Caliper Mounting Plate, LH	A050C6006Z		*			*		1				Use with Steel Wheels
CA 10	Dust Shield, RH	A075C0140ZG	*	*	*	*	*	*	1				S.1 Eclat with Alloy Wheels
	Dust Shield, LH	A075C0139ZB	*	*	*	*	*	*	1				S.1 Eclat with Alloy Wheels
	Dust Shield, RH	A050C6009Z		*			*		1				Use with Steel Wheels
	Dust Shield, LH	A050C6008Z		*			*		1				Use with Steel Wheels
	Bolt	A050C6017ZD	*	*	*	*	*	*	4				Cal. Mtg. Plate/Vert *?
	Washer 5/16" I.D.	A075W4002ZL	*	*	*	*	*	*	4				Cal. Mtg. Plate/Vert *?
	Bolt	A075W1023F	*	*	*	*	*	*	2				Cal. Mtg. Plate/Vert *?
	Nut, 3/8" UNF, Nyloc	A075W3003ZH	*	*	*	*	*	*	2				Cal. Mtg. Plate/Vert *?
	Bolt	A050C6012Z	*	*	*	*	*	*	2				Cal. Mtg. Plate/Vert *?
	Washer, Spring 3/8" I.D.	A075W4044ZA	*	*	*	*	*	*	2				Cal. Mtg. Plate/Vert *?
CA 11	Upper Ball Joint Assy.	A036C6007Z	*	*	*	*	*	*	2
	Nut	A050C6004ZE	*	*	*	*	*	*	2
	Washer	A050C6005ZK	*	*	*	*	*	*	2
	Bolt, Inboard, 8 x 100mm	A075W2049ZK	*	*	*	*	*	*	2				Top Ball Joints/Wish *?
	Nut, Nyloc	A075W3010ZK	*	*	*	*	*	*	4				Top Ball Joints/Wish *?
	Bolt, Outboard 8 x 60mm	A075W2043ZB	*	*	*	*	*	*	2				Top Ball Joints/Wish *?
	Washer	A075W4020ZB	*	*	*	*	*	*	4				Top Ball Joints/Wish *?
CA 12	Lower Trunnion Assy, RH	A036C6025Z	*	*	*	*	*	*	1
	Lower Trunnion Assy, LH	A036C6026Z	*	*	*	*	*	*	1
CA 13	Trunnion Seal	A036C6047Z	*	*	*	*	*	*	2
CA 14	Sleeve	A036C6031ZJ	*	*	*	*	*	*	2
CA 15	Washer	A036C6029ZK	*	*	*	*	*	*	4
CA 16	Seal	A036C6030ZD	*	*	*	*	*	*	4
CA 17	Bush	A036C6002ZG	*	*	*	*	*	*	4
CA 18	Washer	A036C6032F	*	*	*	*	*	*	4
CA 19	Bolt	A075W2010ZB	*	*	*	*	*	*	2
	Nut	A075W3004ZB	*	*	*	*	*	*	2
	Washer	A075W4005ZD	*	*	*	*	*	*	2
CA 20	Lower Link Assy, RH	C075C0134K	*	*	*	*	*	*	1
	Lower Link Assy, LH	C075C0135K	*	*	*	*	*	*	1
	Bolt	A075W2015ZE	*	*	*	*	*	*	2
	Nut	A075W3005ZG	*	*	*	*	*	*	2
	Washer	A075W4005ZD	*	*	*	*	*	*	2
CA 21	Bush, Lower Link Pivot	A075C6000ZB	*	*	*	*	*	*	2
CA 22	Anti-Roll Bar	C075C0116F	*	*	*	*	*	*	1
CA 23	Distance Tube	A075C0\|26ZC	*	*	*	*	*	*	2
CA 24	Anti-Roll Bar Mounting Rubbers	A075C0144ZC	*	*	*	*	*	*	4
CA 25	Washer	A075C0133ZE	*	*	*	*	*	*	2
	Nut, Nyloc	A075W3012ZJ	*	*	*	*	*	*	2
CA 26	Damper Assy.	B075C0128WE	*	*	*	*	*	*	2
	Top Bush	A075C6010F	*	*	*	*	*	*	AR
	Bottom Bush	A075C6011F	*	*	*	*	*	*	AR
	Rubber Cover	B075D0253ZD	*	*	*	*	*	*	2
CA 27	Spring, Front, (Yellow)	C075C0127ZE	*	*			*	*	2				Eclat - 520 & 521 from ( ? 522, 523 & 524, Dom & ?
	Spring, Front, Heavy Duty, (White)	A075C0136ZJ	*	*			*	*	2				Air Cond Cars only. On *? Fed use with thick seat B075C0146F.
	Spring, Front (Violet)	A076C0156FF		*			*		2				520 & 521, on Fed with seat B075C0146F up to *?
	Spring, Front (White)	A075C0136ZJ			*	*	*		2				Basic car & basic car *? P.A.S.
	Spring, Front (White/Red)	A083C0745F			*	*	*	*	2				All other variants from ? spec. (Some cars wer ? with white spring & th *? as an interim measure)
CA 28	Spring Seat, Rubber, Thin	BO75CO129Z	*	*			*	*		2			All Elite & Eclat 520 *? only.
	Spring Seat, Rubber, Thick	B075C0146F	*	*			*	*	2				All Fed/ROW Elite & ? & Dom. ,522, 523 & 52 ?
	Spring Seat, Rubber, Thin	B075C0129Z			*	*	*	*		2	2		See remarks for A083C *?
	Spring Seat, Rubber, Thick	B075C0146F			*	*	*	*				2
	Washer	A075W4007ZC	*	*	*	*	*	*	2
CA 29	Bolt	A075W2013ZF	*	*	*	*	*	*	2
	Nut, Nyloc	A075W3005ZG	*	*	*	*	*	*	2
	Washer	A075W4007Z	*	*	*	*	*	*	6
CA 30	Wishbone, Upper Halves	C075C0130J	*	*	*	*	*	*	4
CA 31	Rubber Bush, Wishbone Pivot	XO36C6004ZF	*	*	*	*	*	*	4
CA 32	Stud, Upper Wishbone Pivot	A075C0145FG	*	*	*	*	*	*	2
	Nut, Nyloc	A075W3005ZG	*	*	*	*	*	*	2
	Washer, Side	A075C0149DH	*	*	*	*	*	*	8
	Steering Arm, RH	C075C0122Z	*	*	*	*	*	*	1
	Steering Arm, LH	C075C0123Z	*	*	*	*	*	*	1
CA 34	Rubber Mountings, Anti-Roll Bar	A075C6005ZE	*	*	*	*	*	*	2
CA 35	Bracket, Rubber Mountings	B075C0120F	*	*	*	*	*	*	2
	Bolt, 10mm x 80	A075W2061ZD	*	*	*	*	*	*	2
	Bolt, 10mm x 30	A075W1049ZB	*	*	*	*	*	*	2
