ELITE/ECLAT PARTS MANUAL

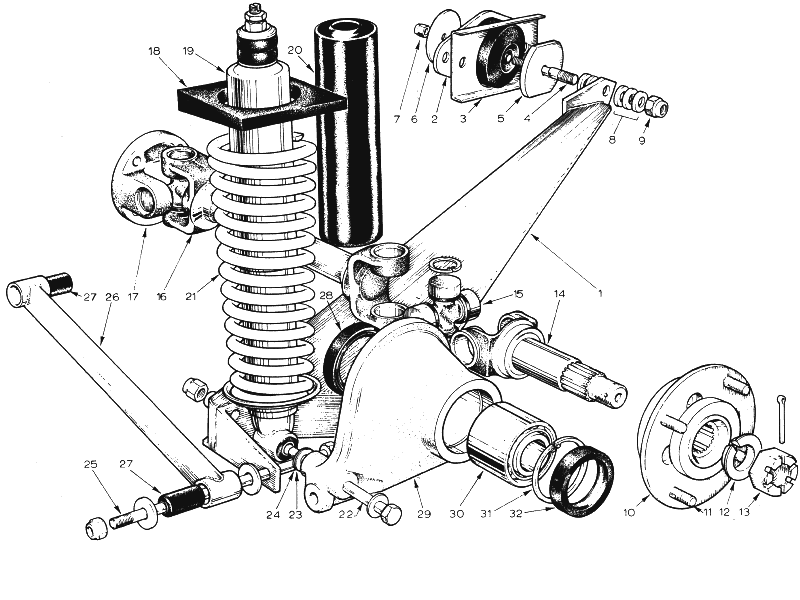

Section DA -- Rear Suspension


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
DA 1	Radius Arm Assembly, RH	B075D0230WJ	*	*	*	*	*	*	1
	Radius Arm Assembly, LH	B075D0231WC	*	*	*	*	*	*	1
DA 2	Bush, Resilient	X046D6000ZH	*	*	*	*	*	*	2
DA 3	Plate, Reinforcing	A075D0240ZA	*	*	*	*	*	*	2
	Screw, Bush/Plate Securing	A075W1038ZB	*	*	*	*	*	*	4
	Lockwasher	A075W4036ZE	*	*	*	*	*	*	4
	Washer, Plain	A075W4020ZB	*	*	*	*	*	*	4
DA 4	Stud, Special	A075D0232ZE	*	*	*	*	*	*	2
DA 5	Snubber Washer	A075D0233ZK	*	*	*	*	*	*	2
	Washer, Load Spreading	A083D0778F	*	*	*	*	*	*	2				Between mounting Bush *? Snubber Washer
DA 6	Washer	A075W4006ZJ	*	*	*	*	*	*	2
DA 7	Nut 7/16"	A075W3004ZB	*	*	*	*	*	*	2
DA 8	Shims, Toe-In	A075D0234ZD	*	*	*	*	*	*	12
DA 9	Nut, 5/8"	A075W3006ZA	*	*	*	*	*	*	2
DA 10	Rear Hub Assembly	A075D0763WG	*				*	*	2				Slinger Ring Dia. 99 m *?
	Rear Hub Assembly	B075D0763WL	*	*	*		*	*	2				Slinger Ring Dia. 80 m ? Eclat S1 only with Lotus ? Alloy Wheels Elite S2 only with Lotus *? Alloy Wheels
	Rear Hub Assembly	AO76DO268JK		*			*		2				Steel Wheels,,Slinger Ring *? Dia. 99 mm
	Rear Hub Assembly	B076DO268F *?		*			*		2				Steel Wheels,,Slinger Ring *? Dia. 80 mm
	Rear Hub Assembly	A084D0771F			*	*	*	*	2				Speedline Wheels
DA 11	Stud, Wheel	A075C6003ZF	*	*	*		*	*	8				Steel, or Lotus Alloy Wheels
	Stud, Wheel	A079D6002F			*	*	*	*	8				Speedline Wheels
DA 12	Cone, Hub Retention	A075D0256ZD	*	*	*	*	*	*	2
DA 13	Nut, Hub	A075D6002ZK	*	*	*	*	*	*	2
	Split Pin	AO75W6010ZA	*	*	*	*	*	*	2
	Driveshaft Assembly	C075D0762WK	*	*	*	*	*	*	2				Comprises item DA14 to DA *?
DA 14	Shaft, Outboard Drive	A075D0226ZH	*	*	*	*	*	*	2
DA 15	Universal Joint	A075D6004WH	*	*	*	*	*	*	4
DA 16	Shaft, Intermediate Drive	C075D0237ZE	*	*	*	*	*	*	2
DA 17	Flange, Driveshaft	A075D6005ZC	*	*	*	*	*	*	2
	Bolt, Flange to Driveshaft	A075D0252ZE	*	*	*	*	*	*	8
	Washer, Spring	AO75W4033ZA	*	*	*	*	*	*	8
DA 18	Insulator, Rear Spring	A075D0227ZB	*	*	*	*	*	*	2
	Spacer	AO75DO266Z	*				*	*				2	Use with Spring A075D0262 *?
DA 19	Damper Rear	A076D0271F	*	*	*	*	*	*	2				Supercedes A075D0228 *?
	Top Bush	A075C6010F	*	*	*	*	*	*	2
	Bottom Bush	A076D6000F	*	*	*	*	*	*	2
DA 20	Dust Cover, Rear Damper	B075D0253ZD	*	*	*	*	*	*	2
DA 21	Road Spring, Rear (Green/White)	A075DO262Z	*				*	*	2				Standard Short/Higher F *?
	Road Spring, Rear (Red)	D075D0261FE	*		*	*	*	*	2				Standard
	Road Spring, Rear (Orange)	A076D0270FD		*			*	*		2
	Road Spring, Rear	B076D0270FH		*			*	*	2				½" Shorter than A076D0 ? from nos. 0114D, 0101E ? 0110F
	Road Spring, Rear (Green/Orange)	A076D0272F		*			*	*	2				Softer than, & replaces *? B076D0270FH in pairs
DA 22	Bolt, Rear Damper to Radius Arm	A075W2017ZD	*	*	*	*	*	*	2
DA 23	Shim	A075D0258ZC	*	*	*	*	*	*	AR
DA 24	Washer, Hardened	A074D6003ZE	*	*	*	*	*	*	2
	Washer, Plain	A075W4007ZC	*	*	*	*	*	*	2
	Nut	A075W3005ZG	*	*	*	*	*	*	2
DA 25	Stud, Radius Arm/Hub Carrier/Link	A075D0265FB	*	*	*	*	*	*	2				S2 up to 83D1743 84D1077 83 A/E/G/H/S ? 84 A/E/G/H/S ?
	Washer, Plain	A075W4007ZC	*	*	*	*	*	*	2				S2 up to 83D1743 84D1077 83 A/E/G/H/S ? 84 A/E/G/H/S ?
	Washer, Side	A075C0149ZC	*	*	*	*	*	*	2				S2 up to 83D1743 84D1077 83 A/E/G/H/S ? 84 A/E/G/H/S ?
	Nut, Nyloc	A075W3005ZG	*	*	*	*	*	*	4				Up to VIN 83D1743 84D1077 83/A/E/G/H/S 0243 84 A/E/G/H/S 0216
	Locknut	A075W3017ZA	*	*	*	*	*	*	2				Up to VIN 83D1743 84D1077 83/A/E/G/H/S 0243 84 A/E/G/H/S 0216
DA 26	Lower Link, RH	B075D0236ZG	*	*	*	*	*	*	1				Up to VIN 83D1743 84D1077 83/A/E/G/H/S 0243 84 A/E/G/H/S 0216
	Lower Link, LH	B075D0235ZB	*	*	*	*	*	*	1				Up to VIN 83D1743 84D1077 83/A/E/G/H/S 0243 84 A/E/G/H/S 0216
DA 27	Bush, Lower Link	A074D6002ZL	*	*	*	*	*	*	4				Up to VIN 83D1743 84D1077 83/A/E/G/H/S 0243 84 A/E/G/H/S 0216
	Stud, Radius Arm/Hub Carrler/Link	A075D0265F			*	*	*	*		2	2		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Washer, Plain	A075W4007F			*	*	*	*		2	2		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Washer, Hardened, Snubber	A083D0277F			*	*	*	*		4	4		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Nut, Nyloc	A075W3005F			*	*	*	*		4	4		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Locknut	A075W3017F			*	*	*	*		2	2		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Lower Link, RH (less bushes)	A083D0274K			*	*	*	*		1	1		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Lower Link, LH (less bushes)	A083D0275K			*	*	*	*		1	1		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Bush, Lower Link Outer, ½"	A082D4084F			*	*	*	*		2	2		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
	Bush, Lower Link Inner, 5/8"	A083D0276F			*	*	*	*		2	2		From VIN 83D1744 84D1078 83 A/F/G/H/S 0244 84 A/E/O/H/S 0217
DA 28	Seal, Inner	A075D6008ZG	*	*	*	*	*	*	2
DA 29	Carrier, Rear Hub, RH	E075D0238ZG	*	*			*	*	1				Use with Hub A075D0763W *? or A076D0268JK Slinger Ring 99 mm
	Carrier, Rear Hub, RH	F075D0238ZL	*	*	*	*	*	*	1				Use with Hub B075D0763W *? or B076D0268F or A084D0771F Slinger Ring 80 mm
	Carrier, Rear Hub, LH	E075D0239A	*	*					1				Use with Hub A075D0 *? or A076D0268JK Slinger Ring 99 mm
	Carrier, Rear Hub, LH	F075D0239ZE	*	*	*	*	*	*	1				Use with Hub B075D0 *? or B076D0268F or A084D0771F Slinger Ring 80 mm
DA 30	Bearing, Rear Wheel	A075D6007ZB	*	*	*	*	*	*	2
DA 31	Circlip, Bearing Retaining	A075D6010ZE	*	*	*	*	*	*	2
DA 32	Seal, Outer	A075D6009ZA	*	*	*	*	*	*	2
