Elite/Eclat Parts Manual -- VB

ELITE/ECLAT PARTS MANUAL

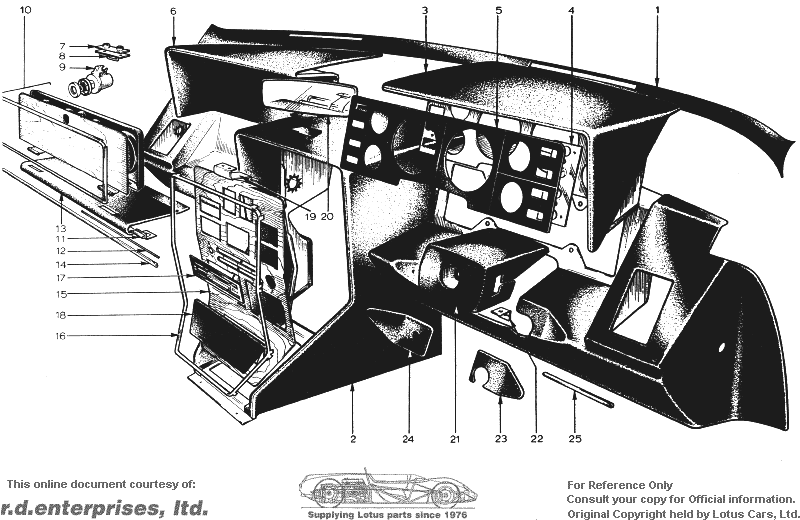

Section VB -- Trim - Fascia, Dahsboard & Glove Box


PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
VB 1	Trim, Demist Oulets	A075U1083Z	*	*	*	*	1
	Facia, Main Panel, RHD	A075V0344Z	*	*	*	*	1				With outboard face level vents
	Facia, Main Panel, RHD	A076V1476K	*	*	*	*	1				Without outboard face level vet
	Facia, Main Panel, LHD	A075V0625S	*	*	*	*	1				With outboard face level vents
	Facia, Main Panel, LHD	A076V1477K	*	*	*	*	1				Without outboard face level vet
	Screws, S,T	A075W5015Z	*	*	*	*	4
VB 3	Cowl, Instruments, RHD	A075V0342S	*	*	*	*		1
	Cowl, Instruments, LHD	A075V0341S	*	*	*	*			1	1
	Eccentric Bobbin	A075U0480Z	*	*	*	*	1
	Lokut Nut	A075W6039Z	*	*	*	*	1
	Screw, S/T	A075WS044Z	*	*	*	*	1
VB 4	Warning Light Mounting Brkt.	A075U0485Z	*	*	*	*	2
	Lokut Nut	A075W6039Z	*	*	*	*	4
	Screw, S/T	A075W5037Z	*	*	*	*	4
VB 5	Mask Instrument Panel, RHD	A075U0484Z	*	*	*	*		1
	Mask, Instrument Panel, LHD	A075U0483Z	*	*	*	*			1	1
	Lokut Nut	A075W6039Z	*	*	*	*	4
	Screw, S/T	A075W5037Z	*	*	*	*	4
	Hedlock Fasteners	A075W6081Z	*	*	*	*	10
	Hedlock Fasteners	A075W6083Z	*	*	*	*	2				Black
	Pop Rivets	A075W6067Z	*	*	*	*	24
VB 6	Cowl, Cubby Box, RHD	A075V0343S	*	*	*	*		1
	Cowl, Cubby Box, LHD	A075V0340S	*	*	*	*			1	1
	Eccentric Bobbin	A075U0488Z	*	*	*	*	1
	Lokut Nut	A075W6039Z	*	*	*	*	1
	Screw, S/T	A075W5044Z	*	*	*	*	1
VB 7	Tapping Plate	A075U0388Z	*	*	*	*	1
VB 8	Striker	B075U0362Z	*	*	*	*	1
	Screw, S/T	A075W5013Z	*	*	*	*	2
	Spire Nut	A075W6014Z	*	*	*	*	2
VB 9	Lock,c/w 2 Keys and Bezel	A075U0705W	*	*	*	*	1
	Bezel	A075U0409Z	*	*	*	*	1
VB 10	Door Assy, Cubby Box	A075U0643S	*	*	*	*	1
	Finisher	A075U0665Z	*	*	*	*	1
	Adhesive Strip	AO50B6181V	*	*	*	*	1
VB 11	Hinge, Cubby Box	A075U0469Z	*	*	*	*	2
	Hinge Spacer	A075U0468Z	*	*	*	*	2
VB 12	Hinge Pin	A075U0391Z	*	*	*	*	1
	Riv Nut	A075W3029Z	*	*	*	*	2
	Screw	A075W5059Z	*	*	*	*	2
	Screw	A075W5051Z	*	*	*	*	2
	Spire Nut	A075W6013Z	*	*	*	*	2
VB 13	Floor, Cubby Box	B075U0384S	*	*	*	*	1
	Trim Clips	A075W6054Z	*	*	*	*	3
VB 15	Switch Panel	A075U0471Z	*		*	*	1				Air Cond. and Heater with Oute ? Face -,Level Vents Unit Nos. Up to 0745A, 0747A to 0772A. ? 0796A to 0847A, 0853A to 0856 *? Up to 0455B, 0457B to 0466B Up to 0115C
	Switch Panel	A075U1073Z	*		*	*	1				Heater without outer face level ? Unit Nos. 0547A to 0747A, ( ? to 0771A, 0798A to 0805A. 0075C to 0114C. Air cond. & heater Unit Nos. 0728A, 0746A, 0722 ? to 0795A, 0797A, 0606A and a ? heaters onwards. 0848A to 085 *? 0859A on (Air Cond.). 0456B & 0467B on. 0116C on.
	Switch Panel	A076U1077C		*	*	*	1				Air Cond Unit Nos. 0113E & 0104F
	Switch Panel	A076U1101Z		*	*	*	1				Air Cond. Unit Nos. 0147D on 0114E on 0105F on
	Switch Panel	AQ76U1078Z		*	*	*	1				Heaters Unit Nos. All
VB 16	Trim Switch Panel	B075U0352Z	*	*	*	*	1
	Clip	A075W6054Z	*	*	*	*	3
	Nylocs	A075W3000Z	*	*	*	*	2
VB 17	Heater Control Escutcheon	A075W0432Z	*	*	*	*	1				Unit Nos:- Heaters :- Up to 0546A, 0330B & ? 0074C Air Cond:- Up to 0745A, 0747A ? 0772A, 0796A to 0847A, 0853A *? 0856A. Up to 0455B, 0457B to 0466B. Up to 0115C Eclat 0113E & 0104F only
	Heater Control Escutcheon	A076U1065F	*	*	*	*					Heaters Unit Nos:- 0547A to 0727A, 07 *? to 0771A, 0798A to 0805A 0075C to 0114C Up to 01330, 01350 to 0145D, 0182D to 0190D Up to 0124E & 0127E Up to 0106F
	Heater Control Escutcheon	A075P0197F	*	*	*	*					Heater Unit Nos. 0728A, 0772A to 0 ? 0806A on. 0330B on 0115C on ? 0146D to 0181D & 0191D on 0125E, 0126E & 0128E on 01071: on :- All Nos Inclusive
	Heater Control Escutcheon	A075P0213Z	*	*	*	*					Air Cond. Unit Nos :- 0746A, 0773 to 0 ? 0848A to 0850A & 0859A on ? 0456B & 0467B on 0116C on 0147D, 0170D & 0173D on 0114E on 0105E on All Nos Inclusive
	Seal	A075U0580Z	*	*	*	*	1
VB 18	Radio Blanking Plate	A075U0644S	*	*	*	*	1
	Penny Washers	A075W4004Z	*	*	*	*	2
	Nylocs	A075W3000Z	*	*	*	*	2
VB 19	Interior Mirror Support Bracket	A075U0621Z	*	*	*	*	1
	Nylocs	A075W3000Z	*	*	*	*	2
VB 20	Interior Mirror Assy.	A075U0435Z	*		*	*	1
	Head	A075U6046Z	*		*	*	AR				Base - B075U0480Z
	Interior Mirror	X050B1564Z		*	*	*	1
	Spire Nuts	A075W6016Z	*	*	*	*	2
	Screw S/T	A075WS016Z	*	*	*	*	2
VB 21	Switch Shroud	A075V1003S	*	*	*	*	1
VB 22	Bracket	A075V1006Z	*	*	*	*	1
	Spire Nut	A075W6014Z	*	*	*	*	1
	Screw, S/T	A075W5015Z	*	*	*	*	1
VB 23	Trim, Ign. Lock, RHD	A075V1104S	*	*	*	*		1
	Trim, Ign. Lock, LHD	A075V1105S	*	*	*	*			1	1
VB 24	Trim, Choke Control, RHD	A075V1106S	*		*	*		1
	Trim, Choke Control, LHD	A075V1107S	*		*	*			1	1
	Clip	A075W6056Z	*		*	*	4
VB 25	Finisher, Driver Facia	B075U0354Z	*	*	*	*	1
	Clip	A075W6054Z	*	*	*	*	2
