ELITE/ECLAT PARTS MANUAL

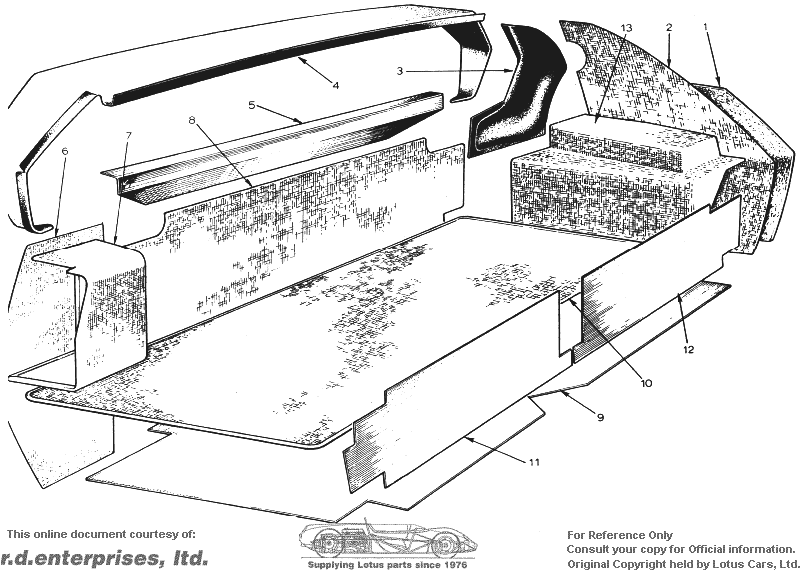

Section VE -- Trim - Boot Trim


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
VE 1Felt, Boot SideA075V1051Z* 2
VE 2Carpet, Bootside, RHA075V1018Z* 1
Carpet, Bootslde, R.H.A076V1328K *1
Carpet, Boatside, LHA075V1019Z* 1
Carpet, Bootside, LHA076V1327K *1
VE 3Cover, Fuel Filler Neck, RHA075V1026Z* 1
Cover, Fuel Filler Neck, LHA075VI027Z* 1
Cover, Fuel Filler NeckA076V1322K *1
VE 4Ambla Trim, Rear BulkheadA075V0226Z* 1
VE 5Capping Strip, Fuel TankA075UO468Z* 1
ScrewA075W5037Z* 4
Hedlock FastenerA075W6083Z* 4
Pop RivetA075W6067Z* 8
VE 6Carpet, Wheel arch, LHA075V1017Z* 1
Carpet, Wheel arch, LHA076VI325K *1
Carpet, Wheel arch, RHA075V1016Z* 1
Carpet, Wheel arch, RHA076V1326K *1
Carpet, Boo, RearA076V1324K *1
VE 7Cover, Evap.Loss TankB075V1023Z** 1
Pad, Cover, Evap.Loss TankA075V1078Z** 2
ScrewA075WS037Z**6 Also Filler Covers
Lokut NutA075W6039Z**6
VE 8Front Panel, BootA075V1053Z* 1
Cover, Fuel TankB076V1261F *1
Carpet, Front Panel, BootA075V1014Z* 1
Carpet, Cover, Fuel TankA076V1262F *1
VE 9Floor Board, BootB075V1020Z* 1
Floor Board, BootA076V1449F *1
VE 10Carpet, Boat FloorB07SV1015Z* 1
Carpet, Boot FloorA076V1323K *1
Ring, DotA075W6053Z**2
Socket, DotA075W6061Z**2
Carpet FixingA075W6059Z**2
VE 11Cover, Rear Light, LHB075V1025Z* 1
VE 12Cover, Rear Lights RHB075V1024Z* 1
Cover, Rear LightsA076V1290F *2
ScrewA075W5037Z**6
VE 13Tool Box and Battery Cover Assy.A075V6027S* 1
AdhesiveA036B6204V* AR
Retainer, Battery CoverA075U6066F* 1
Hook, Retainer, Battery CoverA075U1001F* 1
Pop RivetA075W6091F* 1
Retaining Strap, ToolkitA075T0367F *1
Foam Pad, Tool KitA075T0368F *1
