ELITE/ECLAT PARTS MANUAL

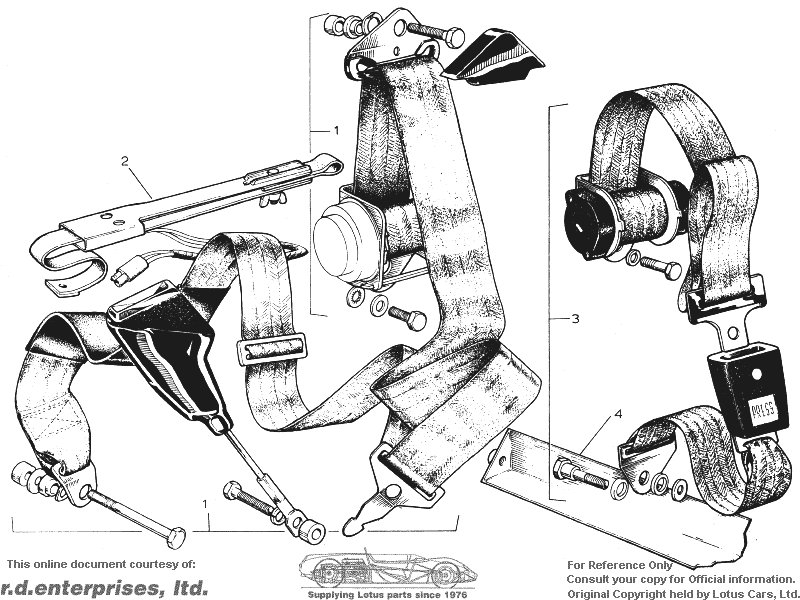

Section VF -- Trim - Seat Belts


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
VF 1Seat Belt Assy, FrontA075V0176W* 2
Seat Belt Assy, Front, DriverA075V1085W* 1
Seat Belt Assy, Front, DriverA075V1084W* 1
Seat Belt Assy, Front, DriverA076V1482F * 1
Seat Belt Assy, Front, DriverA076V1484F * 11
Seat Belt Assy, Front, PassengerA075V0178W* 1
Seat Belt Assy, Front, PassengerA075V0177W* 1
Seat Belt Assy, Front, PassengerA076V1483F * 1
Seat Belt Assy, Front, PassengerA076V1485F * 11
VF 2 Seat SensorA075M6086Z* 2Prior to Unit No.0330B
Seat Belt Warning ControlA075M6153F** 1From Unit No.0330B
VF 3Seat Belt, RearA075V0611W** 2Not 520
Seat Belt, Rear A075V1191W** 2 Not 520
Seat Belt, RearA075V1190W** 2 Not 520
VF 4Reinforcing Plate, Rear Seat BeltsA075V0492Z**2 Not 520
Mounting, Upper Rear Seat BeltsA075V0491Z**2 Not 520
Not.illus.Cover, Seat Belt Buckle.A075V1091Z**2
