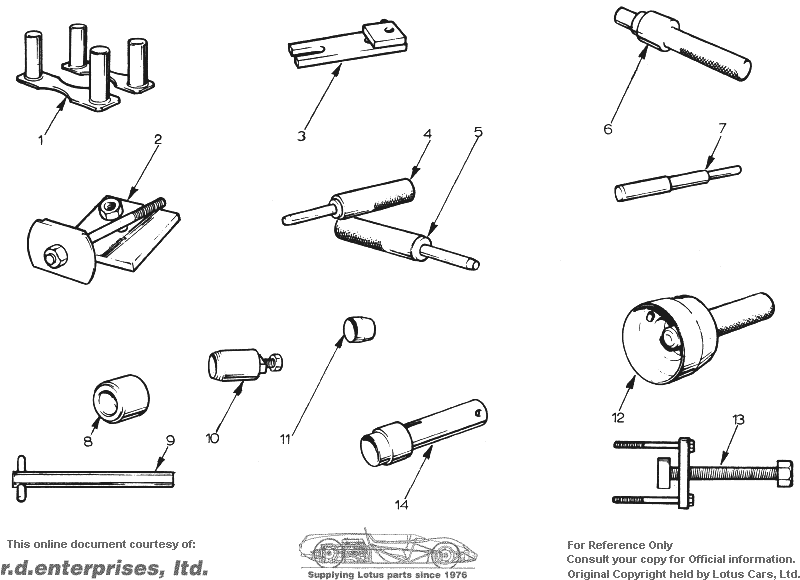

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| Engine Special Tool Kit Assy. | T000L0002A | * | * | AR | | | | |
| TB 1 | Cylinder Liner Clamps | T000T0002A | * | * | AR | | | | 2 off per kit |
| TB 2 | Cylinder Liner Extractor | T000T0012A | * | * | AR | | | | 1 off per kit |
| TB 3 | Cylinder Liner Nip Gauge | T000G0003A | * | * | AR | | | | 1 off per kit |
| TB 4 | Drift, Inlet Valve Seat | T000T0093A | * | * | AR | | | | 1 off per kit |
| TB 5 | Drift, Exhaust Valve Seat | T000T0094A | * | * | AR | | | | 1 off per kit |
| TB 6 | Inserter, Spigot Bearing | T000T0242A | * | * | AR | | | | 1 off per kit |
| TB 7 | Drift, Valve Guide | T000T0004A | * | * | AR | | | | 1 off per kit |
| TB 8 | Inserter, Camshaft Oil Seal | T000T0010A | * | * | AR | | | | 1 off per kit |
| TB 9 | Spanner, Oil Pick-up Pipe Union | T000T0083A | * | * | AR | | | | 1 off per kit |
| TB 10 | Extractor, Camshaft Oil Seal | T000T0011A | * | * | AR | | | | 1 off per kit |
| TB 11 | Sleeve, Camshaft Oil Seal | T000T0072A | * | * | AR | | | | 1 off per kit |
| TB 12 | Pilot, Rear Oil Seal Crankshaft | T000T0084A | * | * | AR | | | | 1 off per kit |
| TB 13 | Puller, Crankshaft Pulley | T000T0170A | * | * | AR | | | | 1 off per kit |
| TB 14 | Pilot, Front Cover | T000T0009A | * | * | AR | | | | 1 off per kit |
| Clips, Tool Retention, Set of, C/W Fixings. | T00OL0005A | * | * | AR | | | | |
| Shadow Sheet, Self Adhesive | T000T0271A | * | * | AR | | | | |
| Tool Board | T000T0270A | * | * | AR | | | | |
| Not illus. | Tool, Belt Adjusting. | T000T0320A | * | * | * | | | AR | Fed.Air Pump Driven by Toothed B *? |
| Not illus. | Adaptor & Sample Pipe, Analyser | T000T0321A | * | * | * | | | AR | 75 Fed. On. |
| Not illus. | Plug | T000T0322A | * | * | * | | | AR | Air Pump Outlet Hose. |
