PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  | REMARKS |

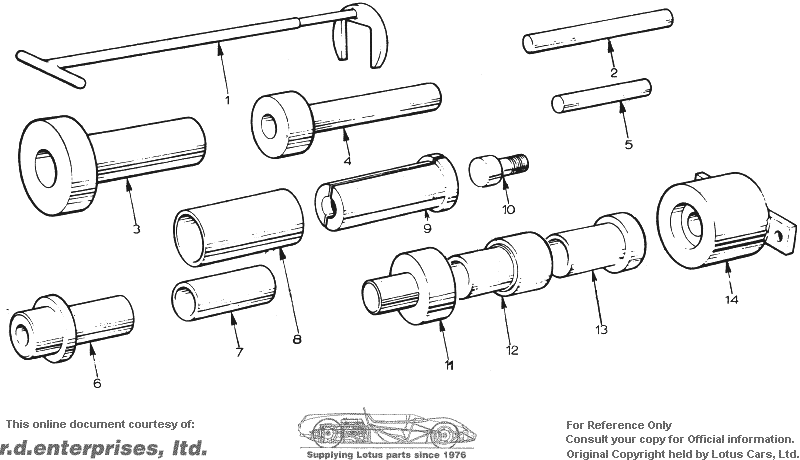

| Lotus 5-Speed Gearbox Special Took Kit Assy. | T000L0003A | | | |
| TC 1 | Spanner Gearlever Cup | T000T0032A | 1 | | |
| TC 2 | Dummy Selector Shaft | T000T0029A | 1 | | |
| TC 3 | Inserter. 3rd Motion Shaft and Layshaft Rear Bearing | T000T0025A | 1 | | |
| TC 4 | Drift Layshaft Front Bearing | T000T0019A | 1 | | |
| TC 5 | Dummy Selector Shaft | T000T0014A | 2 | | |
| TC 6 | Dummy Bearing Layshaft Front | T000T0028A | 1 | | |
| TC 7 | Sleeve 3rd Motion Shaft | T000T0033A | 1 | | |
| TC 8 | Sleeve 1st Motlon Shaft | T000T0060A | 1 | | |
| TC 9 | Collet 1st Mot,on Shaft | T000T0059A | 2 | | |
| TC 10 | Adaptor Ist Motion Shaft | T000T0061A | 1 | | |
| TC ll | Inserter Front Cover O11 Seal | T000T0024A | 1 | | |
| TC 12 | Inserter Output Shaft Bearing | T000T0074A | 1 | | |
| TC 13 | Inserter Output Shaft Oil Seal | T000T0075A | 1 | | |
| TC 14 | Dummy 1st Motion Shaft Assy. | T000T0031A | 1 | | |
| TC 15 | Bolt, 1st Motion Shaft Removal | T000T0080A | 1 | | |
| Clips. Tool Retention. Set Off. c/w Fixings | T000L0004A | 1 | | |
| Shadow Sheet Self Adhesive | T000T0272A | | | |
| Tool Board | T000T0270A | | | |
