Esprit S1, S2, S2.2 PARTS MANUAL

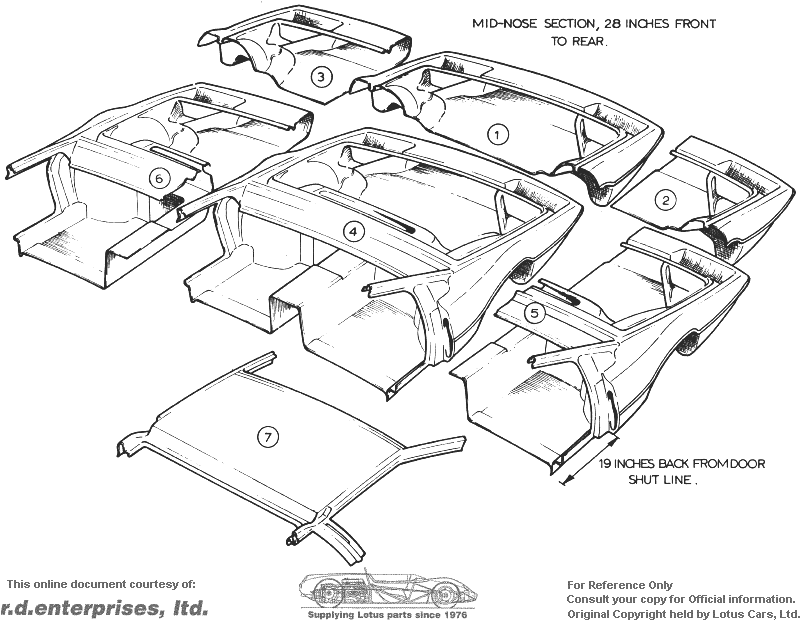

Section BB -- Body -- Fiberglass (Front)


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
BB 1Body Section, Mid-Nose, Full SectionA079B6014K* 11 Single Motor Headlamps.
Body Section, Mid-Nose, Full SectionB079B6014K* 11 Two Motor Headlamps.
Body Section, Mid-Nose, Full SectionA079M4156K * 11
Body Section, Mid-Nose, Full SectionA079B6017K* 1Single Motor Headlamps.
Body Section, Mid-Nose, Full SectionB079B6017K* 1Two Motor Headlamps.
Body Section, Mid-Nose, Full SectionA079M4157K * 1
BB 2Body Section, Mid-Nose, RH SectionA079B6015K* 11 Single Motor Headlamps.
Body Section, Mid-Nose, RH SectionB079B6015K* 11 Two Motor Headlamps.
Body Section, Mid-Nose, RH SectionA079B4158K * 11
Body Section, Mid-Nose, RH SectionA079B6018K* 1Single Motor Headlamps.
Body Section, Mid-Nose, RH SectionB079B6018K* 1Two Motor Headlamps.
Body Section, Mid-Nose, RH SectionA079B4159K * 1
BB 3Body Section, Mid-Nose, LH SectionA079B6016K* 11 Single Motor Headlamps.
Body Section, Mid-Nose, LH SectionB079B6016K* 11 Two Motor Headlamps.
Body Section, Mid-Nose, LH SectionA079M4160K * 11
Body Section, Mid-Nose, LH SectionA079B6019K* 1Single Motor Headlamps.
Body Section, Mid-Nose, LH SectionB079B6019K* 1Two Motor Headlamps.
Body Section, Mid-Nose, LH SectionA079B4161K * 1
BB 4Body Section, Full-Nose, Full SectionA079B6020K* 1 Single Motor Headlamps.
Body Section, Full-Nose, Full SectionB079B6020K* 1 Two Motor Headlamps.
Body Section, Full-Nose, Full SectionA079B4162K * 1 Heater. Up to Unit No. 805G, Inc.
Body Section, Full-Nose, Full SectionA079B4218K * 1 Heater. From Unit No. 806G Inc.
Body Section, Full-Nose, Full SectionA079B4196K * 1 Air Cond.
Body Section, Full-Nose, Full SectionA079B6023K* 1 Single Motor Headlamps.
Body Section, Full-Nose, Full SectionB079B6023K* 1 Two Motor Headlamps.
Body Section, Full-Nose, Full SectionA079B4163K * 1 Heater- up to Unit No. 292J, Inc.
Body Section, Full-Nose, Full SectionA079B4219K * 1 Heater- from Unit No. 293J, Inc.
Body Section, Full-Nose, Full SectionA079B4198K * 1 Air Cond.
Body Section, Full-Nose, Full SectionA079B6026K* 1Single Motor Headlamps.
Body Section, Full-Nose, Full SectionB079K6026K* 1Two Motor Headlamps.
Body Section, Full-Nose, Full SectionA079B4164K * 1Heater. Up to Unit Nos. 844H, Inc.
Body Section, Full-Nose, Full SectionA079B4220K * 1Heater. From Unit Nos. 845H, 100S & 100T, Inc.
Body Section, Full-Nose, Full SectionA079B4197K * 1Air Cond.
BB 5Body Section, Full-Nose, RH SectionA079B6021K* 1 Single Motor Headlamps.
Body Section, Full-Nose, RH SectionB079B6021K* 1 Two Motor Headlamps.
Body Section, Full-Nose, RH SectionA079B4165K * 1 Heater. Up to Unit No. 805G, Inc.
Body Section, Full-Nose, RH SectionA079B4221K * 1 Heater. From Unit No. 806G, Inc.
Body Section, Full-Nose, RH SectionA079B4206K * 1 Air Cond.
Body Section, Full-Nose, RH SectionA079B6024K* 1 Single Motor Headlamps.
Body Section, Full-Nose, RH SectionB079B6024K* 1 Two Motor Headlamps.
Body Section, Full-Nose, RH SectionA079B4166K * 1 Heater. Up to Unit No. 292J, Inc.
Body Section, Full-Nose, RH SectionA079B4222K * 1 Heater. From Unit No. 293J, Inc.
Body Section, Full-Nose, RH SectionA079B4207K * 1 Air Cond.
Body Section, Full-Nose, RH SectionA079B6027K* 1Single Motor Headlamps.
Body Section, Full-Nose, RH SectionB079B6027K* 1Two Motor Headlamps.
Body Section, Full-Nose, RH SectionA079B4167K * 1Heater. Up to Unit No. 844H, Inc.
Body Section, Full-Nose, RH SectionA079B4223K * 1Heater. From Unit No. 845H, 100S & 100T, Inc.
Body Section, Full-Nose, RH SectionA079B4208K * 1Air Cond.
BB 6Body Section, Full-Nose, LH SectionA079B6022K* 1 Single Motor Headlamps.
Body Section, Full-Nose, LH SectionB079B6022K* 1 Two Motor Headlamps.
Body Section, Full-Nose, LH SectionA079B4168K * 1 Heater. Up to Unit No. 805G, Inc.
Body Section, Full-Nose, LH SectionA079B4224K * 1 Heater. From Unit No. 806G, Inc.
Body Section, Full-Nose, LH SectionA079B4209K * 1 Air Cond.
Body Section, Full-Nose, LH SectionA079B6025K* 1 Single Motor Headlamps.
Body Section, Full-Nose, LH SectionB079B6025K* 1 Two Motor Headlamps.
Body Section, Full-Nose, LH SectionA079B4169K * 1 Heater. Up to Unit No. 292J, Inc.
Body Section, Full-Nose, LH SectionA079B4225K * 1 Heater. From Unit No. 293J, Inc.
Body Section, Full-Nose, LH SectionA079B4210K * 1 Air Cond.
Body Section, Full-Nose, LH SectionA079B6028K* 1Single Motor Headlamps.
Body Section, Full-Nose, LH SectionB079B6028K* 1Two Motor Headlamps.
Body Section, Full-Nose, LH SectionA079B4170K * 1Heater. Up to Unit No. 805G, Inc.
Body Section, Full-Nose, LH SectionA079B4226K * 1Heater. From Unit No. 806G, 100S & 100T, Inc.
Body Section, Full-Nose, LH SectionA079EH211K * 1Air Cond.
BB 7Body Section, RoofA079B6041K**1 Up to Unit Nos. 600G, 830H, 227J, 134S & 121T, Inc. (i.e. cars with removeable rear windows).
Body Section, RoofA079B4199K**1 From Unit Nos. 601G, 831 H, 228J, 135S, & 122T, Inc. (i.e. cars with direct glazed rear windows).
