Esprit S1, S2, S2.2 Parts Manual -- Section BE

Esprit S1, S2, S2.2 PARTS MANUAL

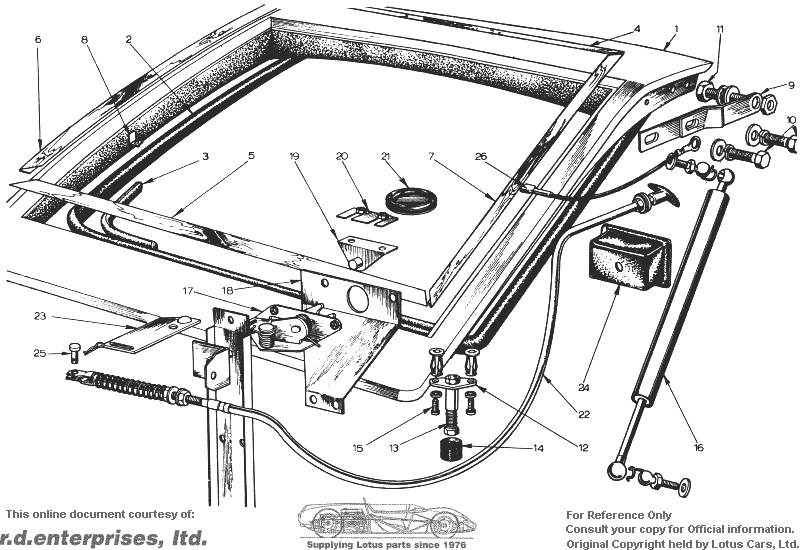

Section BE -- Body -- Tailgate


PLATE Ref. No.	DESCRIPTION	PART NO.							REMARKS
BE 1	Tailgate Panel Assy	A079B4019J	*	*	1
BE 2	Seal, Tailgate	A079U4006F	*	*	1
BE 3	Secondary Seal, Tailgate	A079B4074V	*	*	2
BE 4	Finisher, Top	A079LM053F	*	*	1
BE 5	Finisher, Bottom	A079LM054F	*	*	1
BE 6	Finisher, LH	A079U4055F	*	*	1
BE 7	Finisher, RH	A079LM056F	*	*	1
	Corner Cllp, Top	A079U4058F	*	*	2
	Corner Cllp, Bottom	A079U4057F	*	*	2
BE 8	Mounting Clips	A079U4052F	*	*	18				Replaced by Adhesive
	Pop Rivets	A075W6067ZL	*	*	18				Replaced by Adhesive
	Adhesive 3M8101, Pt A	A075U6073V	*	*	1				10cc, Replaces Mounting Clips
	Adhesive 3M8101, Pt B	A075U6074V	*	*	1				10cc, Replaces Mounting Clips
	Primer	A075B6097V	*	*	1				5cc, Replaces Mounting Clips
	Primer Activator	A075B6098V	*	*	1				5cc, Replaces Mounting Clips
BE 9	Hinge Blade, RH	D079LM062K	*	*	1
	Hinge Blade, LH	D079U4061K	*	*	1
BE 10	Bolt	A075W1039ZG	*	*	4
	Washer, Plain	A075W4020ZB	*	*	4
	Washer, Spring	A075W4036ZE	*	*	4
Not Illus.	Hinge Tapping Plate, RH	B079U4198K	*	*	1
Not Illus.	Hinge Tapping Plate, LH	B079U4063K	*	*	1
BE 11	Bolt, Pivot, Tailgate Hinge	A079U4516F	*	*	2
	Nut, M10, Nyloc	A075W3011ZD	*	*	2
	Pivot Bush	A079U4064F	*	*	2
BE 12	Plunger Housing, Tailgate Lift	B079U4259F	*		2				Replaced by Single Centre Fixing. See Bulletin 1977/11.
BE 13	Spring, Tailgate Lift	A079U4262F	*		2				Replaced by Single Centre Fixing. See Bulletin 1977/11.
BE 14	Rubber Buffer, Tailgate Lift	X036B6030Z	*		2				Replaced by Single Centre Fixing. See Bulletin 1977/11.
Not Illus.	Plunger Lift, Bracket, LHD	B079U4439F	*	*	1				Replaces two Plunger system. See Bulletin 1977/11.
Not Illus.	Plunger Lift, Bracket, RHD	B079U4440F	*	*	1				Replaces two Plunger system. See Bulletin 1977/11.
Not Illus.	Jack Spring	A079U6022F	*	*	1				Replaces two Plunger system. See Bulletin 1977/11.
Not Illus.	Bolt Ľ" UNF x 3˝"	A079W2098F	*	*	1				Replaces two Plunger system. See Bulletin 1977/11.
Not Illus.	Nut, Nyloc, Ľ" UNF	A075W3053F	*	*	1				Replaces two Plunger system. See Bulletin 1977/11.
BE 16	Gas Strut, Tailgate	A079U6013F	*	*	2
	Gas Strut Mounting Bracket	A079U4338K	*	*	2
BE 17	Tailgate Lock Assy	A079U6015F	*	*	1
	Tailgate Lock Assy	A079U6016F	*	*			1	1
BE 18	Bracket, Tailgate Lock, RHD	A079U4298K	*	*		1
	Bracket, Tailgate Lock, LHD	A079U4302K	*	*			1	1
BE 19	Striker, Tailgate Lock	D079U4060K	*	*	1
BE 20	Tapping P/ate, Striker	A079U4299K	*	*	1
	Shim, Tailgate Striker	A079U4300K	*	*	1
BE 21	Grommet	A054J6005ZC	*	*	1
	Release Lever, Tailgate	A079U4195K	*	*	1
BE 22	Cable, Tailgate Release	A079U4083F	*	*	1
BE 23	Lever, Tailgate Lock, RHD	A079U4084K	*	*		1
	Lever, Tailgate Lock, LHD	A079U4301K	*	*			1	1
	Screw, Lever to Lock	A075W1000ZK	*	*	1
	Abutment, Release Cable	A079U4303K	*	*	1
	Retainer, Tailgate Lock Pull	A079U4307K	*	*	1
BE 24	Insert, Tailgate Release Handle	B079U4308K	*	*	1
BE 25	Clevis Pin	A075W6030ZB	*	*	1
BE 26	Lead, Heated Rear Screen	A079M4032F	*	*	1
	Support Bracket, Rear Panel	C079U4131F	*	*	1
