Esprit S1, S2, S2.2 Parts Manual -- Section BJA

Esprit S1, S2, S2.2 PARTS MANUAL

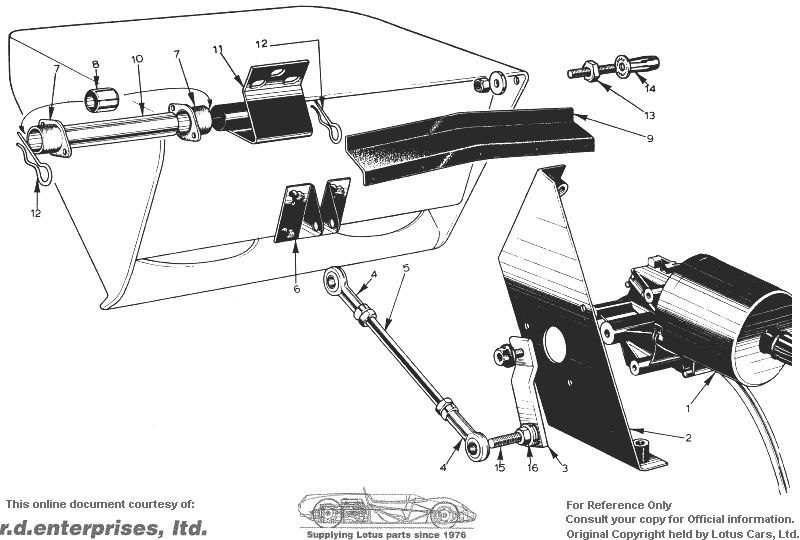

PLATE Ref. No.	DESCRIPTION	PART NO.				REMARKS
BJA 1	Headlamp Motor	B079M6047F	*	*	2
	Cable Clip	A079W6115F	*	*	2
BJA 2	Bracket, Headlamp Motor Mounting	A079U4453K	*	*	2
	Screw, ź" UNF x ž"	A075W1005ZB	*	*	8	Motor Bracket to Body
	Washer	A075W4015ZK	*	*	8
BJA 3	Rotary Link, Headlamp Motor	B079M4055F	*	*	2
BJA 4	Rod End	A079U6031F	*	*	4
	Nut, ź" UNF	A075W3038F	*	*	4	Rod Ends to Connecting Link
BJA 5	Connecting Link - H/L Actuation	A079U4455F	*	*	2
BJA 6	Bracket, Rod End to H/L Pod	A079U4454F	*	*	4
	Nut, M6, Nyloc	A075W3009ZE	*	*	8	Bracket to Pods
	Washer	A075W4015ZK	*	*	8
	Bearing Housing, LH Pod	A079U4451F	*	*	2
BJA 7	Bearing Housing, RH Pod	A079U4452F	*	*	2
BJA 8	Glacier Bush	A079U6030F	*	*	4
BJA 9	Water Shield	A079U4459K	*	*	2
BJA 10	Hinge Pin, Pod & Bonnet	A079U4456F	*	*	2
BJA 11	Hinge Blade, RH	B079U4457F	*	*	1
	Hinge Blade, LH	A079U4480F	*	*	1
BJA 12	Spring Clip	A079W6177F	*	*	4
BJA 13	Pod Outer Pivot Pin	A079U4073F	*	*	2
BJA 14	Jacknut, M6	A075W3024ZJ	*	*	2
8JA 15	Screw, M6 x 30 mm	A075W1032ZE	*	*	2	Rotary Link
BJA 16	Locknut, M6	A075W3020ZE	*	*	2
