Esprit S1, S2, S2.2 PARTS MANUAL

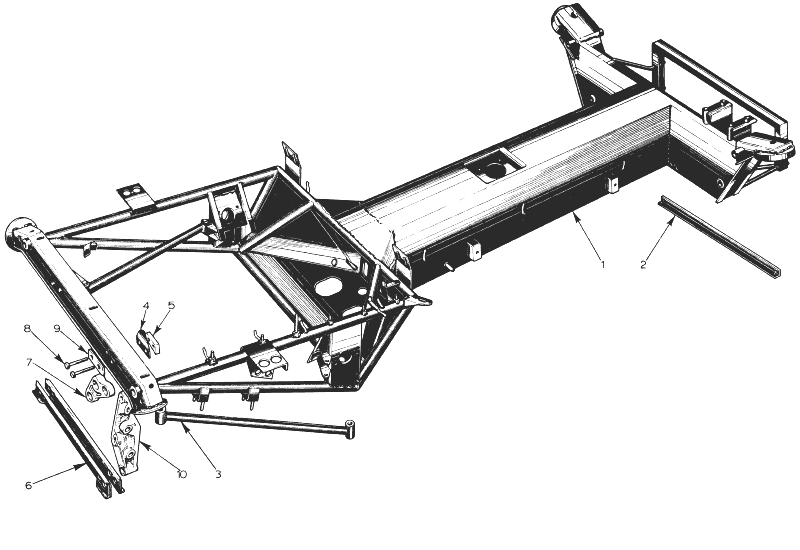

Section AA -- Chassis


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
AA 1Chassis Assembly, RHDJ079A4000K** 1
Chassis Assembly, LHDC079A4200K** 1
Chassis Assembly, LHDD079A4100K** 1
AA 2Closing Plate/Mounhng BracketAO79A4056K**1
AA 3Bracing Strut AssemblyB079A4104K**2
Bolt, M10 x 55A079W2057F**4
Nut, NylocA075W3011ZD**4
AA 4Bracing Strut Bracket, RHA079A4102F**1
Bracing Strut Bracket, LHA079A4101F**1
AA 5Tapping Plate, Bracing StrutA079A4103F**2
AA 6Crossbeam, Rear Suspension AssemblyB079D4045C**1
Washer, PennyA075W4008ZH**4 Crossbeam to Bracket
AA 7Gearbox Mounting, 3 HoleA079F4002F**2
Rubber MountingA079F6022P**2
Rubber MountingA079F6021P**4
AA 8Bolt " UNF x 3"A079W2022F**4 Bracket, 3 hole & strut bracket to chassis
AA 9Tab WasherA079F4024F**2
Bolt " UNF x 4"A079W2023F**2 Caliper Suspension Brkt to Brkt 3 hole
AA 10Caliper Suspension Bracket, RHB079F4004G**1
Caliper Suspension Bracket, LHB079F4003G**1
Bolt, 14 mmx 90 mm, Brkt to GearboxA079F6013F**2
Bolt, 14 mm x 60 mm, Brkt to GearboxA079F6014F**2
Washer, PlainA079W4054F**4
Washer, SpringA079W4068F**4
Anti-Corrosion SprayA075A6009V**1 Techyl 506, 400 cc
