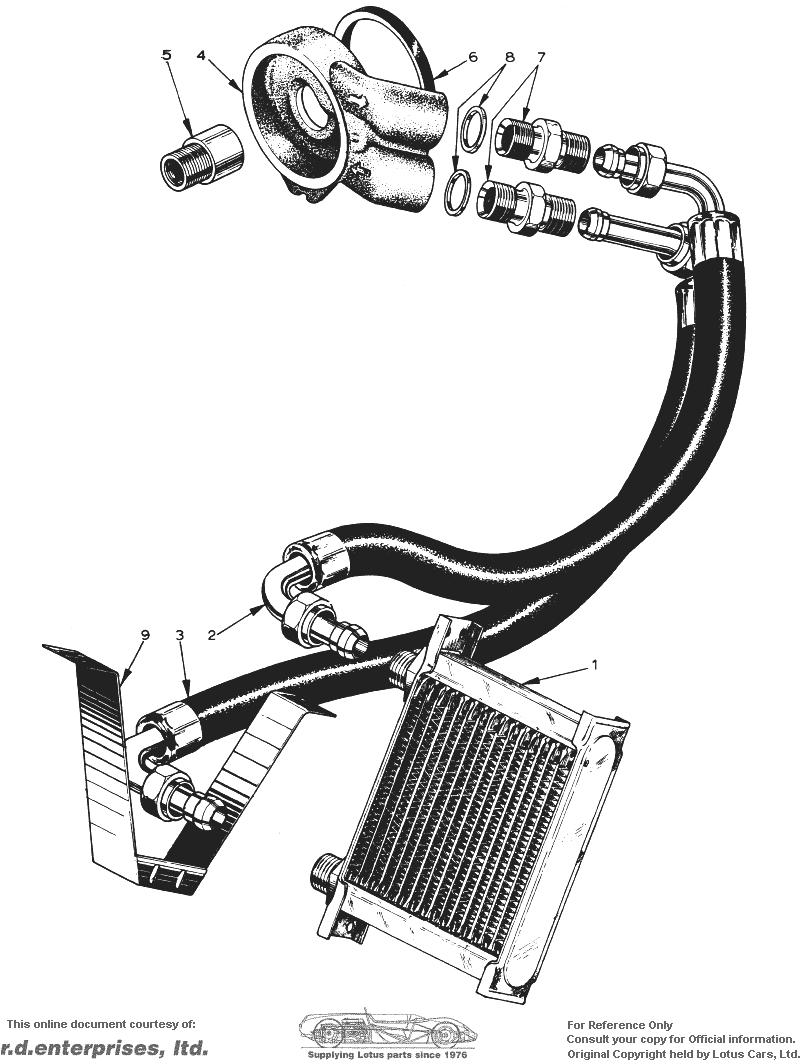

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| KB 1 | Oil Cooler | A907E6297F | * | * | 1 | | | | Oil Coolers fitted to all Federal and 288G on and 134J on, approx. |
| KB 2 | Pipe Assy, Cooler Inlet | A907E6298F | * | * | 1 | | | | Fits to angled adaptor A907E0579F |
| Pipe Assy, Cooler Inlet | B907E1257F | | * | 1 | | | | Fits to straight adaptor A907E1248K |
| KB 3 | Pipe Assy, Cooler Outlet | A907E6299F | * | * | 1 | | | | Fits to angled adaptor A907E0579F |
| Pipe Assy, Cooler Outlet | B907E1258F | | * | 1 | | | | Fits to straight adaptor A907E1248K |
| KB 4 | Adaptor, Aux, Housing, Angled. | A907E0579F | * | * | 1 | | | | |
| Adaptor, Aux, Housing, Straight | A907E1248K | | * | 1 | | | | |
| KB 5 | Extension, Threaded, Aux. Housing | A907E0571F | * | * | 1 | | | | |
| KB 6 | Sealing Ring, Square Section | A907E6167F | * | * | 1 | | | | |
| KB 7 | Adaptor, Pipe Assy | A907E6300F | * | * | 2 | | | | |
| KB 8 | Sealing Washer | B907E6301F | * | * | 2 | | | | |
| KB 9 | Oil Cooler Support Bracket. | A079A4112K | * | * | 1 | | | | |
