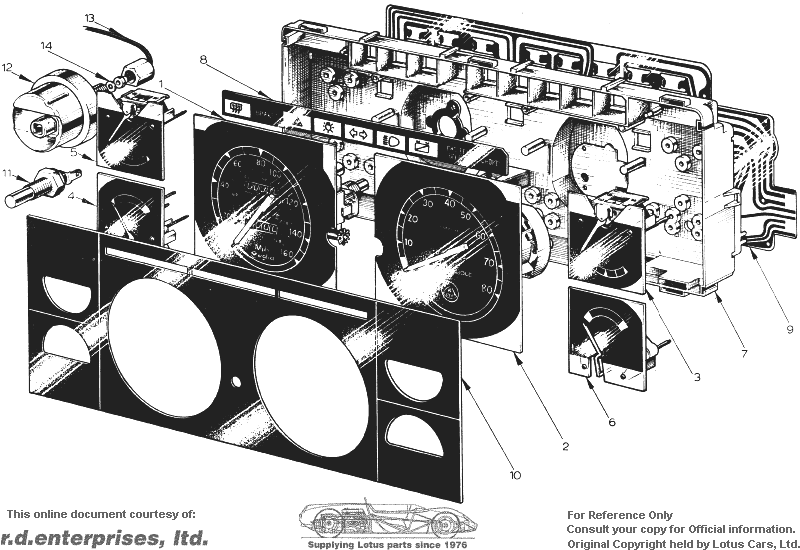

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| Instrument Cluster, MPH | B079N6000F | * | | | 1 | | 1 | |
| Instrument Cluster, KPH | A079N6017F | * | | | | 1 | | |
| MD 1 | Speedometer, MPH | A079N6005F | * | | | 1 | | 1 | |
| Speedometer, KPH | A079N6018F | * | | | | 1 | | |
| MD 2 | Tachometer | A079N6006F | * | | 1 | | | | |
| MD 3 | Fuel Gauge | A079N6007F | * | | 1 | | | | |
| MD 4 | Temperature Gauge | A079N6009F | * | | 1 | | | | |
| MD 5 | Oi1 Pressure Gauge | A079N6008F | * | | 1 | | | | |
| MD 6 | Voltmeter | A079N6010F | * | | 1 | | | | |
| MD 7 | Housing | A079N6011F | * | | 1 | | | | |
| MD 8 | Warning Lights Block | A079N6012F | * | | 1 | | | | |
| MD 9 | Printed Circuit | A079N6013F | * | | 1 | | | | |
| Trip Button | A079N6015F | * | | 1 | | | | |
| Bulb, 12v | A050M6188ZA | * | | 10 | | | | |
| MD 10 | Mask, Instrument Panel | B079U4203F | * | | | 1 | 1 | | |
| Mask, Instrument Panel | A079U4378F | * | | | | | 1 | |
| Screen, Instrument Panel | B079U4204F | * | | 1 | | | | |
| Clips, Instrument Panel Retaining | A079U6017F | * | | 6 | | | | |
| MD 11 | Water Temperature Transmitter | A079N6001F | * | * | 1 | | | | |
| MD 12 | Oil Pressure Transmitter | A079N6002F | * | | 1 | | | | |
| MD 13 | Oil Connector Pipe | C079N4000F | * | | 1 | | | | |
| MD 14 | Leather Washer | A036N6000ZD | * | | 1 | | | | |
| Speedo Cable (Long) | A079N6019F | * | | 1 | | | | See Bulletin 1977/15 |
| Speedo Cable (Short) | A079N6020F | * | * | 1 | | | | See Bulletin 1977/15 |
| P Clip | A075Q6013ZF | * | * | 1 | | | | |
| Speedo Right Angled Drive | A079N6004F | * | * | 1 | | | | |
