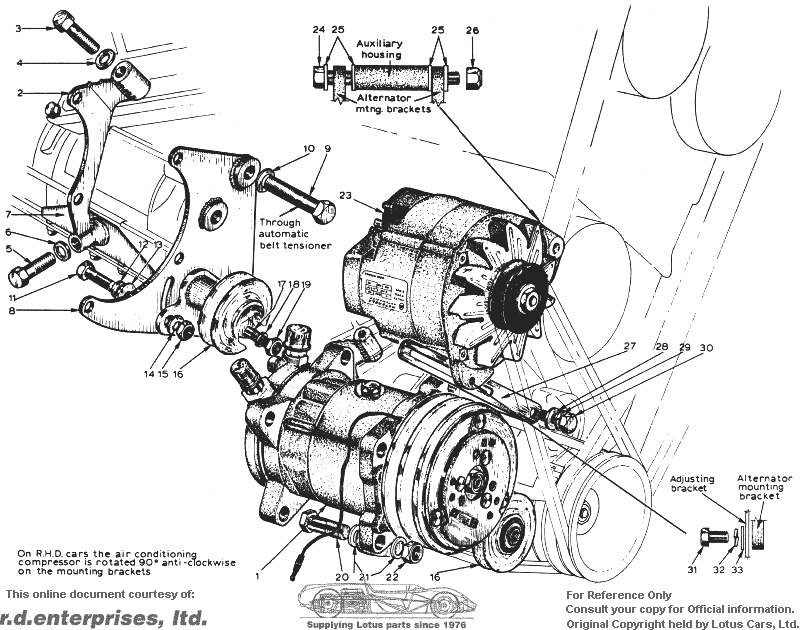

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| EK 1 | Air Conditioning Compressor | A079P6010F | | * | 1 | | | | |
| EK 2 | Compressor Support Bracket, Rear | A907E1270F | | * | 1 | | | | |
| EK 3 | Bolt, M8 x 60 | A075W2043ZB | | * | 1 | | | | |
| EK 4 | Washer, Plain | A075W4020ZB | | * | 1 | | | | |
| EK 5 | Bolt, M10 x 40 | A075W2052Z | | * | 1 | | | | |
| EK 6 | Washer, Spring | A075W4037ZK | | * | 1 | | | | |
| EK 7 | Compressor Mounting Bracket | A907E1271F | | * | 1 | | | | |
| EK 8 | Compressor Support Bracket, Front | A907E1233F | | * | 1 | | | | |
| EK 9 | Bolt, M10 x 70 | A075W2058ZL | | * | 1 | | | | |
| EK 10 | Washer, Spring | A075W4037ZK | | * | 1 | | | | |
| Washer, Plain | A075W4024ZL | | * | 1 | | | | |
| EK 11 | Bolt, M6 x 30 | A075W1032ZE | | * | 1 | | | | |
| EK 12 | Washer, Spring | A075W4035ZL | | * | 1 | | | | |
| EK 13 | Washer, Special, Conical | A907E0688ZC | | * | 1 | | | | |
| EK 14 | Washer, Plain | A075W4024ZL | | * | 1 | | | | |
| EK 15 | Nut, Nyloc, 6mm | A075W3009ZE | | * | 1 | | | | |
| EK 16 | Tensioner, Compressor "V" Belt | A907E0898F | | * | 1 | | | | |
| EK 17 | Stud | A907E1197F | | * | 1 | | | | |
| EK 18 | Washer, Plain | A075W4024ZL | | * | 1 | | | | |
| EK 19 | Nut, Nyloc, 6mm | A075W3009ZE | | * | 1 | | | | |
| EK 20 | Bolt, M10 x 35 | A075W2051ZJ | | * | 5 | | | | |
| EK 21 | Washer, Plain | A075W4024ZL | | * | 10 | | | | |
| EK 22 | Nut, Nyloc | A075W3011ZD | | * | 5 | | | | |
| EK 23 | Alternator, Motorola, 70 amp. | A907E6320F | | * | 1 | | | | |
| EK 24 | Bolt, M8 x 127 | A075W2050ZD | | * | 1 | | | | |
| EK 25 | Washer, Plain | A075W4020ZB | | * | 4 | | | | |
| EK 26 | Washer, Spring | A075W3010ZK | | * | 1 | | | | |
| EK 27 | Adiustlng Strap | B907E1238F | | * | 1 | | | | |
| EK 28 | Washer, Plain | A075W4020ZB | | * | 1 | | | | |
| EK 29 | Washer, Spring | A075W4036ZE | | * | 1 | | | | |
| EK 30 | Bolt, M8 x 30 | A075W1038ZB | | * | 1 | | | | |
| EK 31 | Bolt | A075W1011ZK | | * | 1 | | | | |
| EK 32 | Washer, Spring | A075W4036ZE | | * | 1 | | | | |
| EK 33 | Washer, Plain | A075W4020ZB | | * | 1 | | | | |
