Esprit S1, S2, S2.2 Parts Manual -- Section LB

Esprit S1, S2, S2.2 PARTS MANUAL

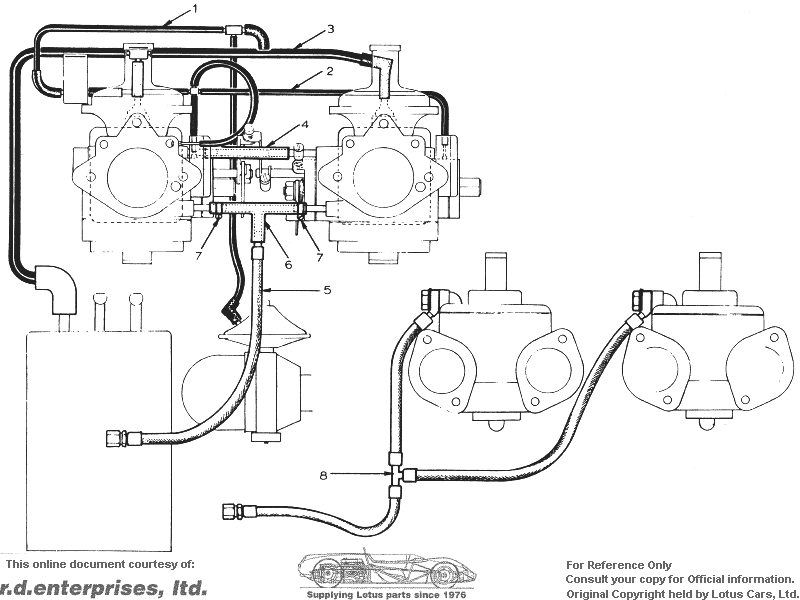

PLATE Ref. No.	DESCRIPTION	PART NO.						REMARKS
LB 1	Pipe Assembly, Bypass Valve	A907E0838WH	*	*			1
LB 2	Vacuum Pipe Assembly	A907E0891F	*	*			1
	Vacuum Pipe Assembly	B907E0891F		*			1	Used when control valve is not fitted
	3/16" O/D Pipe, Nylon	A907E0544Z	*	*			AR
	Ľ" O/D Pipe, Nylon	A907E0546Z	*	*			AR
LB 3	Pipe, Cannister to Carbs	A079L4014F	*	*			1
	Hose Clip	A907E6314F	*	*			1
LB 4	Tube, Starter Connection	A907E1225K	*	*			1
	Hose Clips	A907E6314F	*	*			2
LB 5	Pipe Assembly	A079E4028F	*				1	Replaced by following two items.
	Pipe/Pump Adaptor	A079L6003F	*				1	Replaced by following two items.
	Pipe Assembly	B079E4028F	*	*			1
	Pipe/Pump Adaptor	A079L6004F	*	*			1
LB 6	Tee Piece	A907E6152ZA	*	*			1
LB 8	Pipe Assembly	C907E0881F	*	*	1	1
	Pipe/Pump Adaptor	A079L6004F	*	*	1	1
