PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| Not Illus. | Heater Assy. | A079P6001K | * | | 1 | | | | Up to Unit Nos - 213G, 215G - 233 *? 235G - 239G, 241G - 244G & 189H *? |
| Not Illus. | Cable Assy, Blend | A079P4001F | * | | 1 | | | | Up to Unit Nos - 213G, 215G - 233 *? 235G - 239G, 241G - 244G & 189H *? |
| Not Illus. | Cable Assy, Demist/Footwell | A079P4000F | * | | 1 | | | | Up to Unit Nos - 213G, 215G - 233 *? 235G - 239G, 241G - 244G & 189H *? |
| Not Illus. | Motor | A050M6070ZG | * | | 1 | | | | Up to Unit Nos - 213G, 215G - 233 *? 235G - 239G, 241G - 244G & 189H *? |
| Not Illus. | Resistor - 4BR | A076M6007F | * | | 1 | | | | Up to Unit Nos - 213G, 215G - 233 *? 235G - 239G, 241G - 244G & 189H *? |
| Not Illus. | Heater Ashy. | A079P4030F | * | | 1 | | | | Unit Nos. - 214G, 234G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H - 289H, 100J up to 119 *? all Inc. |
| Not Illus. | Mode Control Cable, RHD | A079P4021F | * | | | 1 | | | Unit Nos. - 214G, 234G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H - 289H, 100J up to 119 *? all Inc. |
| Not Illus. | Mode Control Cable, LHD | A079P4022F | * | | | | 1 | 1 | Unit Nos. - 214G, 234G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H - 289H, 100J up to 119 *? all Inc. |
| Not Illus. | Water Valve | A079P4029E | * | | 1 | | | | Unit Nos.- 214G, 234G, 240G & 2 *? up to 2661G, 263G & 264G; 190H up *? 283H & 285H to 289H, 100J Up to 11 *? all Inc. If fitted. |
| Not Illus. | Cable Control, Water Valve | A079P4032F | * | | 1 | | | | Unit Nos.- 214G, 234G, 240G & 2 *? up to 2661G, 263G & 264G; 190H up *? 283H & 285H to 289H, 100J Up to 11 *? all Inc. If fitted. |
| Not Illus. | Hot/Cold Control Cable RHD | A079P4023F | * | | | 1 | | | Unit Nos. - 214G, 243G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H, 100J up to 119J, all I *? If Water Valve Not Fitted. |
| Not Illus. | Hot/Cold Control Cable LHD | A079P4024F | * | | | | 1 | 1 | Unit Nos. - 214G, 243G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H, 100J up to 119J, all I *? If Water Valve Not Fitted. |
| Not Illus. | Motor | X050M6070ZG | * | | 1 | | | | Unit Nos. - 214G, 234G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H to 289H, 100J up to 11 *? all Inc. |
| Not Illus. | Resistor 4BR | A076M6007F | * | | 1 | | | | ,Unit Nos. - 214G, 234G, 240G & 2 *? up to 261G, 263G & 264G, 190H up *? 283H & 285H to 289H, 100J up to 11 *? all Inc. |
| | | | | | | | | Unit Nos. 262G & 265G on up to 805G *? 284H & 290H on up to 845H, 120J on *? to 292J, 100S on & 100T on, All Inc. |

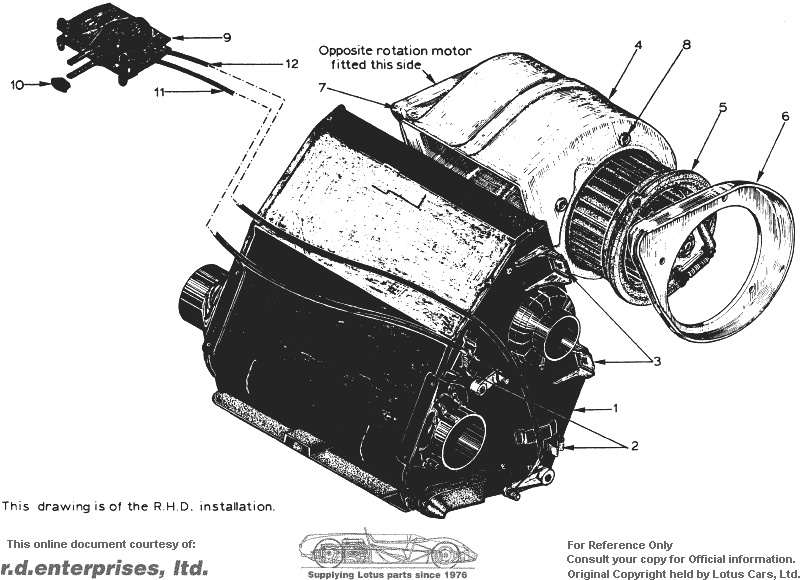

| PA 1 | Heater Assy. | A079P4153K | * | * | | 1 | | | |
| Heater Assy. | A079P4071K | * | * | | | 1 | 1 | |
| Not Illus. | Heater Element | A075P6055F | * | * | 1 | | | | |
| PA 2 | Cable Clip | A079W6137F | * | * | 2 | | | | |
| PA 3 | Clip, Retaining Screw | A079W6165F | * | * | 4 | | | | |
| Not Illus. | Retaining Screw | A079W6166F | * | * | 4 | | | | |
| Not Illus. | Washer, Retaining Screw | A075W4016ZD | * | * | 4 | | | | |
| PA 4 | Blower Assy. | A079P4072K | * | * | 1 | | | | |
| PA 5 | Blower Motor and Fan | A075P6058F | * | * | 1 | | | | C.C.W. |
| Not Illus. | Blower Motor and Fan | A075P6056F | * | * | 1 | | | | C.W. |
| PA 6 | Motor Retaining Bracket, RH | A079P4054K | * | * | 1 | | | | |
| PA 7 | Motor Retaining Bracket, LH | A079P4055K | * | * | 1 | | | | |
| PA 8 | Jacknut | A076W3043F | * | * | 6 | | | | |
| Not Illus. | Screw | A079W1025F | * | * | 6 | | | | |
| Not Illus. | Washer | A075W4011ZA | * | * | 6 | | | | |
| PA 9 | Control Lever Assy. | A050P0049J | * | * | 1 | | | | |
| PA 10 | Knob, Control Lever | X050B6078ZD | * | * | 2 | | | | |
| Not Illus. | Screw, Knob | X050B6043ZD | * | * | 2 | | | | |
| PA 11 | Cable, Control, Hot/Cold | A079P4023F | * | * | | 1 | | | |
| Not Illus. | Cable, Control, Hot/Cold | A079P4024F | * | * | | | 1 | 1 | |
| PA 12 | Cable, Control, Mode | A079P4021F | * | * | | 1 | | | |
| Not Illus. | Cable, Control, Mode | A079P4033F | * | * | | | 1 | 1 | |
