Esprit S1, S2, S2.2 PARTS MANUAL

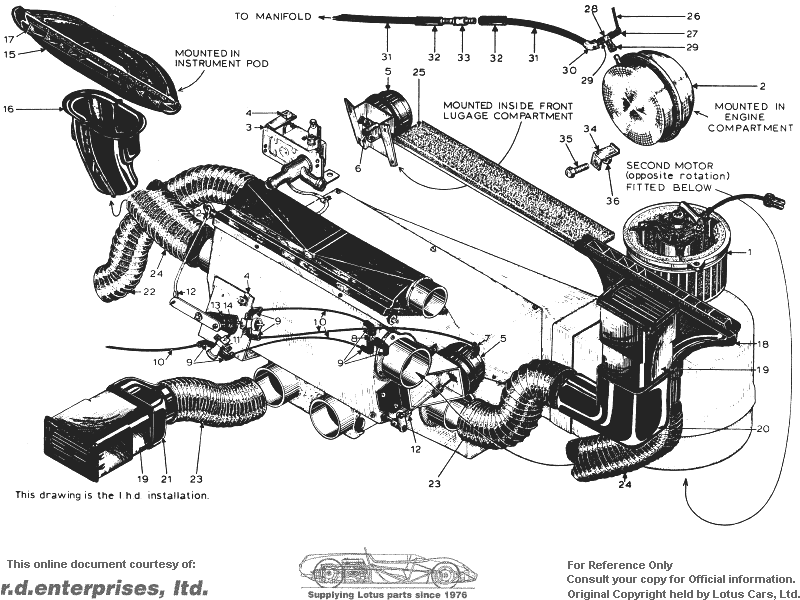

Section PAA -- Heater Assembly (Late S2)


PLATE
Ref. No.
DESCRIPTION
PART NO.
REMARKS
Heater AssyA079P4167K * 1
Heater AssyA079P4168K * 1
Heater MatrixA075P6055F *1
PAA 1Blower Motor and FanA075P6056F *1 C.W.
Blower Motor and FanA075P6058F *1 C.C.W.
Motor Securing ClampA079P4091F *6
PAA 2Vacuum ReservoirA079P6014F *1
PAA 3Water ValveA079P6060F *1
Clip, Water Valve CapilliaryA075W6051ZH *2
PAA 4Abutment ClipA075W6117F *2
PAA 5Vacuum MotorB075P6059F *2
PAA 6Clevis Pin, Vac. Motor/FlapsA075W6027F *2 Vac. Motor in Front Compt.
Connector, Vac. Pipe/MotorA075P6080F *2 Vac. Motor in Front Compt.
PAA 7Elbow, Vac. Pipe/MotorA075P6070F *1
PAA 8"T" PieceA075P6081F *1
PAA 9Elbow, Vac. PipeA075P6069F *7
PAA 10Vacuum PipeA075P6068V *AR
PAA 11Vacuum SwitchA075P6062F *2
PAA 12Bush and Clip Assy.A075U6033ZK *3 Rod Retaining
PAA 13Operating CamA075P0173F *1
PAA 14Cable TrunnionA075W6121F *1
PAA 15Binnacle VentA079P4064K *1
PAA 16Adaptor, Binnacle VentA079P4065K *1
PAA 17Demist Outlet VentA079P4039F *1
PAA 18Demlst DuctA079P4026K *1
PAA 19Face Level VentA075P6018ZL *4
PAA 20Adaptor, Face Level Vent, PassB076P0132F *1
PAA 21Adaptor, Centre VentA079P4126K *2
Not Illus.Adaptor, Face Level Vent, BinnacleA079P4066K *1
PAA 22Flexible Ducting 1½"A075P6066V *AR
PAA 23Flexible Ductlng , 7/8"A079P6007V *AR
PAA 24Flexible Ducting 2¼"A079P4027V *AR
PAA 25Fresh Air FlapA079P4099F *1
Not Illus.Bulkhead CoverA079P4129K * 1
Not Illus.Bulkhead CoverA079P4124K * 11In Front Compartment.
Not Illus.Vacuum Pipe 5/16" ODA026B0130ZC * ARAR
Not Illus.Cable, Water ValveA079P4146F * 1
Not Illus.Cable, Water ValveB079P4022F * 11
Not Illus.Cable, ControlA079P4145F * 1
Not Illus.Cable, ControlA079P4107F * 11
Not Illus.Control Lever Assy.A050P0049J *1
Not Illus.Knob, Control LeverX050B6078ZD *2
Not Illus.Screw, KnobX050B6043ZD *2
PAA 26Vacuum PipeA075P6068V *AR
PAA 27ElbowA075P6069F *1
PAA 28"T" PieceA075P6081F *1
PAA 29SleeveA075P6080F *2
PAA 30ElbowA036J0135ZG *1
PAA 31Vacuum PipeA026B0130ZC *AR
PAA 32SleeveA075U6080F *2
PAA 33Non-Return ValveA075U0561ZE *1
PAA 34Bracket, Vacuum ReservoirA079P4090F *3
PAA 35Bolt, 6mm x 16A075W1029ZG *3
PAA 36Nut, Nyloc, 6mmA075W3009ZE *3
