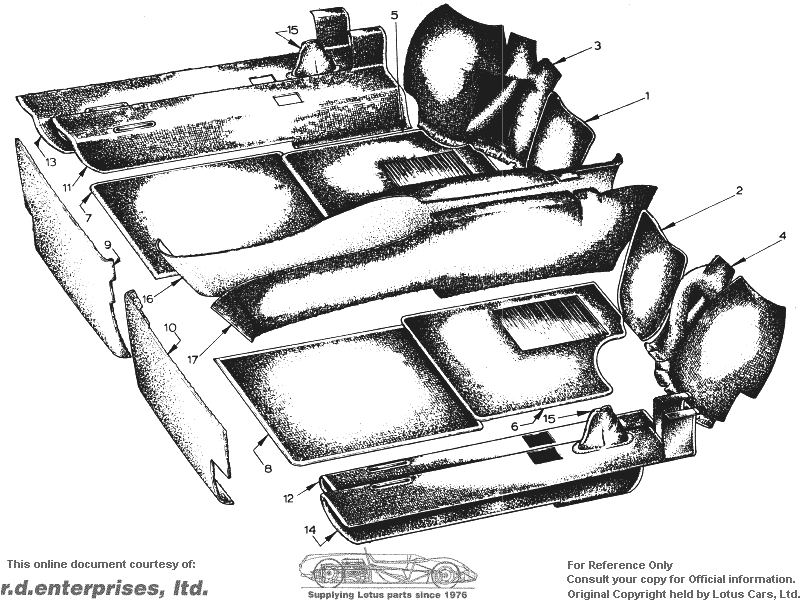

PLATE
Ref. No. | DESCRIPTION | PART NO. |  |  |  |  |  |  | REMARKS |
| ORANGE CARPET (GREEN/TARTAN TRIM) | | | | | | | | |
| VC 1 | Carpet, Foot Box, LH | A079V4105K | * | | 1 | | | | |
| VC 2 | Carpet, Foot Box, RH | A079V4106K | * | | 1 | | | | |
| VC 3 | Carpet, Wheel Arch, LH | A079V4107K | * | | 1 | | | | |
| VC 4 | Carpet, Wheel Arch. RH | A079V4108K | * | | 1 | | | | |
| VC 5 | Carpet, Foot Mat, LH | A079V4109K | * | | 1 | | | | |
| VC 6 | Carpet, Foot Mat, RH | A079V4110K | * | | 1 | | | | |
| VC 7 | Carpet, Underseat, LH | A079V4169K | * | | 1 | | | | |
| VC 8 | Carpet, Underseat, RH | A079V4168K | * | | 1 | | | | |
| VC 9 | Carpet, Rear Bulkhead, LH | A079V4171K | * | | 1 | | | | |
| VC 10 | Carpet, Rear Bulkhead, RH | A079V4170K | * | | 1 | | | | |
| VC 11 | Carpet, Sill, LH. (RHD) | A079V4101K | * | | | 1 | | | |
| VC 12 | Carpet, Sill, RH. (LHD) | A079V4184K | * | | | | 1 | 1 | |
| VC 13 | Carpet, Sill, LH. (LHD) | A079V4185K | * | | | | 1 | 1 | |
| VC 14 | Carpet, Sill, RH. (RHD) | A079V4102K | * | | | 1 | | | |
| VC 15 | Trim Cover, Handbrake Gaiter | A079V4104K | * | | 1 | | | | Part of VC13 and VC 14. |
| VC 16 | Carpet, Tunnel Side, LH | A079V4115K | * | | 1 | | | | |
| VC 17 | Carpet, Tunnel Side, RH | A079V4114K | * | | 1 | | | | |
| BROWN CARPET | | | | | | | | |
| VC 1 | Carpet, Foot Box, LH | A079V4397K | * | * | 1 | | | | |
| VC 2 | Carpet, Foot Box, RH | A079V4398K | * | * | 1 | | | | |
| VC 3 | Carpet, Wheel Arch, LH | A079V4399K | * | * | 1 | | | | |
| VC 4 | Carpet, Wheel Arch, RH | A079V4400K | * | * | 1 | | | | |
| VC 5 | Carpet, Foot Mat, LH | A079V4401K | * | * | 1 | | | | |
| VC 6 | Carpet, Foot Mat, RH | A079V4402K | * | * | 1 | | | | |
| VC 7 | Carpet, Underseat, LH | A079V4405K | * | * | 1 | | | | |
| VC 8 | Carpet, Underseat, RH | A079V4406K | * | * | 1 | | | | |
| VC 9 | Carpet, Rear Bulkhead, LH | A079V4407K | * | * | 1 | | | | |
| VC 10 | Carpet, Rear Bulkhead, RH | A079V4408K | * | * | 1 | | | | |
| VC 11 | Carpet, Sill, LH (RHD) | A079V4393K | * | * | | 1 | | | Heater Cars |
| Carpet, Sill, LH (RHD) | A079V4663K | | * | | 1 | | | Air Cond. Cars. |
| VC 12 | Carpet, Sill, RH (LHD) | A079V4396K | * | * | | | 1 | 1 | Heater Cars. |
| Carpet, Sill, RH (LHD) | A079V4662K | | * | | | 1 | 1 | Air Cond. Cars. |
| VC 13 | Carpet, Sill LH (LHD) | A079V4395K | * | * | | | 1 | 1 | |
| VC 14 | Carpet, Sill, RH (RHD) | A079V4394K | * | * | | 1 | | | |
| VC 15 | Trim Cover, Hendbrake Gaiter | A079V4409K | * | * | 1 | | | | Part of VC 13 and VC14. |
| VC 16 | Carpet, Tunnel Side, LH | A079V4403K | * | * | 1 | | | | |
| VC 17 | Carpet, Tunnel Side RH | A079V4404K | * | * | 1 | | | | |
| BLACK CARPET | | | | | | | | |
| VC 1 | Carpet, Foot Box, LH | A079V4319K | * | * | 1 | | | | |
| VC 2 | Carpet, Foot Box, RH | A079V4318K | * | * | 1 | | | | |
| VC 3 | Carpet, Wheel Arch, LH | A079V4321K | * | * | 1 | | | | |
| VC 4 | Carpet, Wheel Arch, RH | A079V4320K | * | * | 1 | | | | |
| VC 5 | Carpet, Foot Mat, LH | A079V4323K | * | * | 1 | | | | |
| VC 6 | Carpet, Foot Mar, RH | A079V4322K | * | * | 1 | | | | |
| VC 7 | Carpet, Under,eat, LH | A079V4327K | * | * | 1 | | | | |
| VC 8 | Carpet, Underseat, RH | A079V4326K | * | * | 1 | | | | |
| VC 9 | Carpet, Rear Bulkhead, LH | A079V4329K | * | * | 1 | | | | |
| VC 10 | Carpet, Rear Bdkhead, RH | A079V4328K | * | * | 1 | | | | |
| VC 11 | Carpet, Sill, LH (RHD) | A079V4314K | * | * | | 1 | | | Heater Cars. |
| Carpet Sill, LH (RHD) | A079V4697K | | * | | 1 | | | Air Cond. Cars. |
| VC12 | Carpet, Sill, RH (LHD) | A079V4316K | * | * | | | 1 | 1 | Heater Cars. |
| Carpet, Sill, RH (LHD) | A079V4696K | | * | | | 1 | 1 | Air Cond. Cars. |
| VC 13 | Carpet, Sill LH (LHD) | A079V4317K | * | * | | | 1 | 1 | |
| VC 14 | Carpet, Sill, RH (RHD) | A079V4315K | * | * | | 1 | | | |
| VC 15 | Trim Cover, Handbrake Gaiter | A079V4330K | * | * | 1 | | | | Part of VC13 and VC 14. |
| VC 16 | Carpet, Tunnel Side, LH | A079V432SK | * | * | 1 | | | | |
| VC 17 | Carpet, Tunnel Side, RH | A079V4324K | * | * | 1 | | | | |
| BEIGE CARPET | | | | | | | | |
| VC 1 | Carpet, Foot Box, LH | A079V4437K | * | * | 1 | | | | |
| VC 2 | Carpet, Foot Box, RH | A079V4438K | * | * | 1 | | | | |
| VC 3 | Carpet, Wheal Arch. LH | A079V4439K | * | * | 1 | | | | |
| VC 4 | Carpet, Wheel Arch, RH | A079V4440K | * | * | 1 | | | | |
| VC 5 | Carpet, Foot Mat, LH | A079V4441K | * | * | 1 | | | | |
| VC 6 | Carpet, Foot Mat, RH | A079V4442K | * | * | 1 | | | | |
| VC 7 | Carpet, Underseat, LH | A079V4445K | * | * | 1 | | | | |
| VC 8 | Carpet, Underseat, RH | A079V4446K | * | * | 1 | | | | |
| VC 9 | Carpet, Rear Bulkhead, LH | A079V4447K | * | * | 1 | | | | |
| VC 10 | Carpet, Rear Bulkhead RH | A079V4448K | * | * | 1 | | | | |
| VC 11 | Carpet, Sill LH (RHD) | A079V4433K | * | * | | 1 | | | Heater Cars |
| Carpet Sill, LH (RHD) | A079V4705K | | * | | 1 | | | Air Cond. Cars. |
| VC 12 | Carpet, Sill, RH (LHD) | A079V4436K | * | * | | | 1 | 1 | Heater Cars. |
| Carpet, Sill RH (LHD) | A079V4706K | | * | | | 1 | 1 | Air Cond. Cars. |
| VC 13 | Carpet, Sill, LH (LHD) | A079V4435K | * | * | | | 1 | 1 | |
| VC 14 | Carpet, Sill, RH (RHD) | A079V4434K | * | * | | 1 | | | |
| VC 15 | Trim Cover, Handbrake Gaiter | A079V4432K | * | * | 1 | | | | Part of VC 13 and VC 14. |
| VC 16 | Carpet, Tunnel Side, LH | A079V4443K | * | * | 1 | | | | |
| VC 17 | Carpet, Tunnel Side, RH | A079V4444K | * | * | 1 | | | | |
| RED CARPET | | | | | | | | |
| VC 1 | Carpet, Foot Box, LH | A079V4565K | | * | 1 | | | | |
| VC 2 | Carpet, Foot Box, RH | A079V4566K | | * | 1 | | | | |
| VC 3 | Carpet, Wheel Arch, LH | A079V4567K | | * | 1 | | | | |
| VC 4 | Carpet, Wheel Arch, RH | A079V4568K | | * | 1 | | | | |
| VC 5 | Carpet, Foot Mat, LH | A079V4569K | | * | 1 | | | | |
| VC 6 | Carpet, Foot Mat, RH | A079V4570K | | * | 1 | | | | |
| VC 7 | Carpet, Underseat, LH | A079V4573K | | * | 1 | | | | |
| VC 8 | Carpet, Underseat, RH | A079V4574K | | * | 1 | | | | |
| VC 9 | Carpet, Rear Bulkhead, LH | A079V4575K | | * | 1 | | | | |
| VC 10 | Carpet, Rear Bulkhead, RH | A079V4576K | | * | 1 | | | | |
| VC 11 | Carpet, Sill, LH (RHD) | A079V4561K | | * | | 1 | | | Heater Cars. |
| VC 17 | Carpet, Sill, LH (RHD) | A079V4679K | | * | | 1 | | | Air Cond. Cars. |
| VC 12 | Carpet, Sill, RH (LHD) | A079V4564K | | * | | | 1 | 1 | Heater Cars. |
| VC 17 | Carpet, Sill, RH (LHD) | A079V4680K | | * | | | 1 | 1 | Air Cond. Cars. |
| VC 13 | Carpet, Sill, LH (LHD) | A079V4563K | | * | | | 1 | 1 | |
| VC 14 | Carpet, Sill, RH (RHD) | A079V4562K | | * | | 1 | | | |
| VC 15 | Trim Cover, Handbrake Gaiter | A079V4577K | | * | | 1 | | | Part of VC 13 and VC 14. |
| VC 16 | Carpet, Tunnel Side, LH | A079V4571K | | * | 1 | | | | |
| VC 17 | Carpet, Tunnel Side, RH | A079V4572K | | * | 1 | | | | |
