Esprit S1, S2, S2.2 Parts Manual -- Section FG

Esprit S1, S2, S2.2 PARTS MANUAL

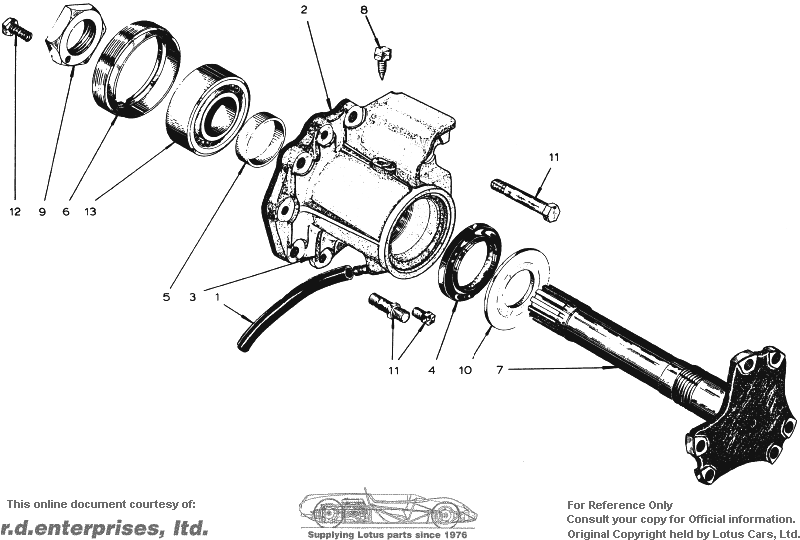

Section FG -- Transmission (Gearbox) -- Drive Shaft


PLATE Ref. No.	DESCRIPTION	PART NO.							REMARKS
FG 1	Drain pipe	A079F4019F	*	*	2
FG 2	Gasket	A709F6028F	*	*	2
FG 3	Drive shaft housing RH	A079F6275F	*	*	1
	Drive shaft housing LH	A079F6276F	*	*	1
FG 4	Seal	A079F6288F	*	*	2
FG 5	Thrust Ring	A079F6283F	*	*	2
FG 6	Ring Nut	A079F6278F	*	*	2
FG 7	Shaft, RH	A079F6281F	*	*	1
	Shaft, LH	A079F6280F	*	*	1
FG 8	Locking screw	A079F6279F	*	*	2
FG 9	Nut	A079F6284F	*	*	2
FG 10	Oil retaining washer	A079F6282F	*	*	2
FG 11	Bolt, 7 x 20	A079F6218F	*	*	1
	Bolt, 7 x 25	A079F6191F	*	*	5
	Bolt, 7 x 70	A079F6287F	*	*	2
	Bolt, 9 x 30	A079F6204F	*	*	10
	Bolt, 9 x 75	A079F6286F	*	*	2
FG 12	Locking screw	A079F6285F	*	*	2
FG 13	Roller bearing, double	A079F6277F	*	*	2
