LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

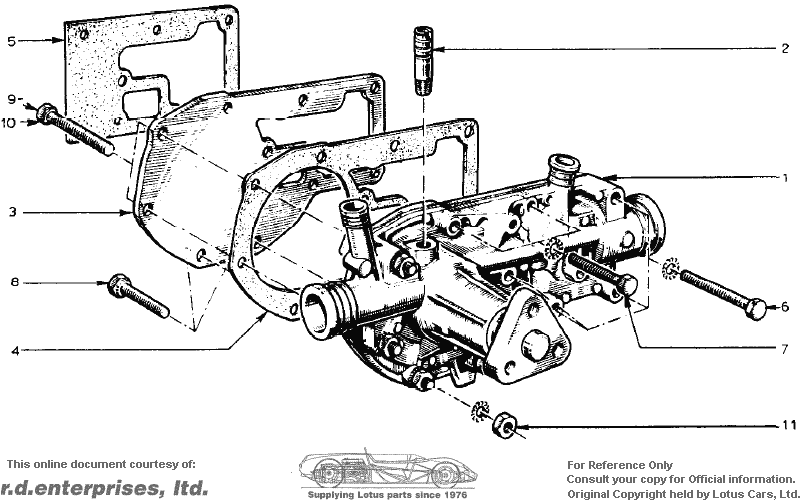

Section EP -- Engine -- Water Pump


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046E62971 1                 Water Pump Assembly replaced by A054E6058 after exhausting old stocks
 A046E62971 1 1               Water Pump Assembly replaced by A054E6058 after exhausting old stocks
 A054E60581 1 1 1             Water Pump Assembly
2 046E62961 1 1 1             Connector - Hose to Throttle Block (697-04) to Eng. No. 1790 - (821-30) to Eng. No. 0411
 A054E60691 1 1 1             Connector - Hose to Throttle Block (697-04) From Eng. No. 1790 - (821-30) from Eng. No. 0412
3 046E62941 1 1 1             Intermediate Plate
4 046E62951 1 1 1             Water Pump to Intermediate Plate Gasket
5 046E62921 1 1 1             Water Pump Intermediate Plate to Cylinder Block Gasket
6 A046W60434 4 4 4             Bolt - 7 x 60
 A046W60474 4 4 4             Washer
7 A046W60443 3 3 3             Bolt - 7 x 40
 A046W60473 3 3 3             Washer
8 A046W60412 2 2 2             Bolt 7 x 35 (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222
 A046W60422 2 2 2             Bolt 7 x 20 (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223
 A046W60472 2 2 2             Washer (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223
9 046E62932 2 2 2             Bolt - 7 x 55 (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222
10 A046W60422 2 2 2             Bolt - 7 x 20 (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223
 A046W60472 2 2 2             Washer (697-04) from Eng. No. 1642 - (821-30) from Eng. No. 0223
11 A046W60464 4 4 4             Nut (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222
 A046W60454 4 4 4             Washer (697-04) to Eng. No. 1641 - (821-30) to Eng. No. 0222
