LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

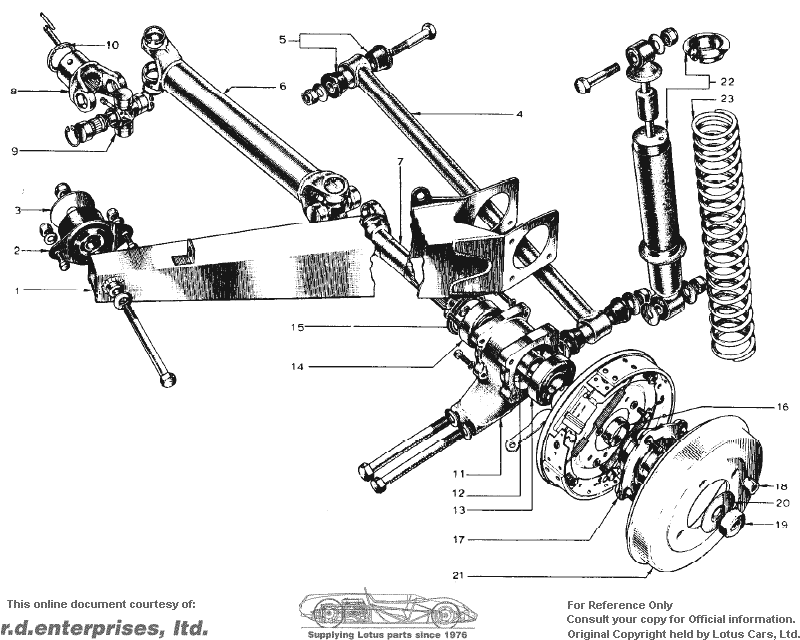

Section DA -- Suspension -- Rear


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046D01311 1 1 1             Radius Arm LH
 046D01321 1 1 1             Radius Arm RH
2 046D60002 2 2 2             Resilient Mounting (Metalastic)
3 A07W32122 2 2 2             Washer - Resilient Mounting to Radius Arm
 XUFB07722 2 2 2             Bolt - Resilient Mounting to Radius Arm
 YUFN070F2 2 2 2             Nut - Nyloc or Stover - Resilient Mounting to Radius Arm 7/16" x 20 TPI, 11/16" head
 A07W14052 2 2 2             Washer - Resilient Mounting to Radius Arm
 XUFS05164 4 4 4             Bolt - Resilient Mounting to Chassis
 YUFN050F4 4 4 4             Nut - Resilient Mounting to Chassis
 A05W16064 4 4 4             Washer - Resilient Mounting to Chassis 3/32" thick, 7/8" OD, 13/32" ID
 026B0079                    Washer - Toe-in Adjustment (As Required)
4 046D00142 2 2 2             Lower Link
5 046D60018 8 8 8             Bush - Lower Link 29/32" long

 XUFB08403 3 3 3             Bolt - Lower Link to Mounting Bracket 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI
 XUFN080F2 2 2 2             Nut - Lower Link to Mounting Bracket
 A08W20062 2 2 2             Washer - Lower Link to Mounting Bracket 1/16" thick, 1 1/2" OD, 1/2" ID
 XUFB08722 2 2 2             Bolt - Lower Link to Rear Hub Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4"
 YUFN080F2 2 2 2             Nut - Nyloc or Stover - Lower Link to Rear Hub 1/2" x 20 TPI, 3/4" head
 A08W16064 4 4 4             Washer - Lower Link to Rear Hub
 A08W16062 2 2 2             Washer - Lower Link to Rear Hub
6 046D00152 2 2 2             Intermediate Drive Shaft
7 046D00052 2 2 2             Outboard Drive Shaft (Rear Stub Axle)
8 046R60054 4 4 4             Yoke - Inboard Drive Shaft
9 046D60054 4 4 4             Universal joint
 046R0022                    Spacer Ring (0.405 ins. Undersize) (As Required)
 046R0023                    Spacer Ring (0.410 ins. Undersize) (As Required)
 046R0024                    Spacer Ring (1st Oversize) (As Required)
 046R0025                    Spacer Ring (2nd Oversize 0.420 ins) (As Required)
10 046R0026                    Spacer Ring (3rd Oversize) (As Required)
 046R60002 2 2 2             Tension Pin - Outer - Drive Shaft to Final Drive
 046R60012 2 2 2             Tension Pin - Inner - Drive Shaft to Final Drive
 A054D0187                    Shim 0.005 ins. (All - As Required)
 A054D0188                    Shim 0.015 ins. (All - As Required)
 046D0004                    Replaced by A046D0004 with 1 of A046D0005 Up to Chassis No. 0050
 A046D00041 1 1 1             Rear Wheel Bearing Housing LH From Chassis No. 0051
 046D0005                    Replaced by A046D0005 with 1 of A046D0005 Up to Chassis No. 0050
11 A046D00051 1 1 1             Rear Wheel Bearing Housing RH From Chassis No. 0051
 XUFS05128 8 8 8             Bolt - Wheel Bearing Housing to Radius Arm 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
 L05W00008 8 8 8             Washer - Wheel Bearing Housing to Radius Arm 7/64" thick split washer, 19/32" OD, 5/16" ID
12 046D01482 2 2 2             Spacer - Wheel Bearing to Wheel Bearing
 036D6001                    Replaced by 036D6017
13 036D60172 2 2 2             Wheel Bearing - Rear Outer From Chassis No. 1643

14 046D60032 2 2 2             Wheel Bearing - Rear Inner
15 054D01712 2 2 2             Seal Ring SB - Service III 1969/20
16 A054D01862 2 2 2             Spacer - Hub to Wheel Bearing
17 046D00012 2 2 2             Rear Hub
 036D60028 8 8 8             Wheel Stud Thread: 3/8-24, Knurl Dia.: .519", Length: 1.237", Shoulder Length: .455"

18 036D60008 8 8 8             Wheel Nut Thread: 3/8-24
19 046D60072 2 2 2             Hub Retaining Nut
20 046D60062 2 2 2             Lock Washer
21 046J60232 2 2 2             Brake Drum - Rear or 046J6024
 046J60242 2 2 2             Brake Drum - Rear or 046J6023
 046D0007                    Replaced by A046D0007 in pairs Up to Chassis No. 0254
SB - 1968/69
22 A046D00072 2 2               Rear Damper From Chassis No. 0255 to ?
 046D0007      2             Rear Damper From Chassis No. 1066 to 2583
 A065D0007      2             Rear Damper From Chassis No. 2584
 046D60084 4 4 4             Bush - Damper
23 026C0010                    Replaced by 026C0010A in pairs Up to Chassis No. 0254

 026C0010A2 2 2               Road Spring - Rear From Chassis No. 0255 to ?

 026C0010A      2             Road Spring - Rear From Chassis No. 1066 to 2583

 065D0010      2             Road Spring - Rear From Chassis No. 2584

 XUFB08402 2 2 2             Bolt - Damper to Cross Beam Up to Chassis No. 0388 - 3/4" head, 2 1/2" long, 1 1/4" long threads. 1/2" x 20 TPI
 XUFB08442 2 2 2             Bolt - Damper to Cross Beam From Chassis No. 0389
 YUFN080F2 2 2 2             Nut - Nyloc or Stover - Damper to Cross Beam 1/2" x 20 TPI, 3/4" head
 A08W16064 4 4 4             Washer - Damper to Cross Beam
 XUFB08722 2 2 2             Bolt - Damper to Wheel Bearing Housing Length 4 1/2", thread length 1 1/4", 1/2" x 20 TPI, head 3/4"
 YUFN080F2 2 2 2             Nut - Nyloc or Stover - Damper to Wheel Bearing Housing 1/2" x 20 TPI, 3/4" head
 A08W16062 2 2 2             Washer - Damper to Wheel Bearing Housing
 A08W20064 4 4 4             Washer - Damper to Wheel Bearing Housing 1/16" thick, 1 1/2" OD, 1/2" ID
