 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

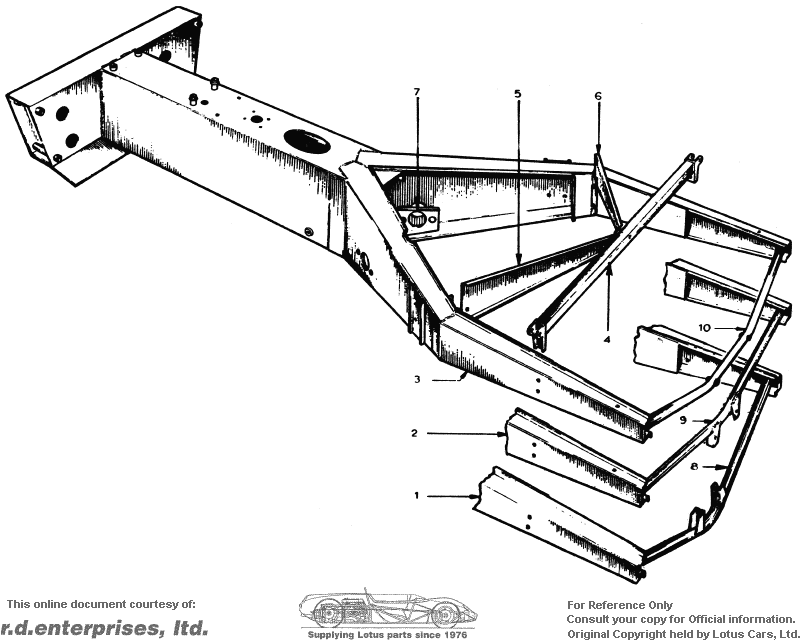

| AA 1 | C074A0715W | 1 | 1 | * | * | Assembly - Chassis - (Type 336 G/Box Mounting) | |||||||
| AA 2 | C074A0722W | 1 | 1 | * | * | Assembly - Chassis - (Type 352 G/Box Mounting) | |||||||
| AA 3 | C074A0724W | 1 | 1 | * | * | Assembly - Chassis - (Type 352/365 G/Box Mounting) | |||||||
| A074A0012Z | 2 | 2 | 2 | 2 | Tube - Lower Wishbone Pivot | ||||||||
| AA 4 | A074A0714W | 1 | 1 | 1 | 1 | Beam - Cross | |||||||
| XUFB0516 | 4 | 4 | 4 | 4 | Bolt - Cross Beam to Chassis | ||||||||
| 118B | 4 | 4 | 4 | 4 | Washer - Cross Beam to Chassis | ||||||||
| 211 | 4 | 4 | 4 | 4 | Nut - Cross Beam to Chassis | ||||||||
| AA 5 | D074A0295Z | 1 | 1 | 1 | 1 | Brace - L/H Diagonal | |||||||
| AA 6 | D074A0296Z | 1 | 1 | 1 | 1 | Brace - R/H Diagonal | |||||||
| XUFB0512 | 4 | 4 | 4 | 4 | Bolt - Brace to Chassis | ||||||||
| Z05W2002 | 4 | 4 | 4 | 4 | Washer - Brace to Chassis | ||||||||
| 211 | 4 | 4 | 4 | 4 | Nut - Brace to Chassis | ||||||||
| 17A | 1 | 1 | 1 | 1 | Bolt - Brace to Cross Beam | ||||||||
| A05W2002 | 1 | 1 | 1 | 1 | Washer - Brace to Cross Beam | ||||||||
| 211 | 1 | 1 | 1 | 1 | Nut - Brace to Cross Beam | ||||||||
| AA 7 | A074A02B5Z | 1 | 1 | 1 | 1 | Plate - Reinforcing L/H | |||||||
| A07402B6Z | 1 | 1 | 1 | 1 | Plate - Reinforcing R/H | ||||||||
| AA 8 | A074A0171W | 1 | 1 | * | * | Assembly - Type 335 G/Box Mounting | |||||||
| AA 9 | A074A0313Z | 1 | 1 | * | * | Assembly - Type 352 G/Box Mounting, Comprising | |||||||
| A074A0313Z | 1 | 1 | * | * | Tube | ||||||||
| B074A0315Z | 1 | 1 | * | * | Bracket - Mounting L/H | ||||||||
| B074A0316Z | 1 | 1 | * | * | Bracket - Mounting R/H | ||||||||
| AA 10 | B074A0323Z | 1 | 1 | * | * | Assembly - Type 352/365 G/Box Mounting |
