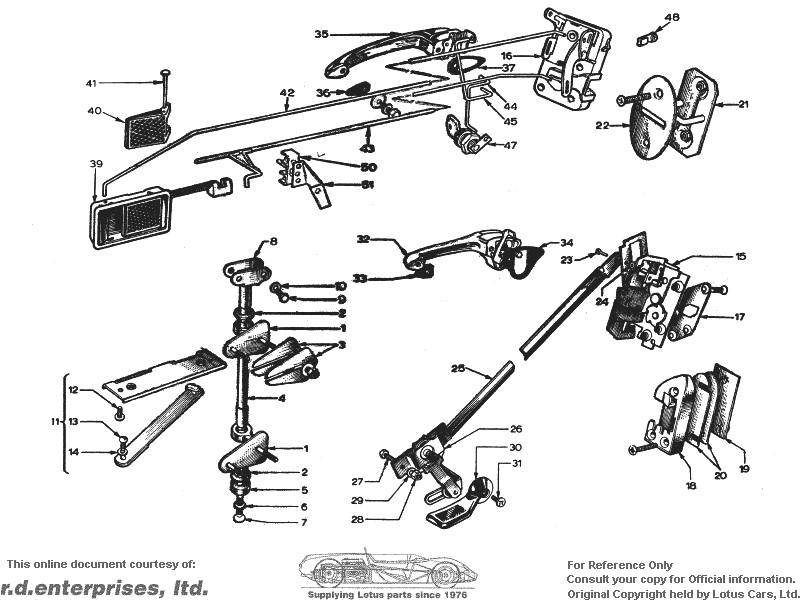

LOTUS ELAN+2 PARTS MANUAL

Section BK -- Body - Door Latch


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 050B06974               Casting - Door Hinge
2 036C60024               Bush - Hinge
3 050B1002AR               Shim - .030 ins., Hinge Adjustment, Optional
 050B1002AAR               Shim - .028 ins., Hinge Adjustment, Optional
 026B00798               Washer, Hinge to Body
 LUFN050F8               Nut, Hinge to Body
4 050B08602               Hinge Rod Assembly
5 050B10002               Spacer, Hinge Rod to Door, Bottom
6 050B60062               Washer, Hinge Rod to Door, Bottom
7 A050B2026
(W064)		2               Screw, Hinge Rod to Door, Bottom
8 050B09032               Nut Plate, Hinge Rod to Door  Top
9 L04W00004               Washer, Hinge Rod to Door  Top
10 XUFS04124               Screw, Hinge Rod to Door  Top
 050B60071               Door Check Assembly LH
11 050B60081               Door Check Assembly RH
12 MUCS04121               Bolt - Check to Door
13 XUCB04082               Bolt - Check to Body
14 A050B19422               Bush - Check to Body
 L04W00002               Washer - Check to Body
 050B60191               Door Lock LH Upto Chassis No. 0928
15 050B60201               Door Lock RH Upto Chassis No. 0928
 036B60481               Door Lock LH From Chassis No. 0929
16 036B60491               Door Lock RH From Chassis No. 0929
 KUFS04168               Screw, Lock to Door From Chassis No. 0929
 A04W09068               Washer, Lock to Door From Chassis No. 0929
 YUFN040F8               Nut, Lock to Door From Chassis No. 0929
 050B10051               Cover Plate, LH Upto Chassis No. 0928
17 050B10061               Cover Plate, RH Upto Chassis No. 0928
 KUFS04166               Screw - Cover Plate to Lock Upto Chassis No. 0928
 050B60211               Striker Plate LH Upto Chassis No. 0928
18 050B60221               Striker Plate RH Upto Chassis No. 0928
19 050B12782               Tapping Plate Upto Chassis No. 0928
20 050B1214AR               Shim Upto Chassis No. 0928
 KUFS04246               Screw - Striker Plate to Body Upto Chassis No. 0928
21 036B60542               Striker Plate From Chassis No. 0929
 KUFS04244               Screw - Striker Plate to Body From Chassis No. 0929
22 036B60552               Cover Plate - Striker From Chassis No. 0929
23 050B60232               Clevis Pin, Remote Control Link to Lock Upto Chassis No. 0928
 036J60311               Split Pin, Remote Control Link to Lock Upto Chassis No. 0928
24 050B60242               Washer, Remote Control Link to Lock Upto Chassis No. 0928
 050B06831               Link, LH, Remote Control to Lock Upto Chassis No. 0928
25 050B06841               Link, RH, Remote Control to Lock Upto Chassis No. 0928
26 050B60252               Remote Control Mechanism Upto Chassis No. 0928
27 XUFS10104               Screw, Remote Control Mechanism to Door Upto Chassis No. 0928
28 LUFN100F4               Nut, Remote Control Mechanism to Door Upto Chassis No. 0928
29 A03W06054               Washer, Remote Control Mechanism to Door Upto Chassis No. 0928
30 050B60282               Handle - Interior Upto Chassis No. 0928
31 PUFS10082               Screw - INterior Handle Mounting Upto Chassis No. 0928
 050B08151               Exterior Door Handle LH Upto Chassis No. 0928
32 050B08161               Exterior Door Handle RH Upto Chassis No. 0928
33 036B61322               Gasket - Exterior Door Handle, Front Upto Chassis No. 0928
34 036B61332               Gasket - Exterior Door Handle, Rear Upto Chassis No. 0928
 XUFS10084               Screw, Exterior Handle to Door Upto Chassis No. 0928
 L03W00004               Washer, Exterior Handle to Door Upto Chassis No. 0928
 A03W06054               Washer, Exterior Handle to Door Upto Chassis No. 0928
 050B05071               Trigger - Exterior Door Handle LH Upto Chassis No. 0928
 050B05081               Trigger - Exterior Door Handle RH Upto Chassis No. 0928
 036J60312               Split Pin - Trigger to Handle Upto Chassis No. 0928
 036B60521               Exterior Door Handle LH From Chassis No. 0929
35 036B60531               Exterior Door Handle RH From Chassis No. 0929
36 036B61642               Gasket - Exterior Door Handle From Chassis No. 0929
 036B6149-               Gasket (replaced by 036B6168) From Chassis No. 0929
37 036B61682               Gasket - Exterior Door Handle From Chassis No. 0929
 XUFS03104               Screw, Exterior Door Handle to Door From Chassis No. 0929
 A03W08064               Washer, Exterior Door Handle to Door ,From Chassis No. 0929
 036B6050-               Remote Control Assembly (replaced by 036B6151) From Chassis No. 0929
 036B61511               Remote Control Assembly LH From Chassis No. 0929
 036B6051-               Remote Control Assembly (replaced by 036B6152) From Chassis No. 0929
39 036B61521               Remote Control Assembly RH From Chassis No. 0929
40 036B62562               Handle - Remote Control From Chassis No. 0929
41 036B62572               Pivot Pin - Remote Control From Chassis No. 0929
 PSTS10066               Screw, Remote Control to Door From Chassis No. 0929
 050B60096               Nut, Remote Control to Door From Chassis No. 0929
 050B14111               Wire - Remote Control Locking LH From Chassis No. 0929
42 050B14121               Wire - Remote Control Locking RH From Chassis No. 0929
 050B14231               Wire - Remote Control Operating LH From Chassis No. 0929
43 050B14241               Wire - Remote Control Operating RH From Chassis No. 0929
 050B14131               Wire - Door Handle to Lock LH From Chassis No. 0929
44 050B14141               Wire - Door Handle to Lock RH From Chassis No. 0929
 036B16471               Wire - Private Lock to Lock LH From Chassis No. 0929
45 036B16481               Wire - Private Lock to Lock RH From Chassis No. 0929
47 A036B61912               Private Lock From Chassis No. 0929
 036B60962               Gasket - Private Lock From Chassis No. 0929
 2262               Locknut, Private Lock Mounting From Chassis No. 0929
 A036B1925
(W015)		2               Friction Washer, Private Lock Mounting From Chassis No. 0929
 036B14102               Washer, Private Lock Mounting From Chassis No. 0929
48 036B614612               Fastener Assembly
 A036B625112               Fastener, Wire Fixing From Chassis No. 0929
 036B605612               Bush, Wire Fixing From Chassis No. 0929
 050B6122-               Rod Clip - Guide (replaced by A050B6148)
50 050B61486               Rod Clip - Guide From Chassis No. 0929
 050B6123-               Plastic Tube (replaced by A050B6164)
 A050B6164AR               Plastic Tube - Wire Sound Insulator From Chassis No. 0929
51 050B15201               Steady Bracket RH, Rod Clip Mounting From Chassis No. 0929
 050B15211               Steady Bracket LH, Rod Clip Mounting From Chassis No. 0929
 PSTS10082               Screw, Steady Bracket to Door From Chassis No. 0929
 4242               Nut, Steady Bracket to Door From Chassis No. 0929
