 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

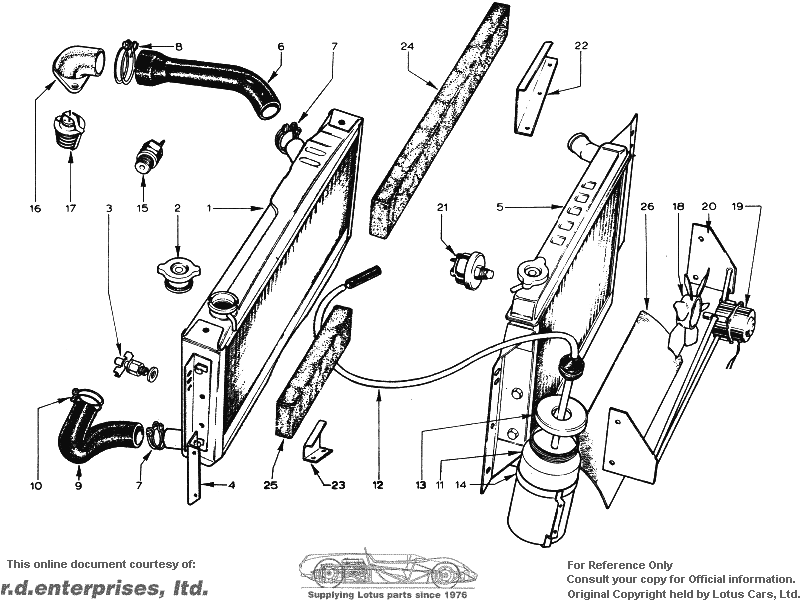

| 1 | A026K0001 | 1 | Radiator | ||||||||
| 036K6001 | 1 | Radiator Cap (10 lbs. sq. in.) | |||||||||
| 2 | A046K6000 | 1 | Radiator Cap (7 lbs. sq. in.) | ||||||||
| 036K 6002 | 1 | Gasket - Cap | |||||||||
| 3 | A036K6021 | 1 | Drain Tap - Radiator | ||||||||
| 4 | 050K0063 | 1 | Mounting Bracket, LH | ||||||||
| 050K0064 | 1 | Mounting Bracket, RHN | |||||||||
| 036B6150 | 1 | Grommet - Overflow Tube through Bracket | |||||||||
| XUFS0408 | 4 | Screw, Bracket to Radiator | |||||||||
| A04W0904 | 4 | Washer, Bracket to Radiator | |||||||||
| YUFN040F | 4 | Nut, Bracket to Radiator | |||||||||
| XUFS0412 | 4 | Screw, Bracket to Body | |||||||||
| A04W1606 | 4 | Washer, Bracket to Body | |||||||||
| YUFN040F | 4 | Nut, Bracket to Body | |||||||||
| 5 | A050K0001 | 1 | Radiator | ||||||||
| 6 | A026K0003 | 1 | Hose - Top | ||||||||
| 7 | 036K6004 | 2 | Clip - Hose | ||||||||
| 8 | 036K6005 | 1 | Clip - Hose | ||||||||
| 9 | A026K0004 | 1 | Hose - Lower | ||||||||
| 10 | 036K6006 | 1 | Clip - Hose | ||||||||
| A050K6012 | 1 | Recuperator Bottle Assembly | |||||||||
| 11 | 050K6001 | 1 | 1 | 1 | 1 | Recuperator Bottle | |||||
| 036K6007 | 1 | Recuperator Bottle | |||||||||
| A050K6013 | 1 | 1 | 1 | 1 | Tube and Grommet - Bottle | ||||||
| 12 | A036B6268 | 1 | Tube | ||||||||
| A036B6267 | 1 | Sleeve | |||||||||
| 036J6026 | 1 | Grommet | |||||||||
| 13 | 050K6002 | 1 | 1 | 1 | 1 | Cap - Bottle | |||||
| 036K6008 | 1 | Cap - Bottle | |||||||||
| 14 | 050K6015 | 1 | 1 | 1 | 1 | Mounting Bracket - Bottle | |||||
| 026K0051 | 1 | Mounting Bracket - Bottle | |||||||||
| XUFS1008 | 2 | Screw, Bracket to Body | |||||||||
| A03W0605 | 2 | Washer, Bracket to Body | |||||||||
| YUFN100F | 2 | Nut, Bracket to Body | |||||||||
| 036B6121 | 2 | Fastener, Bracket to Body | |||||||||
| 050M6083 | 1 | Sender Unit - Water Temperature | Upto ? | ||||||||
| 050K6000 | 1 | Sender Unit (replaced by A050M6136) | From ? | ||||||||
| 15 | A050M6136 | 1 | Sender Unit | ||||||||
| 16 | A026E6101 | 1 | Housing - Thermostat | ||||||||
| A026E6102 | 1 | Gasket - Housing | |||||||||
| 17 | 036E6002 | 1 | Thermostat - 88° | ||||||||
| 036E6003 | 1 | Thermostat - 71° | |||||||||
| A036E6023 | 1 | Thermostat - 78° | |||||||||
| 20366-S.2. | 2 | Bolt, Housing | |||||||||
| 34806-S.2. | 2 | Washer, Housing | |||||||||
| 18 | 036M6013 | 1 | 1 | 1 | 1 | Fan | From Chassis No. 0928 | ||||
| 19 | 036M6014 | 1 | 1 | 1 | 1 | Motor - Fan | From Chassis No. 0928 | ||||
| 20 | 050K0069 | 1 | 1 | 1 | 1 | Mounting Bracket | From Chassis No. 0928 | ||||
| A036K0079 | 1 | Fan | |||||||||
| A036K0080 | 1 | Motor - Fan | |||||||||
| B036K0078 | 1 | Mounting Bracket | |||||||||
| XUFB0424 | 3 | Bolt | |||||||||
| A04W0905 | 3 | Washer | |||||||||
| YUFN040F | 3 | Nut | |||||||||
| 21 | 036K6015 | 1 | Thermal Switch - Fan | ||||||||
| 22 | A050K0083 | 1 | Blanking Panel - Top, LH | ||||||||
| 23 | A050K0082 | 1 | Blanking Panel - Top, LH | ||||||||
| KSTS0608 | 5 | Screw | |||||||||
| 24 | A050K0084 | 1 | Foam - Top, LH | ||||||||
| 25 | A050K0085 | 1 | Foam - Top, RH | ||||||||
| 26 | A050K0081 | 1 | Blanking Panel - Lower |
