LOTUS ELAN+2 PARTS MANUAL

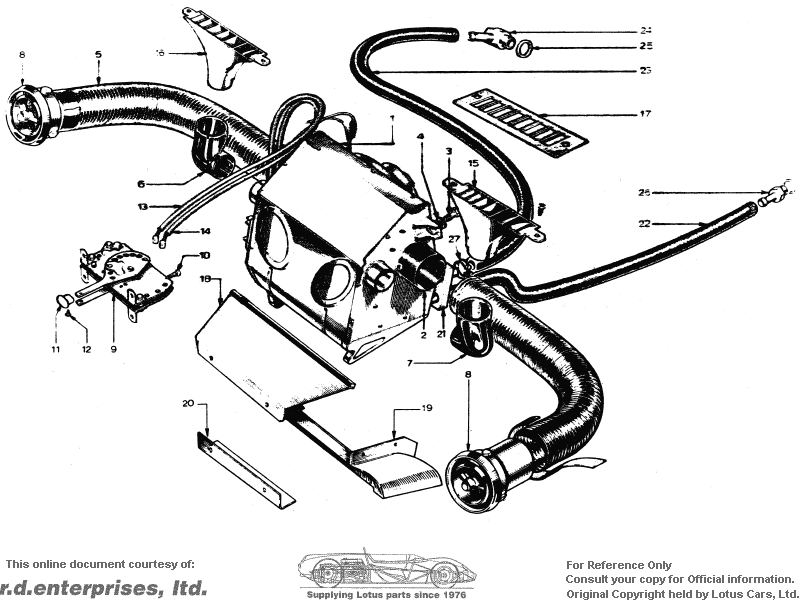

Section PA -- Heating & Ventilation


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
050P6000              Heater Unit
 050M6070              Heater Unit
050P0011              Adaptor Tube
XUCS0416              Screw, heater Mounting
A05W1601              Washer, Heater Mounting
050P0020              Hose Adaptor to F.L.V. upto ?
 036P6000AR               Adhesive tape
050P0067              Connector From ?
05PP0068              Connector From ?
 050P6001              Hose - Connector to F.L.V. (replaced by 050P0060)
 050P0060              Hose - Connector to F.L.V.
050B6042              Face Level Vent
050P0049              Control - Heater
10 KWDS0406              Screw - Control Mounting
11 050B6078              Knob - Heater Control
12 050B6043              Screw - Knob Fixing
13 050P0053              Cable - Heater Control
 050P0526              Cable - Heater Control (replaced by 050P0052)
14 050P0052              Cable - Heater Control
 050P6044              Trunnion, Cable Fixing
 050P6045              Screw, Cable Fixing
 050P6047              Nozzle - Demist Vent, Left Hand (replaced by 054P0063)
15 054P0063              Nozzle - Demist Vent, Left Hand
 050P6048              Nozzle - Demist Vent, Right Hand (replaced by 054P0064)
16 054P0064              Nozzle - Demist Vent, Right Hand
17 050P6049              Grille - Demist Vent
 KSTS0616              Screw - Demist Vent to Crash Pad
18 050B1184              Bracket - Facia Mounting
19 050B1517              Heater Deflector From 1170
 PSTS0406              Screw - Deflector to Heater
20 050B0239              Bracket - Facia Mounting
21 A050P0056              Seal - Heater Water Pipes
22 050P0006              Hose - Heater to Timing Case Cover
23 050P0005              Hose - Heater to Cylinder Head
24 036K6011              Heater Connection, Angled
25 036K6012              Washer - Connections
26 036K6010              Heater Connection, Straight
 A050P6003              Heater Connection, Straight
27 050P6002              Clip - Hoses
