LOTUS ELAN+2 PARTS MANUAL

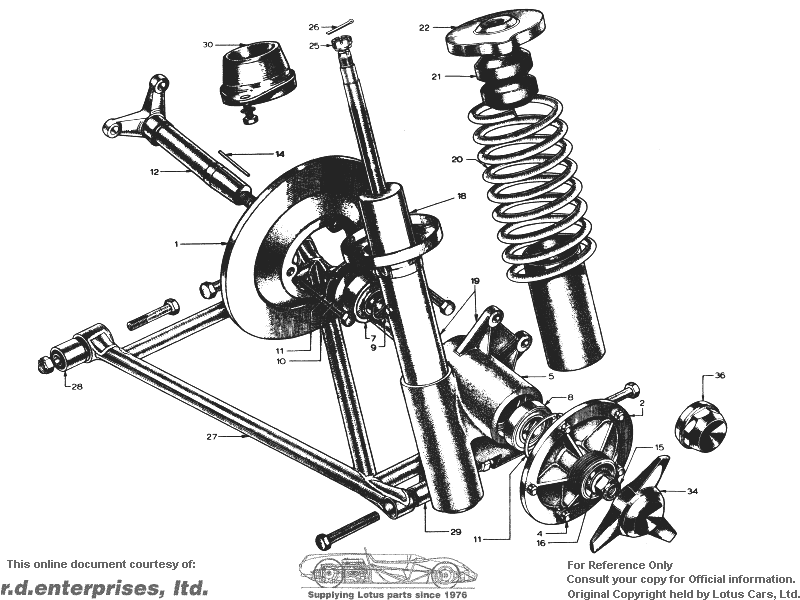

Section DA -- Rear Suspension


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 A026J00012               Brake Disc - Read
2 050D00631               Hub - Rear LH
 050D60041               Hub - Rear RH
4 050G001110               Drive Peg
 026D00041               Bearing Hosuing, RH (replaced by A026D0004)
together with:
1 off 036D6003 Bearing
1 off B026D0003 Outboard Drive Shaft
1 off 036D0151 Spacer 		Upto Chassis No. 0249
Bulletin:
Parts 1967/88, 1968/57
Service 1968/11
 A026D00041               Bearing Housing From Chassis No. 0250
 026D00051               Bearing Hosuing, LH (replaced by A026D0005)
together with:
1 off 036D6003 Bearing
1 off B026D0003 Outboard Drive Shaft
1 off 036D0151 Spacer 		Upto Chassis No. 0249
Bulletin:
Parts 1967/88, 1968/57
Service 1968/11
5 A026D00051               Bearing Housing, LH From Chassis No. 0250
 036D60014               Bearing Upto Chassis No. 0249
7 036D60032               Bearing- Inner From Chassis No. 0250
 036D60012               Bearing - Outer (replaced by 036D6017) From Chassis No. 0250
Bulletin:
Parts 1968/57
 036D60162               Bearing - Outer (replaced by 036D6017)
8 036D60172               Bearing - Outer
9 036D60072               Circlip
10 036D01512               Spacer From Chassis No. 0250
 036D01662               Spacer (use with earlier type bearing - later type hosuing).
11 036D60064               Circlip
12 A026D00032               Drive Shaft - Outboard Upto Chassis No. 0249
 B026D00032               Drive Shaft - Outboard From Chassis No. 0250
14 026D00022               Key - Drive Shaft
 YUFN100F-               Key (replaced by A036D6019), Hub to Drive Shaft
15 A036D60192               Nut, Hub to Drive Shaft
 A10W1409-               Washer (replaced by 026D0048), Hub to Drive Shaft
16 026D00482               Washer, Hub to Drive Shaft
 J0556               Bolt - Brake Disc Coupling to Drive Shaft
18 050D00072               Damper Unit
19 050D60031               Damper/Bearing Housing LH
 050D60041               Damper/Bearing Housing RH
20 050D00062               Road Spring
21 036D60132               Bunp Stop
 050D01542               Spacer - Bump Limiting From Chassis No. 1531
22 036D60082               Spring Abutment - Top
25 026D00112               Nut - Damper to Resilient Mounting
26 036D60092               Split Pin - Damper to Resilient Mounting
27 050D00142               Wishbone
28 036D60104               Bush - Wishbone - Inner
29 036D60114               Bush - Wishbone - Outer
30 026D07032               Resilient Mounting Assembly Upto Chassis No. 1459
 A026D07032               Resilient Mounting Assembly From Chassis No. 1531
 026D00324               Screw - Resilient Mounting to Chassis
 A036D01902               Bolt, Wishbone to Bearing Housing Front
 YUFN070F2               Nut, Wishbone to Bearing Housing Front
 YUFN070F2               Nut, Wishbone to Bearing Housing Rear
 A036D01912               Bolt, Wishbone to Bearing Housing Rear
 XUFB07404               Bolt, Wishbone to Chassis
 YUFN070F4               Nut, Wishbone to Chassis
 A07W00002               Washer - Wishbone to Bearing Housing Front
 A07W00002               Washer - Wishbone to Bearing Housing Rear
34 036G00062               Nut - RH - Wheel Retaining UK only
 036G00072               Nut - LH - Wheel Retaining UK only
36 C036G00062               Nut - RH - Wheel Retaining Export only
 C036G00072               Nut - LH - Wheel Retaining Export only
