 |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

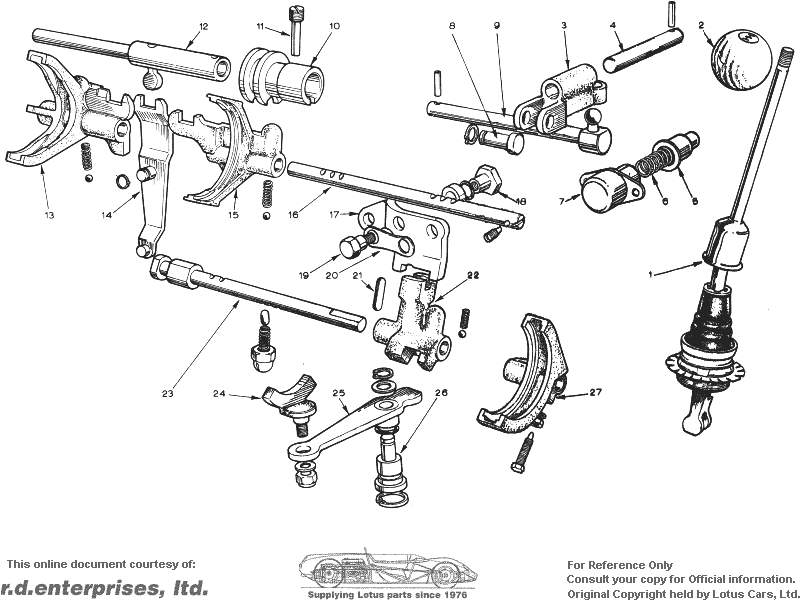

| 5 Speed Gearbox | |||||||||||
| 1 | A050F6094W | 1 | Assembly. Gearlever, | ||||||||
| A050F6095Z | 1 | Gaiter. Gearlever, | |||||||||
| 2 | A050F0292Z | 1 | Knob. Gearlever, | ||||||||
| A036F0133Z | 1 | Badge. Gearlever Knob, | |||||||||
| 3 | A050F0265Z | 1 | Link. Selector, | ||||||||
| 4 | A050F0261Z | 1 | Pin. Selector Link, | ||||||||
| A050F6080Z | 1 | Pin. Securing, | |||||||||
| 5 | A050F6091Z | 1 | Plunger. Crossgate, | ||||||||
| 6 | A050F6093Z | 1 | Spring. Crossgate Plunger, | ||||||||
| 7 | A050F6092Z | 1 | Housing. Spring, | ||||||||
| M016 | 2 | Bolt. Housing Securing, | |||||||||
| M203 | 2 | Washer. Spring, | |||||||||
| 8 | A050F0259Z | 1 | Pin. Link, | ||||||||
| A050F6084Z | 1 | Circlip. Link Pin, | |||||||||
| M189 | 1 | Washer. Plain, | |||||||||
| 9 | A050F0297W | 1 | Assembly. Selector Extension Shaft, | ||||||||
| A050F6080Z | 1 | Pin. Attaching, | |||||||||
| 10 | A050F0257Z | 1 | Spool. Interlock, | ||||||||
| 11 | A050F0258Z | 1 | Retainer. Interlock Spool, | ||||||||
| 12 | A050F0296W | 1 | Assembly. Selector Shaft, | ||||||||
| 13 | A050F0286B | 1 | Fork. 3rd ./4th. Selector, | ||||||||
| A050F6067Z | 1 | Ball. Detent, | |||||||||
| A050F6038Z | 1 | Spring. Detent Ball, | |||||||||
| 14 | A050F6052Z | 1 | Lever. Reverse Operating, | ||||||||
| A050F6074Z | 1 | Circlip. Lever Securing, | |||||||||
| 15 | A050F6058Z | 1 | Fork. lst./2nd. Selector, | ||||||||
| A050F6087Z | 1 | Ball. Detent, | |||||||||
| A050F6038Z | 1 | Spring. Detent Ball, | |||||||||
| 16 | A050F0289B | 1 | Shaft. Selector, | ||||||||
| M350 | 1 | Screw. Shaft, | |||||||||
| 17 | A050F6051Z | 1 | Plate. Reverse Interlock, | ||||||||
| 18 | A050F0262Z | 2 | Retainer. Interlock Plate, | ||||||||
| A050F6082Z | 2 | 'O' Ring. Retainer, | |||||||||
| A050F0268Z | 2 | Spacer. Retainer, | |||||||||
| 19 | A050F6088Z | 2 | Bolt. Interlock Plate Securing, | ||||||||
| 20 | A050F6089Z | 1 | Plate. Locking, | ||||||||
| 21 | A050F6021Z | 1 | Plunger. | ||||||||
| 22 | A050F6047Z | 1 | Interlock. Reverse Selector, | ||||||||
| A050F6062Z | 1 | Ball. Detent | |||||||||
| A050F60372 | 1 | Spring. Detent Ball, | |||||||||
| 23 | A050F6053Z | 1 | Shaft . Selector, | ||||||||
| A050F6098Z | 1 | Plunger.Detent, | |||||||||
| A050F6038Z | 1 | Spring. Detent Plunger, | |||||||||
| A050F6015Z | 1 | Washer. Detent, | |||||||||
| A050F6057Z | 1 | Plug. Detent, | |||||||||
| 24 | A050F6020Z | 1 | Fork. Reverse Selector, | ||||||||
| A050F6012Z | 1 | Washer. Spacer, | |||||||||
| 211 | 1 | Nut. Fork Securing, | |||||||||
| 25 | A050F6048Z | 1 | Lever. Reverse Selector, | ||||||||
| 26 | A050F6026Z | 1 | Pin. Pivot, | ||||||||
| A050F6063Z | 1 | Circllp, Pivot Pin Securing | |||||||||
| A050F6066Z | 1 | 'O' Ring | |||||||||
| A050F6013Z | 1 | Washer. Spacer, | |||||||||
| A050F6069Z | 1 | Circlip. Reverse Selector Lever Securing | |||||||||
| 27 | A050F6004Z | 1 | Fork. 5th Selector, | ||||||||
| A050F6065Z | 1 | Washer, | |||||||||
| A050F6064Z | 1 | Locknut. | |||||||||
| A050F6068Z | 1 | Bolt. |
