 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

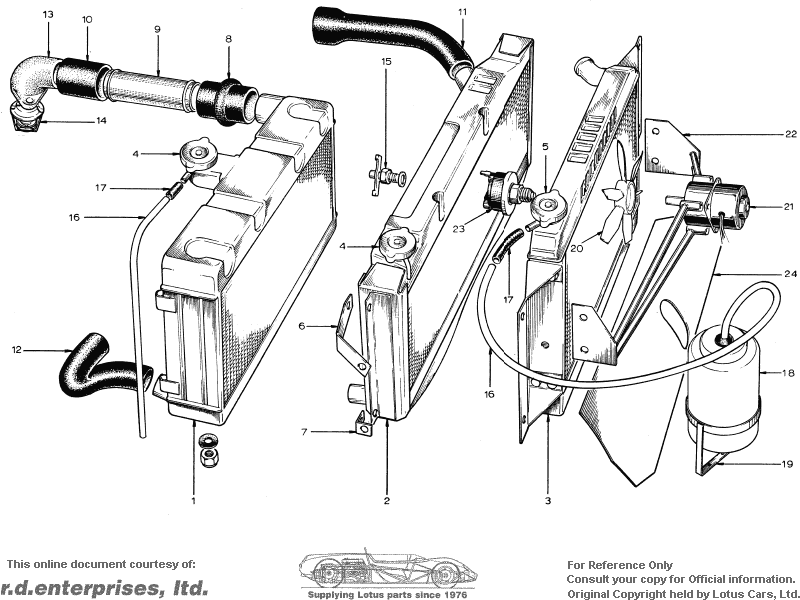

| 1 | 026K0001 | 1 | 1 | Radiator | Upto 5810 | ||||||||
| 2 | A026K0001 | 1 | 1 | Radiator | From 5811 to 7894 | ||||||||
| 3 | A050K0001 | 1 | 1 | Radiator | From 7895 | ||||||||
| 4 | 036K6001 | 1 | 1 | 1 | 1 | Cap - Radiator (7 lbs. in. sq.) | Upto 7894 | ||||||
| 5 | 046K6000 | 1 | 1 | Cap - Radiator (10 lbs. in. sq.) | From 7805 | ||||||||
| 036K6002 | 1 | Gasket - Cap | |||||||||||
| A036L6019 | 2 | 2 | Rubber Washer, Radiator Mounting | Upto 5810 | |||||||||
| LUFN040F | 2 | 2 | Nut, Radiator Mounting | Upto 5810 | |||||||||
| 026K0045 | 1 | 1 | Upper Mounting Bracket - LH | From 5811 to 7894 | |||||||||
| 6 | 026K0046 | 1 | 1 | Upper Mounting Bracket - RH | From 5811 to 7894 | ||||||||
| XUFS1010 | 2 | 2 | Screw, Brackets to Body | ||||||||||
| A03W0605 | 2 | 2 | Washer, Brackets to Body | ||||||||||
| 451B | 2 | 2 | Rawlnut, Brackets to Body | ||||||||||
| 026K0049 | 1 | 1 | Lower Mounting Bracket - LH | From 5811 to 7894 | |||||||||
| 7 | 026K0050 | 1 | 1 | Lower Mounting Bracket - RH | From 5811 to 7894 | ||||||||
| XUFS0512 | 2 | 2 | Screw, Lower Brackets to Body | ||||||||||
| A05W1007 | 2 | 2 | Washer, Lower Brackets to Body | ||||||||||
| LUFN050F | 2 | 2 | Nut, Lower Brackets to Body | ||||||||||
| A026K0045 | 1 | 1 | Upper Mounting Bracket - LH | From 7895 | |||||||||
| A026K0046 | 1 | 1 | Upper Mounting Bracket - RH | From 7895 | |||||||||
| XUFS0508 | 2 | 2 | Screw, Upper Bracket to Body | ||||||||||
| A05W1007 | 2 | 2 | Washer, Upper Bracket to Body | ||||||||||
| YUFN050F | 2 | 2 | Nut, Upper Bracket to Body | ||||||||||
| A026K0047 | 2 | 2 | Lower Mounting Bracket | From 7895 | |||||||||
| XUFS0512 | 2 | 2 | Screw, Lower Bracket to Body | ||||||||||
| A05W1007 | 2 | 2 | Washer, Lower Bracket to Body | ||||||||||
| YUFN050F | 2 | 2 | Nut, Lower Bracket to Body | ||||||||||
| XUFS0508 | 4 | 4 | Screw, Radiator to Brackets | ||||||||||
| A05W1007 | 4 | 4 | Washer, Radiator to Brackets | ||||||||||
| YUFN050F | 4 | 4 | Nut, Radiator to Brackets | ||||||||||
| 8 | 026K0003 | 1 | 1 | Hose, Upper | Upto 5810 | ||||||||
| 9 | 026K0002 | 1 | 1 | Tube, Upper | Upto 5810 | ||||||||
| 10 | 026K0009 | 1 | 1 | Hose, Upper | Upto 5810 | ||||||||
| 11 | 026K0003 | 1 | 1 | Hose - Upper | From 5811 to 7894 | ||||||||
| A026K0003 | 1 | 1 | 1 | 1 | Hose - Upper | From 7895 | |||||||
| 12 | 026K0004 | 1 | 1 | Hose, Lower | Upto 5810 | ||||||||
| A026K0004 | 1 | 1 | 1 | 1 | Hose, Lower | From 5811 | |||||||
| 026K0074 | 4 | 4 | 1 | 1 | 1 | 1 | Hoseclip - Top Rear | ||||||
| 026K0073 | 2 | 2 | 2 | 2 | Hoseclip - Front | ||||||||
| 026K0075 | 1 | 1 | 1 | 1 | Hoseclip - Bottom Rear | ||||||||
| 13 | 026E6101 | 1 | Housing - Thermostat | ||||||||||
| 026E6102 | 1 | Gasket - Thermostat Housing | |||||||||||
| 14 | 036E6002 | 1 | Thermostat - 88° C | ||||||||||
| 036E6003 | 1 | Thermostat - 71° C | |||||||||||
| 036E6002 | 1 | Thermostat - 78° C | |||||||||||
| XUCS0515 | 2 | Screw, Thermostat Housing to Head | |||||||||||
| A05W6021 | 2 | Washer, Thermostat Housing to Head | |||||||||||
| 15 | 036K6000 | 1 | Drain Tap, Interchangeable | ||||||||||
| A036K6021 | 1 | Drain Tap, Interchangeable | |||||||||||
| 16 | 036K6003 | 1 | Overflow Pipe - Nylon | ||||||||||
| 17 | J017 | 1 | Sleeve | ||||||||||
| 18 | 036K6007 | 1 | 1 | 1 | Recuperator Bottle | ||||||||
| 036K6008 | 1 | 1 | 1 | Cap, Recuperator Bottle | |||||||||
| 036J6026 | 1 | 1 | 1 | Grommet - Cap | |||||||||
| 19 | 026K0051 | 1 | 1 | 1 | Bracket - Recuperator Bottle | ||||||||
| 036B6121 | 2 | 2 | 2 | Tappit Fastener, Bracket to Body | |||||||||
| PSTS1008 | 2 | 2 | 2 | Screw, Bracket to Body | |||||||||
| 20 | 036K6013 | 1 | 1 | Fan | |||||||||
| A036K0079 | 1 | 1 | 1 | Fan | |||||||||
| 21 | 036K6014 | 1 | 1 | Motor | |||||||||
| A036K0080 | 1 | Motor | |||||||||||
| 22 | 050K0069 | 1 | 1 | Bracket | |||||||||
| B036K0078 | 1 | Bracket | |||||||||||
| XUFB0424 | 1 | Bolt, Motor to Bracket | |||||||||||
| A04W0905 | 1 | Washer, Motor to Bracket | |||||||||||
| YUFN040F | 1 | Nut, Motor to Bracket | |||||||||||
| 23 | 036K6015 | 1 | 1 | 1 | Thermal Switch | ||||||||
| 24 | A036K0076 | 1 | 1 | 1 | Blanking Plate - Radiator | ||||||||
| A036K0076 | 1 | 1 | 1 | Blanking Plate - Radiator, Lower | |||||||||
| A036K0076 | 1 | 1 | 1 | Screw, Blanking Plate to Body | |||||||||
| A036K0076 | 1 | 1 | 1 | Washer, Blanking Plate to Body | |||||||||
| A036K0076 | 1 | 1 | 1 | Nut, Blanking Plate to Body |
