Notes Bulletin Reference | |||||||||||||

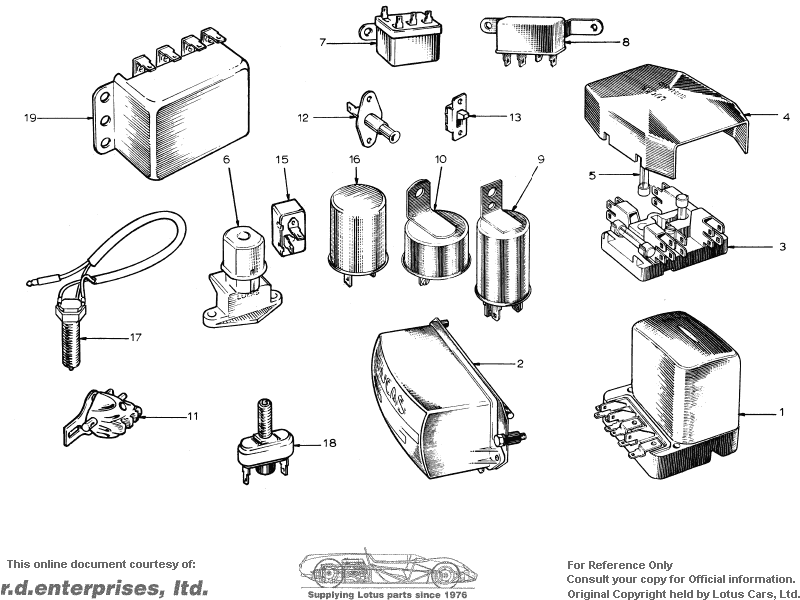

1 | 036M6017 | 1 | Control Box | Upto Chassis No. 9075 | |||||||||
2 | 050M6108 | 1 | 1 | Control Box | From Chassis No. 9076 | ||||||||
3 | 036M6018 | 1 | Fuse Box | ||||||||||
4 | 036M6247 | 1 | Cover - Fuse Box | ||||||||||
5 | 036M6019 | AR | Fuse, 35 amp. | ||||||||||
6 | A026M6022 | 1 | 1 | 1 | 1 | Switch - Dip, Foot Operated | |||||||
7 | 036M6026 | 1 | 1 | 1 | Relay - Headlamp Main Beam | ||||||||
036M6063 | 2 | Relay - Headlamp Main Beam & Dip | |||||||||||
8 | 036M6025 | 1 | 1 | 1 | 1 | Relay - Headlamp Flasher | |||||||
9 | 036M6024 | 1 | 1 | 1 | 1 | Flasher Unit - Indicators | |||||||
A036M6342 | 1 | Flasher Unit - Indicators | |||||||||||
10 | 036M6022 | 1 | 1 | 1 | 1 | Flasher Unit - Headlamps | |||||||
11 | A026M6023 | 2 | 2 | 2 | Switch, Headlamp Contact | ||||||||
12 | 036M6266 | 2 | 2 | Switch, Headlamp Contact | |||||||||
036M6266 | 2 | Switch, Headlamp Contact | Upto Chassis No. 8730 | ||||||||||
036M6266 | 1 | Switch, Buzzer | From Chassis No. ? | ||||||||||
036M6266 | 2 | Switch, Courtesy Light | |||||||||||
026M0059 | AR | Packing - Courtesy Light Swltch | |||||||||||
13 | 050B6040 | 1 | Switch - Burglar Alarm | ||||||||||
15 | 036M6300 | 1 | Flasher Unit | From Chassis No. ? | |||||||||
16 | 036M6270 | 1 | Flasher Unit - Hazard Warnlng | Upto Chassis No. ? | |||||||||
036M6334 | 1 | Flasher Unit - Hazard Warnlng | From Chassis No. ? | ||||||||||
17 | 050M6002 | 1 | 1 | Switch - Reverse Light | |||||||||
18 | 036M6030 | 1 | Switch - Handbrake Warning Light | ||||||||||
LUFN040F | 1 | Lock Nut - Handbrake Warning Light Switch | |||||||||||
19 | A036M6326 | 1 | Relay | From Chassis No. 7001030001J & 7001030001K |
