Notes Bulletin Reference | |||||||||||||

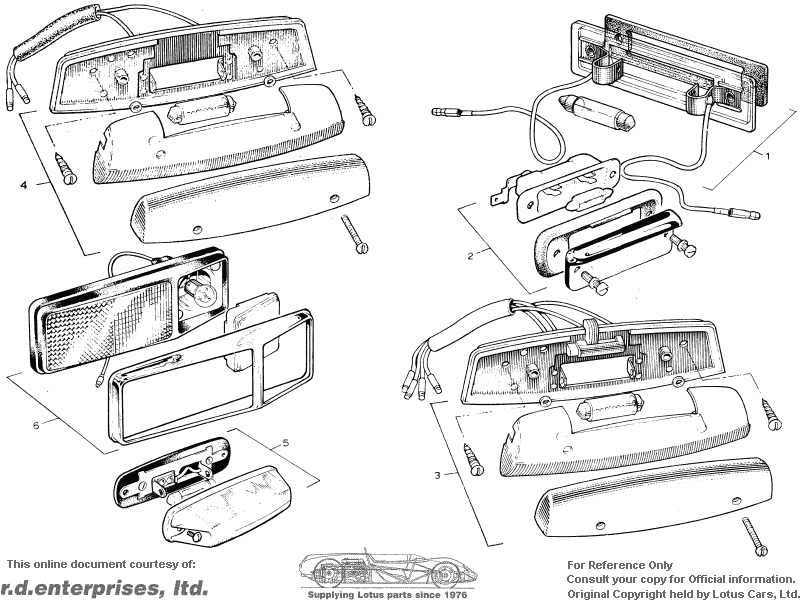

1 | 036M6275 | 2 | 2 | Rear Number Plate Light, Optional, Except U.S.A. | Upto Chassis No. 7894 | ||||||||
046M6144 | 2 | 2 | Rear Number Plate Light, Optional, Except U.S.A. | Upto Chassis No. 7894 | |||||||||
254 | 2 | 2 | Bulb, Optional, Except U.S.A. | Upto Chassis No. 7894 | |||||||||
2 | 036M6253 | 2 | 2 | Rear Number Plate Light | Upto Chassis No. 7894 | ||||||||
036M6253 | 1 | 1 | 2 | 2 | Rear Number Plate Light - U.S.A. only | ||||||||
3 | 036M6048 | 1 | 1 | 1 | 1 | Map Lamp - Coupe only | |||||||
036M6317 | 1 | 1 | 1 | 1 | Bulb | ||||||||
4 | 036M6275 | 1 | 1 | Rear Number Plate Lamp | |||||||||
036M6275 | 1 | 1 | 1 | Courtesy Lamp, Drop Head only | |||||||||
036M6275 | 2 | Courtesy Lamp, Coupe only | |||||||||||
050M6126 | AR | Bulb | |||||||||||
5 | 036M6148 | 1 | 1 | 1 | Courtesy Lamp - Drop Head only | ||||||||
A050M6156 | 1 | 1 | 1 | Bulb | |||||||||
A026M6036 | 2 | 2 | Repeater Flasher | ||||||||||
046M6165 | 2 | 2 | Repeater Flasher | Upto Chassis No. ? | |||||||||
050M6162 | 2 | 2 | Bulb | ||||||||||
036M6001 | 2 | Repeater Flasher | |||||||||||
A036M6330 | 2 | Bulb | From Chassis No. ? | ||||||||||
036M6092 | 2 | 2 | Reflector - Red | Upto Chassis No. ? | |||||||||
036M6093 | 2 | 2 | Reflector - Amber | Upto Chassis No. ? | |||||||||
W083 | 2 | 2 | Moulding Insert - Reflector Mounting | Upto Chassis No. ? | |||||||||
036B6115 | 8 | 8 | Screw, Reflector to Body | Upto Chassis No. ? | |||||||||
036B6001 | 8 | 8 | Nut, Reflector to Body | Upto Chassis No. ? | |||||||||
6 | 036M6281 | 2 | Side Marker Lamp - Red | From Chassis No. ? | |||||||||
036M6282 | 2 | Side Marker Lamp - Amber | From Chassis No. ? | ||||||||||
A036M6330 | 4 | Bulb | From Chassis No. ? | ||||||||||
050B1852 | 2 | Mouldlng Insert, Side Marker Lamp Mounting | From Chassis No. ? | ||||||||||
050B1853 | 2 | Mounting Bracket - Front, Side Marker Lamp Mounting | From Chassis No. ? | ||||||||||
050B1854 | 2 | Mounting Bracket - Rear, Side Marker Lamp Mounting | From Chassis No. ? | ||||||||||
036M0125 | 4 | Earth Lead - Side Marker Lamp | From Chassis No. ? | ||||||||||
6UCN000F | 12 | Nut, Side Marker Lamp to Body | From Chassis No. ? | ||||||||||
A02W0603 | 12 | Washer, Side Marker Lamp to Body | From Chassis No. ? | ||||||||||
036B6033 | 8 | Rivet, Side Marker Lamp to Body | From Chassis No. ? |
