 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

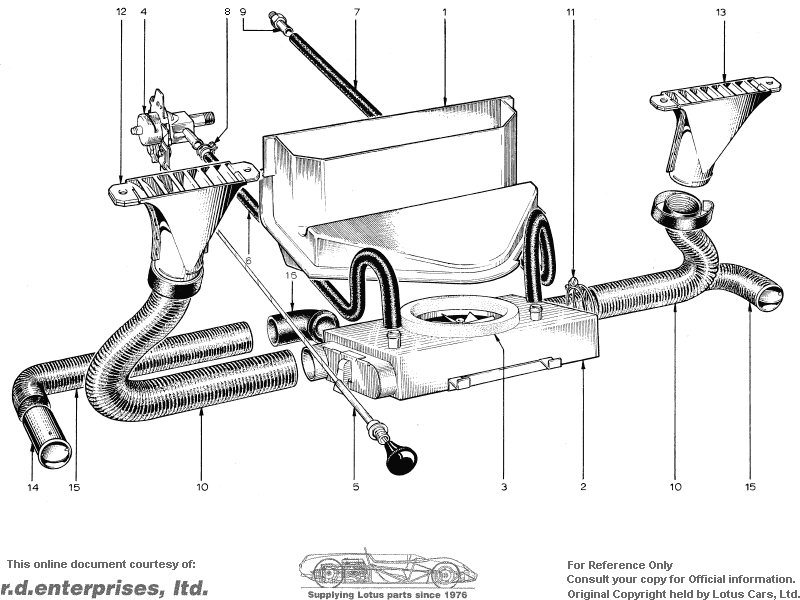

| 1 | 026P0001 | 1 | Plenum Chamber | ||||||||||
| 026B0327 | 1 | Seal, Chamber to Body | |||||||||||
| XUCB0420 | 3 | Bolt, Plenum Chamber Mounting | |||||||||||
| L04W0000 | 3 | Washer, Plenum Chamber Mounting | |||||||||||
| 026P0002 | 1 | 1 | 1 | 1 | Grommet, Drain Valve | Upto 7894 | |||||||
| 036B6166 | 1 | 1 | Grommet, Drain Valve | From 7895 | |||||||||
| 026P0706 | 1 | 1 | Heater Unit | Upto 5810 | |||||||||
| 036P0706 | 1 | Heater Unit | From 5811 to 6599 | ||||||||||
| A036P0706 | 1 | 1 | 1 | Heater Unit | From 6600 to 8787 | ||||||||
| 2 | B036P0706 | 1 | 1 | Heater Unit | From 8787 | ||||||||
| 3 | 026P0004 | 1 | Heater Intake Seal | ||||||||||
| 036P6002 | 1 | 1 | 1 | 1 | Fan Motor | From 5811 | |||||||
| 4 | 036P6003 | 1 | Water Valve | ||||||||||
| 026B0037 | 1 | 1 | 1 | Cable, Heater Control | Upto 7399 | ||||||||
| 5 | A026B0037 | 1 | 1 | 1 | Cable, Heater Control | From 7400 | |||||||
| 026B0313 | 1 | Lockplate, Cable | |||||||||||
| 026B6059 | 1 | Retaining Nut, Cable | |||||||||||
| 026B6060 | 1 | Locking Washer, Cable | |||||||||||
| 026B6061 | 1 | Grommet, Cable | |||||||||||
| 026B0039 | 1 | Bezel, Cable | |||||||||||
| 6 | 026P0005 | 1 | Hose, Heater to Water Valve | ||||||||||
| 7 | 026P0006 | 1 | Hose, Heater to Water Pump | ||||||||||
| 8 | 050P6002 | 4 | Clip, Hose | ||||||||||
| 9 | 036K6010 | 1 | Adaptor, Hose to Water Pump | ||||||||||
| 026P0046 | 2 | 2 | 2 | 2 | 2 | Tube, Heater to Demist Nozzles | Upto 8786 | ||||||
| 10 | 036P0046 | 2 | 2 | Tube, Heater to Demist Nozzles | From 8787 | ||||||||
| 11 | A036P6008 | 4 | Clip, Tube | ||||||||||
| 12 | 050B6047 | 1 | 1 | Demist Nozzle, LH | From 8787 | ||||||||
| 13 | 050B6048 | 1 | 1 | Demist Nozzle, RH | From 8787 | ||||||||
| 14 | 036B6063 | 2 | 2 | 2 | 2 | Face Level Vent | From 6600 | ||||||
| 15 | 036P6009 | 2 | 2 | 2 | 2 | Tube, Vent | From 6600 | ||||||
| 16 | 036P0031 | 2 | 2 | 2 | 2 | Elbow, Tube | From 6600 |
