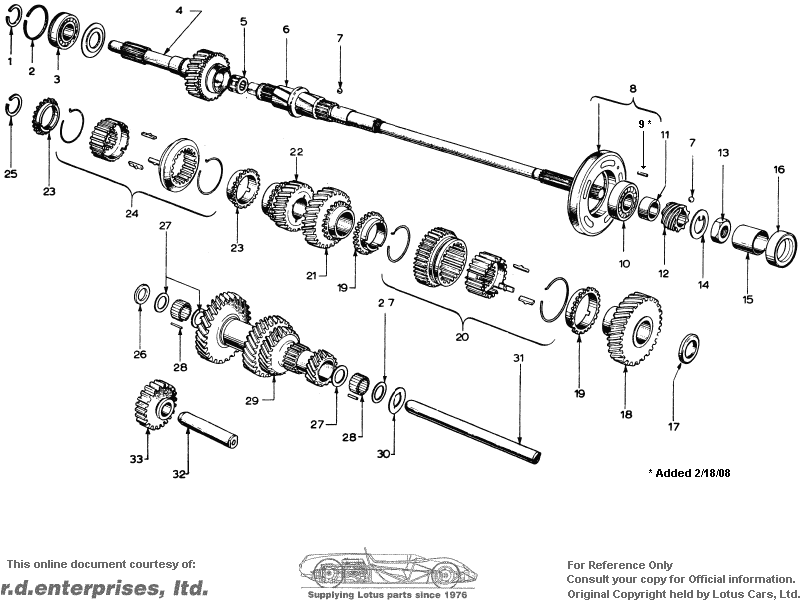

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 105E7160 | 1 | Snap Ring | ||||||||||
| 2 | 105E7026 | 1 | Snap Ring | ||||||||||
| 3 | 69GG7025 | 1 | Bearing | ||||||||||
| 4 | 2821E7017D | 1 | Main Drive Gear (semi close ratio) | ||||||||||
| A028F0020 | 1 | Main Drive Gear (close ratio) | |||||||||||
| 5 | 113E7120A | 1 | Bearing - input shaft | ||||||||||
| 6 | 2821E7061C | 1 | Main Shaft | ||||||||||
| 7 | 353080S | 1 | Ball - 5/16" dia. | ||||||||||
| 8 | E436GA1 | 1 | Housing - Bearing | ||||||||||
| 9 | 306305S | 1 | Pin - Bearing Housing | ||||||||||
| 10 | 113E7065 | 1 | Bearing | ||||||||||
| 11 | 113E17288B | 1 | Spacer | ||||||||||
| 12 | 2821E17285 | 1 | Speedo Gear | ||||||||||
| 13 | 111100ES | 1 | Tab Washer | ||||||||||
| 14 | 114470ES | 1 | Nut | ||||||||||
| 15 | l05E7041D | 1 | Bearing - Extension Housing | ||||||||||
| 16 | 69AG7A292AA | 1 | Seal - Extension Housing | ||||||||||
| 17 | 2821E7071B | 1 | Washer | Added 2/18/08 from Elan+2 Manual | |||||||||
| 18 | 2821E7100A | 1 | Gear - 1st speed (semi-close ratio) | ||||||||||
| 113E7100C | 1 | Gear - 1st speed (close ratio) | |||||||||||
| 19 | 2820E7107-A | 2 | Synchroniser Ring - 1st and 2nd | ||||||||||
| 2824E7107-B | 2 | Synchroniser Ring - 1st and 2nd | |||||||||||
| 20 | 2820E7124A | 1 | Synchroniser Assembly - 1st and 2nd | ||||||||||
| 69BG7124AA | 1 | Synchroniser Assembly - 1st and 2nd | |||||||||||
| 2821E7K080B | 1 | Snap Ring - 1st and 2nd - synchro | |||||||||||
| E457GA-1 | 3 | Insert | |||||||||||
| 2824E7116A | 3 | Insert | |||||||||||
| 211E7109A | 2 | Spring | |||||||||||
| 21 | 2821E7102A | 1 | Gear - 2nd speed (semi-close ratio) | ||||||||||
| A028F0024 | 1 | Gear - 2nd speed (close ratio) | |||||||||||
| 22 | 2821E7B340B | 1 | Gear - 3rd speed (semi-close ratio) | ||||||||||
| A028F0026 | 1 | Gear - 3rd speed (close ratio) | |||||||||||
| 23 | 113E7107D | 2 | Synchroniser Ring - 3rd and 4th | ||||||||||
| 2824E7107B | 2 | Synchroniser Ring - 3rd and 4th | |||||||||||
| 24 | 2820E78280A | 1 | Synchroniser Assembly - 3rd and 4th | ||||||||||
| 69BG78280AA | 1 | Synchroniser Assembly - 3rd and 4th | |||||||||||
| 105E7116B | 3 | Insert | |||||||||||
| 2824E7116B | 3 | Insert | |||||||||||
| 2820E7109A | 2 | Spring | |||||||||||
| 25 | 103E7059B | 1 | Snap Ring | ||||||||||
| 26 | 149686ES18 | 1 | Spacer | ||||||||||
| 27 | 105E7129B | 4 | Washer | ||||||||||
| 28 | E0A7121 | 40 | Roller - needle bearing | ||||||||||
| 29 | 2824E7113B | 1 | Gear - Counter Shaft (S/C/R) | ||||||||||
| A028F0034 | 1 | Gear - Counter Shaft (C/R) | |||||||||||
| 30 | 105E7128B | 1 | Washer - Counter Shaft | ||||||||||
| 31 | 2820E7111A | 1 | Shaft - Counter Shaft | ||||||||||
| 32 | 211E7140B | 1 | Shaft - Reverse Gear | ||||||||||
| 33 | 2824E7142 | 1 | Gear - Reverse idle | ||||||||||
| 113E7143 | 1 | Bush - Reverse Idle Gear |
