Elite/Eclat Parts Manual -- Section BA

ELITE/ECLAT PARTS MANUAL

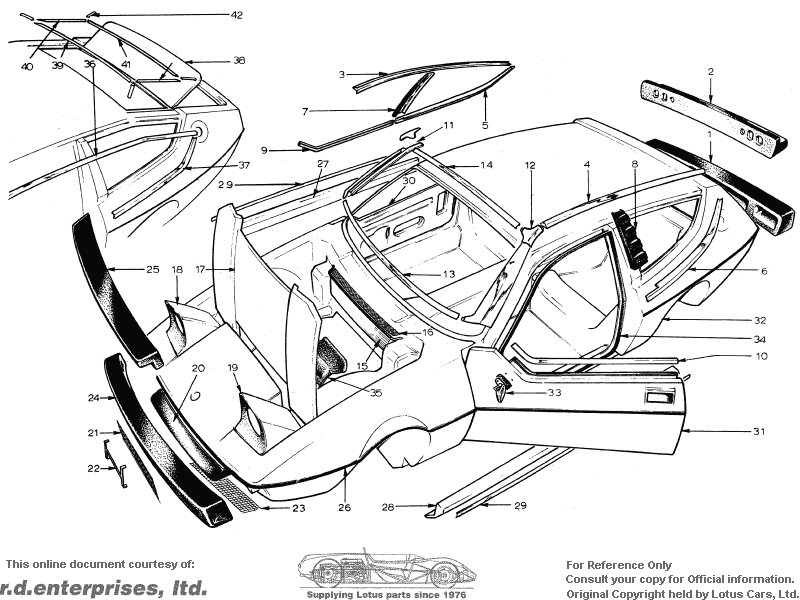

Section BA -- Body -- Bodyshell & Fittings


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
BA 1	Bumper, Rear	C075B2199K	*	*			*	*		1	1
	Bumper, Rear	A075B2233Z	*	*			*	*			1		Switzerland & Italy Only *?
	Bumper, Rear	B083B2324K			*	*	*	*		1	1
	Edging Strip	A075U6054VL	*	*	*	*	*	*		1	1		0.9m long
	Spacer, LH	A075B2308K	*	*			*	*		1	1
	Spacer, RH	A075B2309K	*	*			*	*		1	1
	Bolt, 6 x 25mm	A075W1031F	*	*			*	*		6	6
	Penny Washer, 6mm	A075W4017ZJ	*	*			*	*		6	6
	Spring Washer, 6mm	A075W4035ZL	*	*			*	*		6	6
	Nyloc Nut	A075W3010ZK	*	*			*	*		2	2
	Foam Seal, Rear Lamp	B075U0544ZH	*	*			*	*		2	2
	Rear Light Housing, RH	B083B2346K			*	*	*	*		1	1
	Rear Light Housing, LH	B083B2347K			*	*	*	*		1	1
	Gasket, Rear Light Housing/Bumper	A083B2352F			*	*	*	*		2	2
BA 2	Bumper, Rear, Foam & Plinth	A075U0707WA	*	*			*	*				1	Also Japan.
	Skinned Foam, Rear Bumper	A075B2204ZF	*	*			*	*				1
	Seal, Foam/Plinth	A075U6060ZB	*	*			*	*				1
	Adhesive, Witco BU180	A075U6061V	*	*			*	*				AR	2 Part Adhesive.
	Adhesive, Witco BY9	A075U6062ZV	*	*			*	*				AR	2 Part Adhesive.
	Adaptor, No. Plate	A075U0537Z	*	*			*	*				2
	Rubber Gasket, Lower Plinth/Body	B075U0538FA	*	*			*	*				1
	Rubber Gasket, Upper Pllnth/Body	A075U0552ZD	*	*			*	*				1
	Piping	A075U6047ZJ	*	*			*	*				AR	Balnes 344.
	Foam Seal, Rear Lamps	B075U0544Z	*	*			*	*				2
	Mfg. Bracket, Rear Bumper	A075U0556ZB	*	*			*	*				2
	Rawlnut, 8mm	A075W6037ZD	*	*			*	*				8
	Bolt, 8mm x 40	A075W2039ZD	*	*			*	*				8
	Washer, 8mm	A075W4020ZB	*	*			*	*				8
	Screw, 10 UNF	A075W5058ZB	*	*			*	*				4
	Washer 3/16"	A075W4000ZA	*	*			*	*				4
	Pop Rivet	A075W6068ZG	*	*			*	*				4
BA 3	Drip Gutter, RH	C075U0140ZA	*	*			*	*				1
BA 4	Drip Gutter, LH	C075U0141ZF	*	*			*	*				1
	Drip Gutter, RH	B076U0584ZB		*		*	*	*				1
BA 36	Drip Gutter, LH	B076U0585ZG		*		*	*	*				1
	Screw	A075W5037ZG	*	*	*	*	*	*				10
	Double Sided Tape	A075B6015VH	*	*	*	*	*	*				AR
BA 5	Finisher, Qtr. Light, Lower RH	E075U0138ZK	*		*		*	*	1
BA 6	Finisher, Qtr. Light, Lower LH	E075U0139ZD	*		*		*	*	1
	Finisher, Side, Rear, Lower, RH	A076U0602Z		*		*	*	*	1
BA 37	Finisher, Side, Rear, Lower, LH	A076U0603Z		*		*	*	*	1
	Clip	A075W6048D	*	*	*	*	*	*	12
	Rivet	A075W6071ZJ	*	*	*	*	*	*	12
	Washer	A075W4007ZC	*	*	*	*	*	*	12
BA 7	Finisher, 'BC', Post, RH	C075U0144K	*	*	*	*	*	*	1
BA 8	Finlsher, 'BC', Post, LH	C075UO145K	*	*	*	*	*	*	1
	Rivet	A075W6071ZJ	*	*	*	*	*	*	4
	Screw	A075W5015ZG	*	*	*	*	*	*	4
BA 9	Finisher, Door, Window Level, RH	B075U0142ZG	*	*	*	*	*	*	1
BA 10	Finisher, Door, Window Level, LH	BO75UO143ZA	*	*	*	*	*	*	1
	Clip	A075W6048DD	*	*	*	*	*	*	10
	Rivet	A075W6071ZJ	*	*	*	*	*	*	10
	Washer	A075W4001ZF	*	*	*	*	*	*	10
BA 11	Finisher, 'A' Post, RH	A075U0650ZA	*	*	*	*	*	*	1
	Finisher, 'A' Post Cap. RH	A075U0652ZL	*	*	*	*	*	*	1				Corner Piece.
BA 12	Finisher, 'A' Post, LH	A075U0651ZF	*	*	*	*	*	*	1
	Finisher, 'A' Post Cap, LH	A075U0653ZE	*	*	*	*	*	*	1				Corner Piece.
	Screw	A075W5037ZG	*	*	*	*	*	*	6
	Adhesive 3m 8101 (A)	A075U6073VG	*	*	*	*	*	*	AR				For 'A' Post.
	Adhesive 3m 8101 (B)	A075U6074VA	*	*	*	*	*	*	AR				For 'A' Post.
	Bracket, Carrier, 'A' Post, RH	A075U1054F	*	*	*	*	*	*	1
	Bracket, Carrler, 'A' Post, LH	A075U1055F	*	*	*	*	*	*	1
	Double Sided Tape	A075B6015VH	*	*	*	*	*	*	AR
BA 13	Finisher, Windscreen, Lower, RHD	A075U0160ZE	*	*	*	*	*	*		1
	Finisher, Windscreenr Lower, LHD	A075U0159ZL	*	*	*	*	*	*		1	1
BA 14	Finisher, Windscreen, Upper	D075U0150ZL	*	*	*	*	*	*	1
	Clip, 8mm	D075U0152Z	*	*	*	*	*	*	8				Lower, Except Centre *?
	Clip, 10mm	D075U0402Z	*	*	*	*	*	*	6				Upper & Lower Centre *?
	Pop Rivet, 3/32"	A075W6065ZA	*	*	*	*	*	*	14
BA 15	Plenum Chamber, Front	C075B2178ZC	*	*	*	*	*	*	1
	Plenum Chamber, Front	DX75B2178K	*	*	*	*	*	*	1				S1 Elite Stage 2 & 3 B *?
	Plenum Chamber Seal	A075U6056VK	*	*	*	*	*	*	1				Replaces A075U6038Z
BA 16	Grille, Plenum Chamber	B075U0318Z	*	*	*	*	*	*	1
	Drain Tube, Front	A075U0413ZL	*	*	*	*	*	*	2
	Heater Intake Water Shield	A075U1147K	*	*	*	*	*	*	1
	Watershleld, Plenum Chamber, LH	B075U1141K	*	*	*	*	*	*	1
	Watershield, Plenum Chamber, RH	B075Ul140K	*	*	*	*	*	*	1
	Screw, Grille	A075W5028ZF	*	*	*	*	*	*	3
	Screw, Chambers	A075W5009ZK	*	*	*	*	*	*	10
BA 17	Bonnet Assy.	B075B0952W	*				*	*	1
	Bonnet Assy.	A076B2285K		*			*	*	1
	Bonnet Assy.				*	*	*	*	1
	Bonnet Grille	B075U0317ZB	*	*	*	*	*	*	1
BA 18	Pod, Headlamp, RH	A075B2122ZA	*				*	*	1
	Pod, Headlamp, RH	A076B2284K		*			*	*	1
	Pod, Headlamp, RH	A083B2344K			*	*	*	*	1
BA 19	Pod, Headlamp, LH	A075B2123ZF	*				*	*	1
	Pod, Headlamp, LH	A076B2283K		*			*	*	1
	Pod, Headlamp, LH	A083B2345K			*	*	*	*	1
	Bobbin, Pod/Body	A075B2205ZL	*	*	*	*	*	*	4
	Bolt	A075W1082DB	*	*	*	*	*	*	4
BA 20	Spoiler	B075 B2202ZL	*	*	*	*	*	*	1
	Jacknuts, 6mm	A075W3034ZJ	*	*	*	*	*	*	3
	Piping, Spoiler	A075B6040V	*	*	*	*	*	*	1				1.5m long
	Spoiler, Front	A083B2330K	*	*	*	*	*	*	1
	Bobbin	A075B2168ZL	*	*	*	*	*	*	AR
BA 21	Grille, Front Inlet	A075U0466ZA	*	*	*	*	*	*		1	1
	Grommet	A036B6150Z	*	*	*	*	*	*		2	2
	Screw	A075W5041ZE	*	*	*	*	*	*		2	2
	Washer	A075W4000ZA	*	*	*	*	*	*		2	2
BA 22	Front No. Plate Mounting	A075U0487ZG	*	*	*	*	*	*		1	1
	Screw	A075W5041ZE	*	*	*	*	*	*		2	2
	Washer	A075W4000ZA	*	*	*	*	*	*		2	2
	Lokut Nut	A075W6039ZC	*	*	*	*	*	*		2	2
	Drive Fastener	A075W6041ZB	*	*	*	*	*	*		2	2
BA 23	Grille, Front Lower Inlet	A075U0546ZG	*	*	*	*	*	*		1
	Screw	A075W1028ZG	*	*	*	*	*	*	2
	Washer, Spring	A075W4035ZL	*	*	*	*	*	*	2
	Washer	A075W4014ZE	*	*	*	*	*	*	2
	Screw S/T	A075W5034ZC	*	*	*	*	*	*	2
	Washer	A075W4000ZA	*	*	*	*	*	*	2
BA 24	Bumper, Front	C075B2198Z	*	*	*	*	*	*	1
	Rubber Section	A075U6054VL	*	*	*	*	*	*	1				4.4m long
	Bolt, 8mm x 20	A075W1038ZB	*	*	*	*	*	*	6
	Washer, Penny	A075W4021ZG	*	*	*	*	*	*	6
	Mounting Bracket, Upper	A075U0540ZK	*	*	*	*	*	*	2
	Washer, Spring	A075W4036ZE	*	*	*	*	*	*	6
BA 25	Bumper, Front, Assy.	A075U0706WG	*	*	*	*	*	*				1	Up to & inc. 1976 Spec.
	Bumper, Front, Assy.	A075B0979J	*	*	*	*	*	*				1	1977 Spec. on.
	Skinned Foam, Front Bumper	A075B2200Z	*	*	*	*	*	*				1	Up to & Inc. 1976 Spec.
	Skinned Foam, Front Bumper	A075B2301F	*	*	*	*	*	*				1	1977 Spec. on.
	Seal, Skinned Foam/Plinth	A075U6060ZB	*	*	*	*	*	*				1
	Adhesive, Witco BU180	A075U6061V	*	*	*	*	*	*				AR	2 Part Adhesive.
	Adhesive, VAtco BY9	A075U6062V	*	*	*	*	*	*				AR	2 Part Adhesive.
	Bumper Edging Strip	A075U6054VL	*	*	*	*	*	*	1				0.6m long
	Rubber Gasket, Front Bumper/Body	B075U0539FF	*	*	*	*	*	*				1	Up to & inc. 1976 Spec.
	Rubber Gasket, Front Bumper/Body	A075B2302F	*	*	*	*	*	*	1			1	1977 Spec. on.
	Piping	A075U6047VJ	*	*	*	*	*	*				1	1.3m long, Baines 344.
	Bolt	A075W2039ZD	*	*			*	*				8
	Washers	A075W4020ZB	*	*			*	*				8
	Rawlnuts	A075W6037ZD	*	*			*	*				8
	Insert, Licence Plate Ret., Front	A075B2209Z	*	*			*	*				2
Not Illus.	Plinth, Front Bumper	A075B2201Z	*	*			*	*				1	Up to & inc. 1976 Spec.
	Plinth, Front Bumper	A075B2300J	*	*			*	*				1	1977 Spec. on.
	Foam, Outboard Beam, LH	A075B2219Z	*	*			*	*				1
	Foam, Outboard Beam, RH	A075B2220Z	*	*			*	*				1
BA 35	Air Duct	A075B2190ZL	*	*			*	*	1				Centre Cut Out.
	Air Duct	C075B2190Z	*	*			*	*	1				Offset Cut Out.
	Air Duct	B075B2190Z	*	*			*	*				1	With Air Pump.
BA 26	Trim Strip, Waistband (Bright Edge)	A075U6035ZB	*	*			*	*	AR				Up to units 1599A, 16? 1602A, 1604A to 1610, ? 1612A to 1625A, 0515 ? 0237C, 0102K, 0109L, ?
	End Caps	D075U0434Z	*	*			*	*	8				Up to units 1599A, 16? 1602A, 1604A to 1610, ? 1612A to 1625A, 0515 ? 0237C, 0102K, 0109L, ?
	Trim Strip, Waistband (Black Section	B075U6035ZB	*	*			*	*	AR				Up to units 1599A, 16? 1602A, 1604A to 1610, ? 1612A to 1625A, 0515 ? 0237C, 0102K, 0109L, ?
	Trim Strip, Waistband	B076U6005F	*	*			*	*	AR				Elite, from 1600A, 16? 1611A, 1626A on, 051? 1611A, 1626A on, 051 on, 0238C on 0103K on*? 0110L on, all inc.
	Carrier, Trim Strip, Door	A076U1143F	*	*	*	*	*	*	2				Used with Trim Strip B076U6005F, Replace? Strip, Door B076U600? on Eclat. Elite. From 1600A, 1? 1611A, 1626A on, 05? on, 0238C on, 0103K *? & 0110L on, all inc.
	Pop Rivet	A075W6092Z	*	*	*	*	*	*	20				Used with Trim Strip B076U6005F, Replace? Strip, Door B076U600? on Eclat. Elite. From 1600A, 1? 1611A, 1626A on, 05? on, 0238C on, 0103K *? & 0110L on, all inc.
	Insert, ABS	A076U1094F		*			*	*	4
	Adhesive IS. 150	A075U6059Z		*			*	*	AR				For ABS Insert.
	Adhesive, Rakol-Kleber R1Ol Pt. A	A075U6088V	*	*	*	*	*	*	AR				For Trim Strip Waistband B076U6005F
	Adhesive, Rakol-Kleber R101 Pt. B	A075U6089V	*	*	*	*	*	*	AR				For Trim Strip Waistband B076U6005F
	Adhesive, Superfast Epoxy	A050V6004VB	*				*	*	AR				End Caps, Trim Waistband
	Adhesive, Superfast Epoxy	A050V6005VG	*				*	*	AR				End Caps, Trim Waistband
	Primer	A050B6185VC	*				*	*	AR				End Caps, Trim Waistband
BA 27	Sill, RH	B075U0146ZE	*				*	*	1
	Sill, RH	AX75B2224Z	*	*			*	*	1				For Elite Stage 2 Body.
	Sill, RH	A083B2331K	*		*	*	*	*	1				For Elite S1 Stage 3 Body.
	Sill, LH	B075U0147ZK	*				*	*	1
	Sill, LH	AX75B1243Z	*	*			*	*	1				For Elite Stage 2 Body.
	Sill, LH	A083B2332K			*	*	*	*	1				For Elite S1 Stage 3 Body.
	Spacer	C075U0194ZG	*	*			*	*	2
	Double Sided Tape	A075B6015VH	*	*			*	*	AR
BA 29	Trim Strip, Door Sill	A075U0723F	*	*	*	*	*	*	2				Replaces X050B1274ZA.
	Clip	A075W6116F	*	*	*	*	*	*	20				Replaces A075W6058ZK.
	Pod (Pop*?) Rivet	A075W6069ZK	*	*	*	*	*	*	20
BA 30	Door Shell, RH	A075B2126ZK	*				*	*	1
	Door Shell, RH	A076B2286		*			*	*	1
	Door Shell, RH	B075B2126K			*	*	*	*	1
	Window Channel Blank Plate, RH	A075B2306C	*	*	*	*	*	*	1				ABS
	Door Lock Rods Blank Plate, RH	A075B2305C	*	*	*	*	*	*	1				ABS
	Window Motor Blank Plate, RH	A075B2318K	*	*	*	*	*	*	1				ABS
BA 31	Door Shell, LH	A075B2127ZD	*				*	*	1
	Door Shell, LH	A076B2287K		*			*	*	1
	Door Shell, LH	B075B2127K			*	*	*	*	1
	Window Channel Blank Plate, LH	A075B2307C	*	*	*	*	*	*	1				ABS
	Door Lock Rods Blank Plate, LH	A075B2305C	*	*	*	*	*	*	1				ABS
	Window Motor Blank Plate, LH	A075B2317K	*	*	*	*	*	*	1				ABS
	ABS Strip, 1.75mm	A076U1097V		*			*	*	AR				Door Trim Packing.
	ABS Strip, 2.75mm	A076U1098V		*			*	*	AR				Door Trim Packing.
BA 34	Door Seal	A075U6005ZB	*	*	*	*	*	*	2
	Lower Door Seal	A075U0646ZC	*	*	*	*	*	*	2
BA 33	Door Mirrors, Flat	A075U6030ZF	*	*			*	*	2				Cromodora.
	Door Mirrors, Convex	A075U6086F	*	*			*	*		2	2
	Door Mirrors, Flat	A075U6085F	*	*			*	*				2	Raydot.
	Door Mirror, Electric, RH	A079M6107F	*	*			*	*		1	1
	Door Mirror, Electric, RH	A079U6052F			*	*	*	*		1	1
	Door Mirror, Electric, LH	A079M6108F	*	*			*	*		1	1
	Door Mirror, Electric, LH	A079U6051F			*	*	*	*		1	1
	Mirror Glass, Convex	A079U6064F	*	*	*	*	*	*		AR	AR
	Bezel	A079U6071F	*	*	*	*	*	*		AR	AR
	Door Mirror, Electric, RH	A079M6109F	*	*			*	*				1
	Door Mirror, Electric, RH	A079U6054F			*	*	*	*				1
	Door Mirror, Electric, LH	A079M6110F	*	*			*	*				1
	Door Mirror, Electric, LH	A079U6053F			*	*	*	*				1
	Mirror Glass, Flat	A079U6063F	*	*	*	*	*	*				AR
	Bezel	A079U6071F	*	*	*	*	*	*				AR
BA 38	Boot Lid Assy.	A076B2288K		*			*	*	1
	Boot Lid Assy.	A084B2342J				*	*	*	1
	Boot Lid Seal	B076U6003F		*		*	*	*	1
	Boot Lid Tension Spring	A076U0591Z		*		*	*	*	1
	Boot Hinge Assy, RH	B076U0260Z		*		*	*	*	1
	Boot Hinge Assy, LH	B076U0619Z		*		*	*	*	1
	Boot Hinge Arm, RH	A076U1082F		*		*	*	*	1
	Boot Hinge Arm, LH	A076U1083F		*		*	*	*	1
	Reinforcing Plate	A076U0676Z		*		*	*	*	1
	Shim, Boot Lid to Hinge Arm	A076U0600Z		*		*	*	*	AR
	Screw 8 x 20mm, Hinge/Boot Lid	A075W1038ZB		*		*	*	*	4
	Washer, Plain	A075W4020ZB		*		*	*	*	4
	Boot Lock Assy.	A076U6013		*			*	*	1
	Boot Lock Assy.	A083U6093F				*	*	*	1
	Shakeproof Washer 3/4 I/D	A076W4050F		*		*	*	*	1
	Latch, Boot Lock	A076U1067F		*		*	*	*	1
	Lock Plate, Boot Lock	A076U1053F		*		*	*	*	1
	Spring, Boot Lock Latch	A076U1068F		*		*	*	*	1
	Striker, Boot Lock	A076U1069F		*		*	*	*	1
	Shim, Striker/Boot Lid	A076U0618Z		*		*	*	*	AR
	Screw 8 x 20mm	A075WI038ZB		*		*	*	*	2
	Washer	A075W4020ZB		*		*	*	*	2
BA 39	Finisher, Backllght, Upper	B076U0609FE		*		*	*	*	1
BA 40	Finisher, Backllght, LH & RH	B076U0610FK		*		*	*	*	2
BA 41	Finisher, Backlight, Lower	B076U0612FJ		*		*	*	*	1
BA 42	Cap, Finisher, Corner Piece	B076U0613Z		*		*	*	*	4
BA 22	Body, Full, RHD (Stage 1)	A075B1800WH	*				*	*	1				Up to 1599A, 1601A, 1602A to 1610A, 1612*? 1625A, inc.
	Body, Full, RHD (Stage 2)	AX75B2234W	*				*	*	1				Up to 1599A, 1601A, 1602A to 1610A, 1612*? 1625A, inc.
	Body, Full, RHD (Stage 3)	A075B2327K	*				*	*	1				Nos. 1600A, 1603A, 1*? & 1626A on.
	Body, Full, RHD (Stage 1, Australia)	A075B2303K	*				*	*				1	Up to nos. 2037C inc.
	Body, Full, RHD (Stage 3, Australia)	A075B2329K	*				*	*				1	From 0238C inc.
	Body, Full, LHD (Stage 1)	A075B1801W	*				*	*			1	1	Up to nos. 5015B, 023*? 0102K & 0109L, inc.
	Body, Full, LHD (Stage 2)	AX75B2235W	*				*	*			1	1	Up to nos. 5015B, 023*? 0102K & 0109L, inc.
	Body, Full, LHD (Stage 3)	A075B2328K	*				*	*			1	1	From nos. 0516B, 0238*? 0103K & 0110L inc.
	Body, Full, RHD	AO76BT800W		*			*	*		1
	Body, Full, RHD (Australia)	A076B2304K		*			*	*				1
	Body, Full, LHD	A076B1801W		*			*	*			1	1
	Body, Full, RHD	A083B2348J			*		*	*
	Body, Full, RHD (Australia)	AO83B2353J			*		*	*				1
	Body, Full, LHD	A083B2349J			*		*	*			1	1
	Body, Full, RHD	A084B23SOJ				*	*	*		1
	Body, Full, RHD (Australia)	A084B2354J				*	*	*				1
	Body, Full, LHD	A084B2351J				*	*	*			1	1
	Heat Shield, Body, Upper Engine Bay	A075B2263FA	*	*	*	*	*	*				1	1975 Spec. Onwards.
	Heat Sheld, Body, Lower Engine Bay	A075B2269FJ	*	*	*	*	*	*				1	1975 Spec. Onwards.
	Pop Rivets	A075W6071ZJ	*	*	*	*	*	*				8	1975 Spec. Onwards.
	Heat Shield, Rear Seat, RH	A075B2294F	*	*	*	*	*	*				1	1976 Spec. Onwards.
	Heat Shield, Rear Seat, LH	A075B2295F	*	*	*	*	*	*				1	1976 Spec. Onwards.
	Pop Rivets	A075W6090ZE	*	*	*	*	*	*				20	1976 Spec. Onwards.
	Washers	A075W4001ZF	*	*	*	*	*	*				10	1976 Spec. Onwards.
	Silastic	A036E6027VJ	*	*	*	*	*	*				AR	1976 Spec. Onwards.
	Heat Shield, Engine Mounting	A907E1247F	*	*	*	*	*	*	1				Chassis Mounted, Replac*? B907E1041F mounted on engine.
	Vynil Roof, Tan	A075V1346K	*	*	*	*	*	*	AR
	Vynil Roof, Black	A075V1550K	*	*	*	*	*	*	AR
	Vynil Roof, Blue	A075VI348K	*	*	*	*	*	*	AR
	Vynil Roof, Saddle	A075V1347K	*	*	*	*	*	*	AR
	3mm Foam Sheet	A079V6010V	*	*	*	*	*	*	AR
	Clamp Plate, Rear	A075U1014F	*		*		*	*	1
	Clamp Plate, Rear	A076U1105F		*		*	*	*	1
	Clamp Plate, Front, Short	A075UI015F	*	*	*	*	*	*	2
	Clamp Plate, Front, Long	A075U1016F	*	*	*	*	*	*	3
	Pop Rivet, Sealed	A075W6071ZJ	*		*		*	*	22
	Pop Rivet, Sealed	A075W6071ZJ		*		*	*	*	13
	Pop Rivet, Sealed	A076W6190F		*		*	*	*	9
	Adhesive	A075V6032V	*	*	*	*	*	*	AR				Dunlop S.1358.
	Silastic, Clear	A075U6044V	*	*	*	*	*	*	AR
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
