Elite/Eclat Parts Manual -- Section BD

ELITE/ECLAT PARTS MANUAL

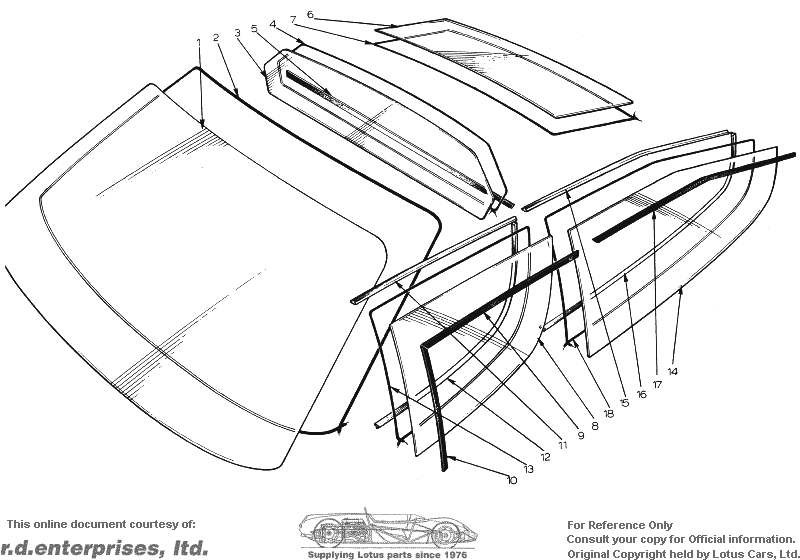

Section BD -- Body -- Glass


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
BD 1	Windscreen, Clear	A075U0219ZE	*	*	*	*	*	*	1
	Windscreen Tinted	A075U0220ZK	*	*	*	*	*	*	1
BD 2	Solbit, Windscreen	A075B6006ZA	*	*			*	*	1	R/B A075B6158J Betaseal Kit
	Betaseal Kit	A075B6158J	*	*	*	*	*	*	1	See Bulletin 1978/30.
BD 3	Glass, Interior	A075U0236ZB	*		*		*	*	1
BD 4	Solbit, Interior Glass	A075B6011ZD	*		*		*	*	1
BD 5	Trim, Interior Glass	B075U0467ZK	*		*		*	*	1
BD 6	Backlight, Clear, Heated	B076U0570Z		*		*	*	*	1
	Backlight, Tinted, Heated	B076U0571Z		*		*	*	*	1
	Backlight, Clear	A076U0572Z		*		*	*	*	1
BD 7	Solbit, Backlight	A076B6001Z		*		*	*	*	1	R/B A075B6158J Betaseal Kit
	Betaseal Kit	A075B6158J		*		*	*	*	1	See Bulletin 1978/30.
BD 8	Glass, Qtr. Lt, Rear, LH, Clear	B075U0225ZK	*		*		*	*	1
	Glass, Qtr. Lt, Rear, LH, Tinted	A075U0227ZJ	*		*		*	*	1
BD 9	Finisher, Qtr. Lt, Exterior, Upper, LH	A075U0137ZH	*				*	*	1	Up to & inc. 0833A, 046*? & 0132C.
	Finisher, Qtr. Lt, Exterior, Upper, LH	A075U1108F	*		*		*	*	1	From 0834A, 0470B & 01*?
BD 10	Finisher, Qtr. Lt, Exterior, BC Post, LH	C075U0134ZD	*	*			*	*	1	Up to & inc. 0833A, 046? 0132C, 0204D, 0162E & ?
	Finisher, Qtr. Lt, Exterior, BC Post, LH	D075U1107F	*	*	*	*	*	*	1	From nos. 0834A, 0470B, ? 0133C, 0205D, 0163E & ?
BD 11	Finisher, Qtr. Lt, Interior, Upper LH	B075U0447ZJ	*		*		*	*	1
BD 12	Finisher, Qtr. Lt, Interior, Lower LH	B075UO445ZK	*		*		*	*	1
	Glass, Qtr. Lt, Rear, RH, Clear	A075U0224ZE	*		*		*	*	1
	Glass, Qtr. Lt, Rear, RH, Tinted	C075U0226ZD	*		*		*	*	1
	Finisher, Qtr. Lt, Exterior, Upper RH	C075U0137ZH	*				*	*	1	Up to & inc. 0833A, 04*? 0132C.
	Finisher, Qtr. Lt, Exterior, Upper RH	D075U0137Z	*		*		*	*	1	From 0834A, 0470B & 01*?
	Finisher, Qtr. Lt, Exterior, BC Post, RH	C075U0135ZJ	*				*	*	1	Up to & inc. 0833A, 04*? 0132C.
	Finisher, Qtr. Lt, Exterior, BC Post, RH	D075U0135Z	*		*		*	*	1	From 0834A, 0470B & 01*?
	Finisher, Qtr. Lt, Interior, Upper, RH	B075U0446ZD	*		*		*	*	1
	Finisher, Qtr. Lt, Interior, Lower, RH	B075U0444ZE	*		*		*	*	1
BD 13	Solblt, Rear Qtr. Light Glass	B075B6008ZD	*		*		*	*	1	5M.
BD 14	Glass, Side, LH, Clear	A076U0575Z		*		*	*	*	1
	Glass, Side, LH, Tinted	A076U0573Z		*		*	*	*	1
BD 15	Finisher, Side, Rear, Upper, Int, LH	A076U1059F		*		*	*	*	1	Black.
BD 16	Finisher, Side, Rear, Lower, Int, RH	A076U1057F		*		*	*	*	1	Black.
BD 17	Finisher, Side, Upper, Exterior, LH	A076Ul109F		*		*	*	*	1	ABS.
	Glass, Side, RH, Clear	A076U0576Z		*		*	*	*	1
	Glass, Side, RH, Tinted	A076U0574Z		*		*	*	*	1
	Finisher, Side, Rear, Upper, Int, RH	A076U1058F		*		*	*	*	1	Black.
	Finisher, Side, Rear, Lower, lnt, RH	A076U1056F		*		*	*	*	1	Black.
	Finisher, Side, Upper, Exterior, RH	B076U0692F		*		*	*	*	1	ABS.
BD 18	Solbit, Glass, Side	A076B6000Z0		*		*	*	*	2	2.40M.
	Solbit Primer	A075B6012ZJ0	*	*	*	*	*	*	1	10cc
	Double Sided Adhesive Tape, 25mm	A075U6070VC	*	*	*	*	*	*	AR	Fin. Qtr. Lt, Ext. Upp*?
	Double Sided Adhesive Tape, 12.7mm	A075U6071VH	*	*	*	*	*	*	AR	Fin. Qtr. Lt, Ext. BC *?
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
