ELITE/ECLAT PARTS MANUAL

Section BE -- Body -- Tailgate

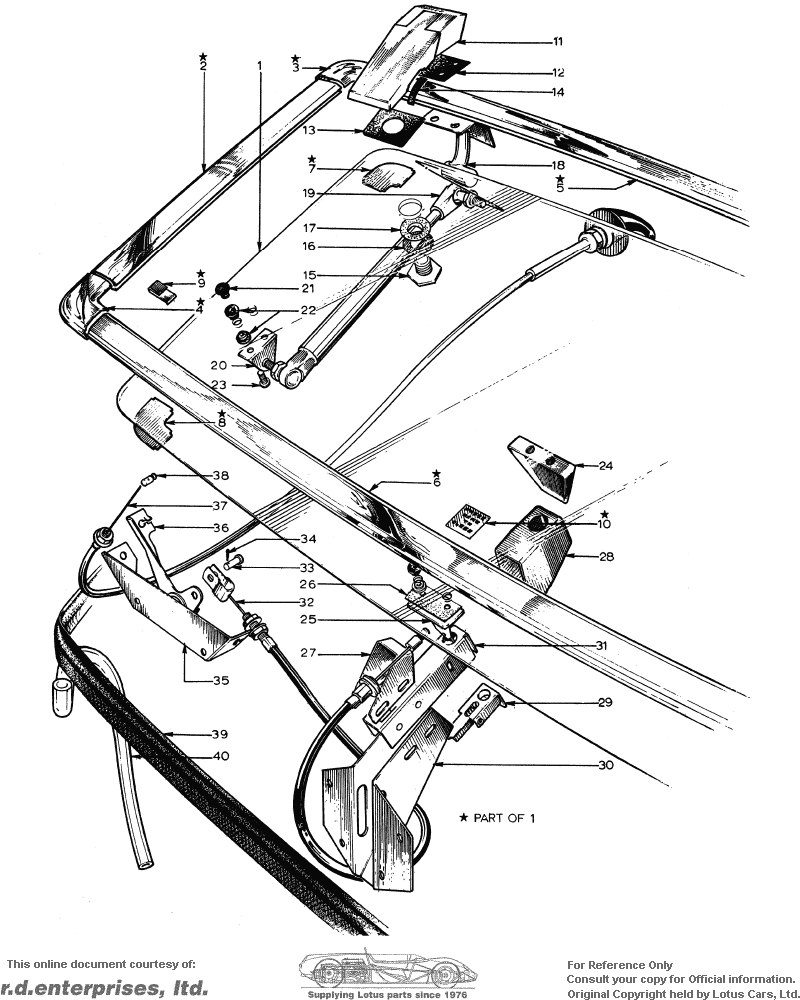

PLATE Ref. No.	DESCRIPTION	PART NO.									REMARKS
BE 1	Tailgate Glass, Plain, c/w Finisher Assy	A075U6063S	*		*	*	1
	Tailgate Glass, Tinted, c/w Finisher Assy	A075U6064SE	*		*	*	1
	Tailgate Glass, Tinted & Heated, c/w Finisher Assy.	A075U6065SK	*		*	*	1
	Tailgate Glass, Tinted & Heated, c/w Finisher Assy.	A083U0733J		*	*	*	1
	Finisher Assy.	G075U0702W	*	*	*	*	1
BE 2	Finisher Strip, LH	A075U0281ZG	*	*	*	*	1				Finisher Assy.
	Finisher Strip, RH	A075U0282ZA	*	*	*	*	1				Finisher Assy.
BE 3	Corner Cap, Upper, LH	E075U0283ZL	*	*	*	*	1				Finisher Assy.
	Corner Cap, Upper, RH	A075U0458ZE	*	*	*	*	1				Finisher Assy.
BE 4	Corner Cap, Lower	F075U0284ZJ	*	*	*	*	2				Finisher Assy.
BE 5	Finisher Strip, Upper	A075U0287ZD	*	*	*	*	1				Finisher Assy.
BE 6	Finisher Strip, Lower	B075U0288ZB	*	*	*	*	1				Finisher Assy.
BE 7	Inner Plate, Comer Cap, Upper	F075U0285ZC	*	*	*	*	2				Finisher Assy.
BE 8	Inner Plate, Comer Cap, Lower	F075U0286ZH	*	*	*	*	2				Finisher Assy.
BE 9	Clips, Trim to Glass	C075U0589FG	*	*	*	*	12				Finisher Assy.
BE 10	Label - "Press Here to Close"	A075U0694FJ	*	*	*	*	1				Finisher Assy.
	Adhesive, Trim Clip to Glass	A075U6045VK	*	*	*	*	AR
	Adhesive, Corner Cap to Finisher :-
	Resin	A050V6004VB	*	*	*	*	AR
	Hardener	A050V6005VG	*	*	*	*	AR
BE 11	Hinge Assy, LH	A075U0703W	*		*	*	1				Up to 0528A, 0419B, *? 0077C, inc.
	Hinge Assy, RH	A075U0704W	*		*	*	1				Up to 0528A, 0419B, *? 0077C, inc.
	Hinge Assy, LH	B075U0703W	*	*	*	*	1				From 0529A, 0420B, *? 0078C, inc.
	Hinge Assy, RH	B075U0704W	*	*	*	*	1				From 0529A, 0420B, *? 0078C, inc.
BE 12	Gasket, Hinge to Body	C075U0369ZF	*	*	*	*	2
BE 13	Gasket, Hinge to Glass	E075U0370ZH	*	*	*	*	2
BE 14	"Ladac", Hinge to Finisher	A036B6213VC	*	*	*	*	AR
BE 15	Bolt, Hinge to Glass	A075U0542ZJ	*	*	*	*	2
BE 16	Washer, Hinge to Glass	B075U0543ZG	*	*	*	*	2
BE 17	Gasket, Hinge to Glass	A075U0545ZB	*		*	*	2				Up to 0528A, 0419B, 0077C *?
	Gasket, Hinge to Glass	B075U0545Z	*	*	*	*	2				From 0529A, 0420B, 0078C *?
BE 18	Mtg. Bracket, Gas Strut, LH	C075U0389ZG	*	*	*	*	1
	Mtg. Bracket, Gas Strut, RH	C075U0390ZA	*	*	*	*	1
	Nut, Hinge to Body & Gas Strut	A075W3009ZE	*	*	*	*	8
BE 19	Gas Strut	A075U0433ZA	*	*	*	*	2
BE 20	Mtg. Bracket, Gas Strut to Glass	A075U0385ZA	*	*	*	*	2
	Nut, Strut to Bracket	A075W3010ZK	*	*	*	*	2
	Washer	A075W4020ZB	*	*	*	*	2
BE 21	Cap Nut	B075U6026ZA	*	*	*	*	6				2 for Striker Fixing.
BE 22	Shoulder Washer	A075U6027ZB	*	*	*	*	12				4 for Striker Fixing.
BE 23	Bolt, Mounting Bracket to Glass	A075U6028ZG	*	*	*	*	6				2 for Striker Fixing.
BE 24	Cover, Striker, Tailgate Lock	A075U0587ZC	*	*	*	*	1
BE 25	Striker, Tailgate Lock	C075U0173ZA	*		*	*	1
Not Illus.	Striker, Tailgate Lock	A083U1228F		*	*	*	1
BE 26	Gasket, Striker Plate to Glass	B075U0395ZL	*		*	*	1
BE 27	Stiffening Bracket, Drain Channel	A075U0443ZG	*	*	*	*	1
BE 28	Cover, Tailgate Lock	A075U0454ZG	*		*	*	1
BE 29	Lock, Tailgate	A075U0363ZA	*		*	*	1
Not Illus.	Lock, Tailgater c/w Keys	A083U6093F		*	*	*	1
Not Illus.	Release Lever	A083U1225K		*	*	*	1
Not Illus.	Stiffener Bracket	A083U1227K		*	*	*	1
Not Illus.	Latch Mechanism, Tailgate	A083U6100F		*	*	*
BE 30	Bracket, Tailgate Lock to Body	A075U0172ZC	*		*	*	1
BE 31	Carrier Bracket, Tailgate Lock	A075U0171ZE	*		*	*	1
	Support Bracket, Tailgate Lock	A083U1226K		*	*	*	1
BE 32	Cable, Rear	C075U0184ZA	*		*	*	1
BE 33	Clevis Pin	ACY5W6030ZB	*		*	*	2
BE 34	Split Pin	A075W6005ZJ	*		*	*	2
BE 35	Bracket, Multiplying Lever, LHD	A075U0582ZL	*		*	*			1	1
	Bracket, Multiplying Lever, RHD	A075U0583ZE	*		*	*		1
	Screw, Pozi	A075W5015Z	*		*	*	2
	Washer	A075W4000ZA	*		*	*	2
BE 36	Multiplying Lever, LHD	X050B1875ZD	*		*	*			1	1
	Multiplying Lever, RHD	X050B1876WH	*		*	*		1
	Spacer, Pivot	X050B1874ZK	*		*	*	1
	Washer	A075W4005ZD	*		*	*	1
	Set Screw	A075W1027ZB	*		*	*	1
	Washer	A075W4012F	*		*	*	1
BE 37	Cable, Front	A075U0183ZG	*		*	*	1
	Grommet	X054J6007ZB	*		*	*	1
