Elite/Eclat Parts Manual -- Section BH

ELITE/ECLAT PARTS MANUAL

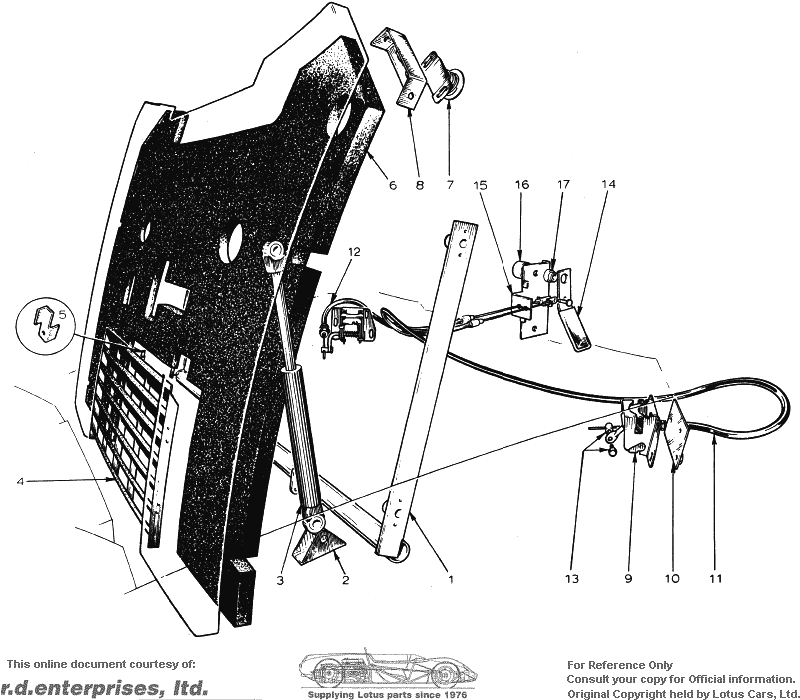

Section BH -- Body -- Bonnet


PLATE Ref. No.	DESCRIPTION	PART NO.								REMARKS
BH 1	Cross Brace Frame	D075U1102F	*		*	*	*	*	1	Part of Bonnet Assy.
	Cross Brace Frame	D076U1103F		*		*	*	*	1	Part of Bonnet Assy.
	Bobblns, Detachable, 8mm	A075B2205ZL	*	*	*	*	*	*	7
	Backing Plate, Bobbins	A075B2206ZE	*	*	*	*	*	*	4
	Pop Rivets	A075W6066ZF	*	*	*	*	*	*	16
	Set Screws, 8mm	A075W1043ZE	*	*	*	*	*	*	4
	Set Screws, 10 UNF	A075W1000ZK	*	*	*	*	*	*	4
	Nyloc Nuts, 10 UNF	A075W3000ZD	*	*	*	*	*	*	4
	Washers	A075W4000ZA	*	*	*	*	*	*	8
BH 2	Bracket, Gas Strut Mounting	D075U0408F	*		*	*	*	*	1
	Spacer, Gas Strut	B075U0499ZE	*		*	*	*	*	2
BH 3	Gas Strut	A075U6032ZE	*		*	*	*	*	1
	Tack Nut	A075W3031ZE	*		*	*	*	*	2
	Set Screw, 6mm	A075W1082Z	*		*	*	*	*	2
	Set Screw, 8mm	A075W1040ZA	*		*	*	*	*	2
	Nyloc Nut, 8mm	A075W3010ZK	*		*	*	*	*	2
	Washer	A075W4020ZB	*		*	*	*	*	8
	Nyloc Nut, 6mm	A075W3009ZE	*		*	*	*	*	2
	Washer	A075W4013ZL	*		*	*	*	*	2
Not Illus.	Bonnet Lid Stay	B076U1062K		*			*	*	1
BH 4	Grille, Air Exit	B075U0317F	*	*	*	*	*	*	1
BH 5	Bracket, Grille Mounting, Front	A075U0624ZC	*	*	*	*	*	*	1
BH 6	Sound Insulation	A075V0636Z	*	*	*	*	*	*	1
BH 7	Striker, Bonnet Lock	A075U0632WJ	*	*	*	*	*	*	2
BH 8	Mounting Bracket, Striker, LH	D075U0275ZL	*	*	*	*	*	*	1
	Mounting Bracket, Striker1 RH	D075U0276ZE	*	*	*	*	*	*	1
	Screw, Pozi, 8mm	AO75W5094ZF	*	*	*	*	*	*	4	Mtg. Bracket to Bonnet.
	Washer	A075W4020ZB	*	*	*	*	*	*	4	Mtg. Bracket to Bonnet.
	Spring Washer	A075W4048ZK	*	*	*	*	*	*	4	Mtg. Bracket to Bonnet.
	Set Screw, 8mm	A075WI036ZC	*	*	*	*	*	*	4	Striker to Bracket.
	Nyloc Nut	A075W3010ZK	*	*	*	*	*	*	4	Striker to Bracket.
	Washer	A075W4020ZB	*	*	*	*	*	*	4	Striker to Bracket.
BH 9	Lock, Bonnet	X050B6032W	*	*	*	*	*	*	2
BH 10	Plate, Bonnet Lock	A050B1338ZD	*	*	*	*	*	*	2
	Set Screw	A075W1005ZB	*	*	*	*	*	*	6
	Gasket, Bonnet Lock	A075U0550ZE	*	*	*	*	*	*	2
BH 11	Cable, Bonnet Lock, Long	BO75U0319ZE	*	*	*	*	*	*	1
BH 12	Cable, Bonnet Lock, Short	B075U0324ZH	*	*	*	*	*	*	1
BH 13	Trunnion	B050B6160F	*	*	*	*	*	*	2
	Cable Clip, Long Cable Support	A075W6052ZB	*	*	*	*	*	*	1
BH 14	Multiplying Lever	D075U0321K	*	*	*	*	*	*	1
	Grip, Multiplying Lever	A075U1173F	*	*	*	*	*	*	1
BH 15	Bracket, Multiplying Lever	A075U0320ZF	*	*	*	*	*	*	1
BH 16	Plain Spacer	A075U0498ZG	*	*	*	*	*	*	2
BH 17	Shouldered Spacer	A075U0497ZB	*	*	*	*	*	*	1
	Plain Washer	A075W4016ZD	*	*	*	*	*	*	2
	Bolt, 6 x 35 mm	A075W2029ZJ	*	*	*	*	*	*	1
	Plain Washer	A075W4015ZK	*	*	*	*	*	*	1
	Clevis	A075W6034ZL	*	*	*	*	*	*	1
	Split Pin	A075W6007ZH	*	*	*	*	*	*	1
	Bolt, 6 x 25 mm	A075W2027ZK	*	*	*	*	*	*	1
	Bonnet Earth Lead	A075M0254Z	*	*	*	*	*	*	1
