ELITE/ECLAT PARTS MANUAL

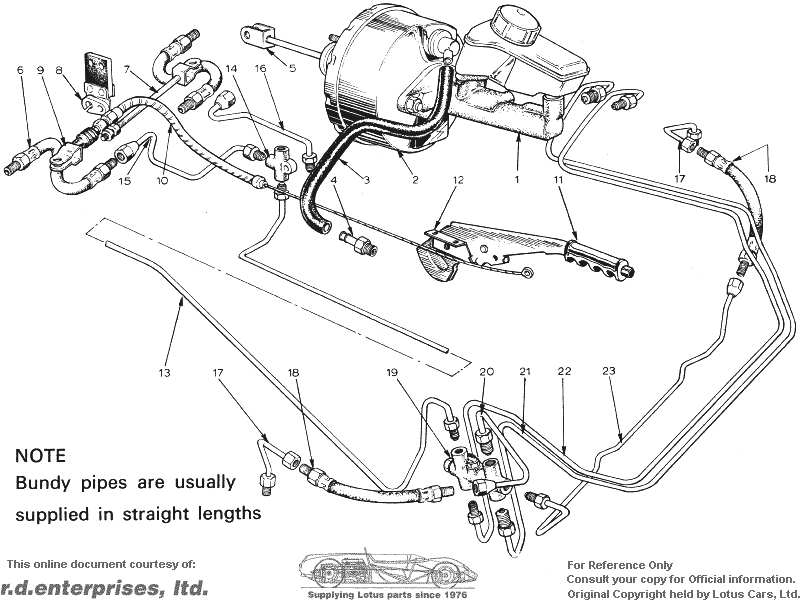

Section JB -- Brakes -- Servo, Master Cylinder, Pipes & Handbrake


PLATE Ref. No.	DESCRIPTION	PART NO.											REMARKS
JB 1	Brake Master Cylinder Assembly (illus)	A075J6051SF	*	*			*	*	1				Type TVCV 0.875", Up *?
	Reservoir	A075J6052SL	*	*			*	*	1				Up *?
	Filler Cap, Reservoir	A074J6052ZG	*	*			*	*	1				Up *?
	Service Kit, Master Cylinder	A075J6050SA	*	*			*	*	1				Up *?
JB 2	Servo Assembly, Type 38 (7" dia pot)	A075J6031ZL	*				*	*		1	1		Stage 1 Body only, Up *?
	Servo Assembly, Type 38 (7" dia pot)	A075J6031ZL	*	*			*	*				1	Up *?
	Servo Assembly, Type 50 (8½" dla pot)	A075J6080F	*				*	*		1	1		Stage 2 Body only, Up *?
	Servo Assembly, Type 50 (8½" dia pot)	A075J6080F		*			*	*		1	1		Up *?
	Brake Master Cylinder Assembly (reservoir secured with pins)	A075J6083F	*	*	*	*	*	*	1				Type AS/AS 0.875", From *?
	Reservoir	A075J6085F	*	*	*	*	*	*	1				From *?
	Filler Cap, Reservoir	A075J6086F	*	*	*	*	*	*	1				From *?
	Service Kit, Master Cylinder	A075J6084F	*	*	*	*	*	*	1				From *?
JB 2	Servo Assembly, Type 38 (7" dia pot)	A075J6031ZL	*	*	*	*	*	*				1	Also Canada, Australia, Japan, Puerto Rico, Sweden, From *?
	Servo Assembly, Type 50 (8½" dia pot)	A075J6080F	*	*	*	*	*	*		1	1		From *?
	Gasket, Servo to Body	B075J0274Z	*	*			*	*	1
	Service Kit, Servo	A075J6033SD	*	*			*	*	1
	Non-return Valve Kit	A075J6081F	*	*			*	*	1
	Nut, Master Cylinder/Servo, Servo/Pedal Box	A075W3015ZB	*	*	*	*	*	*	6
	Washer, Master Cyllnder/Servo, Servo/Pedal Box	A075W4044ZA	*	*	*	*	*	*	6
	Jumper lead, AS/AS Master Cylinder RHD	A075M0331F	*	*			*	*		1
	Jumper Lead, AS/AS Master Cylinder LHD	A075M0332F	*	*			*	*			1	1
	Servo Heat Shield	AX75J0312F	*	*	*	*	*	*				1	1975 Spec onwards
	Grommet	AX75J6007Z	*	*	*	*	*	*				2
JB 3	Vacuum Hose, RHD	B075J0276K	*	*	*		*	*		1			33" long
	Vacuum Hose, LHD	B075J0275K	*	*	*		*	*			1	1	25" long
	Vacuum Hose,	BX75J0309K				*	*	*	1				28" long
	Clip	X054J6026Z	*	*	*	*	*	*	1
JB 4	Manifold Adaptor, Vacuum	A074E0367ZJ	*	*	*	*	*	*	1
	Hose Clips	X054J6028ZH	*	*	*	*	*	*	2
JB 5	Clevis, Adjustable, Servo Actuating Rod	B075J0293ZE	*	*	*	*	*	*	1
	Locknut	A075W3026ZB	*	*	*	*	*	*	1
JB 6	Hose, Rear, Armoured	C075J6016ZB	*	*	*	*	*	*	2				One used on single pipe *? system
	Locknut	A075J6017ZG	*	*	*	*	*	*	2
	Gasket, Washer, Hose/Wheel Cylinder	A075J6020F	*	*	*	*	*	*	1
JB 7	Reaction Rod	A075J0262ZL	*	*	*	*	*	*	1
	Nut, Rod to Flex Strap	A075W3021ZKL	*	*	*	*	*	*	2
	Washer Plain	A075W4020ZB	*	*	*	*	*	*				2
	Washer Spring	A075W4032ZG	*	*	*	*	*	*				2
JB 8	Flexible Strap	A075J0767F	*	*	*	*	*	*				1
	Plate, Flexible Strap	A007J4106ZH	*	*	*	*	*	*				1
	Set Screw, Strap to Chassis	A075W1030ZL	*	*	*	*	*	*				2
	Nut	A075W3020ZE	*	*	*	*	*	*				2
	Washer, Plain	A075W4014ZL	*	*	*	*	*	*				2
	Washer, Spring	A075W4035ZL	*	*	*	*	*	*				2
JB 9	Clevis, Handbrake Cable to Wheel Cylinder	A007J6017ZB	*	*	*	*	*	*				1
	Pin, Clevis, Cable/Rod to Wheel Cylinder	A075W6031Z	*	*	*	*	*	*				2
	Spring Clip, Clevis Retaining	A075W6175F	*	*	*	*	*	*				2
JB 10	Handbrake Cable Assembly	C075J0291WJ	*	*	*	*	*	*				1
	Pin, Clevis, Lever to Cable	A075J6039ZG	*	*	*	*	*	*				1
	Spring Clip, Clevis retaining	A075W6175F	*	*	*	*	*	*				1
JB 11	Handbrake Lever Assembly	B075J6008Z	*	*	*	*	*	*				1
JB 12	Mounting Bracket, Lever, RH	B075J0260ZA	*	*	*	*	*	*				1
	Mounting Bracket, Lever, LH	B075J0259ZL	*	*	*	*	*	*				1
	Set Screw	A075W1038ZB	*	*	*	*	*	*				4
	Washer, Plain	A075W4020ZB	*	*	*	*	*	*				4
	Washer, Spring	A075W4032ZG	*	*	*	*	*	*				4
JB 13	Bundy Pipe, ] 00" (PDWA to rear 3 way)	A075J0271ZA	*	*			*	*	1				Not used on slngie plpe r *? system
	Bundy Pipe (PDWA to rear Hose)	A075J0323	*	*			*	*	1				Used on single pipe rear ? system up to unlt no's 1177A, 501B1 193C, *? 493D, 349E & 151F, inc.
	Bundy Pipe, Rear Hose to In-Line Conn	A075J0343F	*	*	*	*	*	*	1				From unit no's 1178A, ? 502B, 194C, 494D, 350E ? and 152F, inc.
JB 14	Union, 3 way	A075J6019ZF	*	*			*	*	1
	Gasket, 3/8" UNF	A074J6020ZA	*	*			*	*	2
JB 15	Bundy Pipe, 17½", 3 way to flex Hose Rear, RH	A075JO272F	*	*			*	*	1				Not used on single pipe r *? system
Not Illus.	Bundy Pipe, LH to RH Wheel Cylinder	A075J0324F	*	*			*	*	1				Single Pipe rear system, ? up to unit no's 1177A, ? 501B, 193C, 493D, 349E *? & 151F, inc.
Not Illus.	Bundy Pipe, LH to RH Wheel Cylinder	A075J0334F	*	*	*	*	*	*	1				From unit no's 1178A, 50 ? 194C, 494D~ 350E & 152 ? inc.
JB 16	Bundy Pipe, 8½", 3 way to Flex Hose	A075J0273ZL	*	*			*	*	1				Not used on single Pipe *? rear system
Not lllus.	Bundy Pipe, RH Wheel Cylinder to Remote Bleed	A075J0325F	*	*			*	*	1				Single Pipe rear system up ? to unit no's 1177A, 501B, ? 193C, 493D, 349E & *? l5lF, inc.
Not Illus.	Bundy Pipe, RH Wheel Cylinder to Remote Bleed	A075J0335F	*	*	*	*	*	*	1				From unit no's 1178A, 5 ? 194C, 494D, 350E & 151 ? inc.
	Adaptor, Bundy Pipe to Nipple	A075J6040F	*	*	*	*	*	*	1				From unit no's 1178A, 5 ? 194C, 494D, 350E & 151 ? inc.
JB 17	Bundy Pipe, Front Hose to Caliper	A075J0298ZD	*	*			*	*	2				Not fitted to 520. Up t ? unit no's 1177A, 501B, 1 ? 493D, 349E & 151F inc.
	Bundy Pipe, Front Hose to Caliper	A075J0220Z	*	*			*	*	2				Fitted to 520 only. Up to ? unit no's 493D, 349E, 15 ?
	Bundy Pipe, Front Hose to Caliper	A075J0336F	*	*	*	*	*	*	2				Not fitted to 520. From ? unit no's 1178A 502B, 19 ? 494D & 152F.
	Bundy Pipe, Front Hose to Caliper	A075J0332F		*			*	*				2	Fitted to 520 only. From *? unit no. 350E.
	Bracket, Anchor, Hose to Caliper	A075C6008Z	*	*	*	*	*	*	2
JB 18	Front Hose, Armoured	B075J6015F	*	*	*	*	*	*	2
	Locknut	A075J6017ZG	*	*	*	*	*	*	2
JB 19	Pressure Differential Warning Actuator	A075J6014ZC	*	*			*	*	1				Up to unit no's 1177A, 5 ? 193C, 493D, 349E & 151 ? inc.
	Service Kit, PDWA	A075J6075SF	*	*			*	*	AR				Up to unit no's 1177A, 5 ? 193C, 493D, 349E & 151 ? inc.
	Extension Lead	A075M0327F	*	*			*	*	1				Up to unit no's 1177A, 5 ? 193C, 493D, 349E & 151 ? inc.
JB 20	Bundy Pipe, 8", PDWA to Front Hose, RH	A075J0268ZH	*	*			*	*	1				Up to unit no's 1177A, 5 ? 193C, 493D, 349E & 151 ? inc.
JB 21	Bundy Pipe, Master Cylinder/PDWA, Front, RHD	A075J0310FH	*	*			*	*		1			Up to unit no's 1177A, 50 ? 193C, 493D, 349E & 1511 ? inc.
	Bundy Pipe, Master Cyllnder/PDWA, Front, LHD	A075JO267ZC	*	*			*	*			1	1	Up to unit no's 1177A, 50 ? 193C, 493D, 349E & 1511 ? inc.
JB 22	Bundy Pipe, Master Cylinder/PDWA, Rear, RHD	A075J0311FB	*	*			*	*	1				Up to unit no's 1177A, 50 ? 193C, 493D, 349E & 1511 ? inc.
	Bundy Pipe, Master Cylinder/PDWA, Rear, LHD	A075J0265ZD	*	*			*	*			1	1	Up to unit no's 1177A, 50 ? 193C, 493D, 349E & 1511 ? inc.
Not Illus.	Bundy Pipe, Master Cylinder/3 way Conn, RHD	A075J0339F	*	*	*	*	*	*		1			From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	Bundy Pipe, Master Cylinder/3 way Conn, LHD	A075J0344F	*	*	*	*	*	*			1	1	From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	Bundy Pipe, Master Cylinder/in-line Conn, RHD	A075J0340F	*	*	*	*	*	*		1			From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	Bundy Pipe, Master Cylinder/in-line Conn, LHD	A075J0345F	*	*	*	*	*	*			1	1	From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	Bundy Pipet RH Front Hose to 3 way Connector	A075J0342F	*	*	*	*	*	*	1				From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	Bundy Pipe, LH Front Hose to 3 way Connector	A075J0341F	*	*	*	*	*	*	1				From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	In-Line Connector	A079J6020F	*	*	*	*	*	*	1				From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
Not Illus.	3 way Connector	A075J6019ZF	*	*	*	*	*	*	1				From unit no's 1178A, 50, ? 194C, 494D, 350E & 152F? inc.
JB 23	Bundy Pipe 36" PDWA to Front Hose, LH	A075J0269ZB	*	*			*	*	1				Up to unit no's 1177A, 50 ? 193C, 493D, 349E & 151 ? inc.
	Clips, Bundy Pipes	A075W6051ZH	*	*	*	*	*	*	17
	Brake Fluid, Green	A036J6109VD	*	*	*	*	*	*	AR
	Screw, Bundy Pipe Clips	A075W5011Z	*	*	*	*	*	*	17
	Clip, Plastic, Brake Pipe	A075G6027Z	*	*	*	*	*	*	1
	Washer, Shakeproof, Bundy/Brackets	A075W4044Z	*	*	*	*	*	*	12
	Tag, Brake Pipe at Diff	A075J0347F	*	*	*	*	*	*	1
	Sleeve, PVC, Pipe Clips	A036M6418V	*	*	*	*	*	*	1				0.25m length
*? - Indicates that text was missing from the document used to create this page. -- Contact the Webmaster with corrections.
